Testing your Kerberos SSO authentication setup

Testing your Kerberos SSO authentication setup

Configure Authentication in SafeSquid’s Access Restrictions

SafeSquid’s WebGUI is used to create/modify policy configuration. We can access the WebGUI from any authorized system, depending on Access Restrictions configuration section (by default ALL are allowed). To ensure that we do not get locked up, we will in the following steps configure the Access Restrictions section of SafeSquid to enable the SSO authentication, and then to enable authentication for only our Test Client windows7.safesquid.test (My client machine). You may choose AD browser for testing purpose.
My Test Client machine: windows7.safesquid.test (Connect in your domain and should able to resolve. Verify time synchronization)
We already done Preparatory Steps (Verify it once before setting proxy)

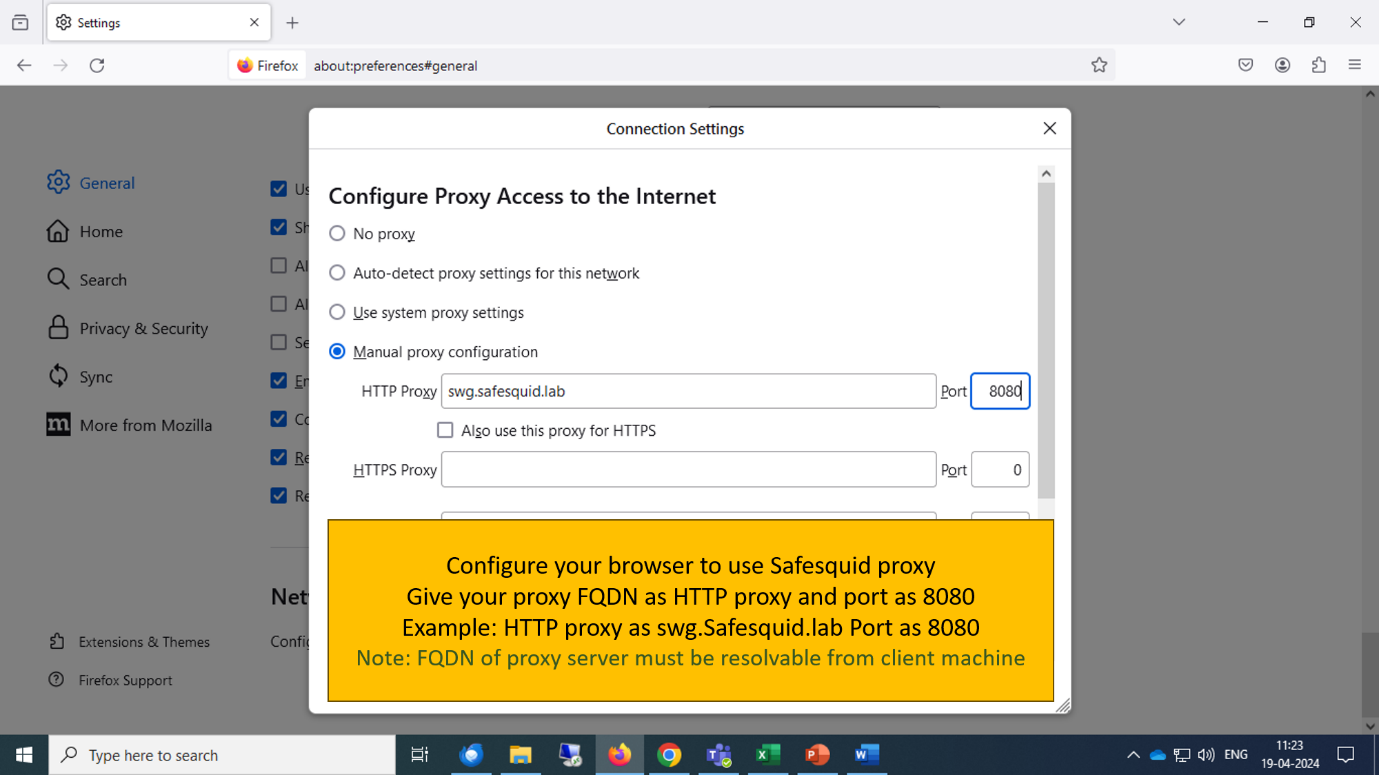

Configure your Internet browser to use sabproxy.safesquid.test : <port_usually_8080> as your proxy server.
Note:  You should NOT be using the <IP address>: <port> format now. Always use FQDN of Proxy Server
configuring your browser to use safesquid proxy by setting your FQDN and por

Access the SafeSquid User Interface

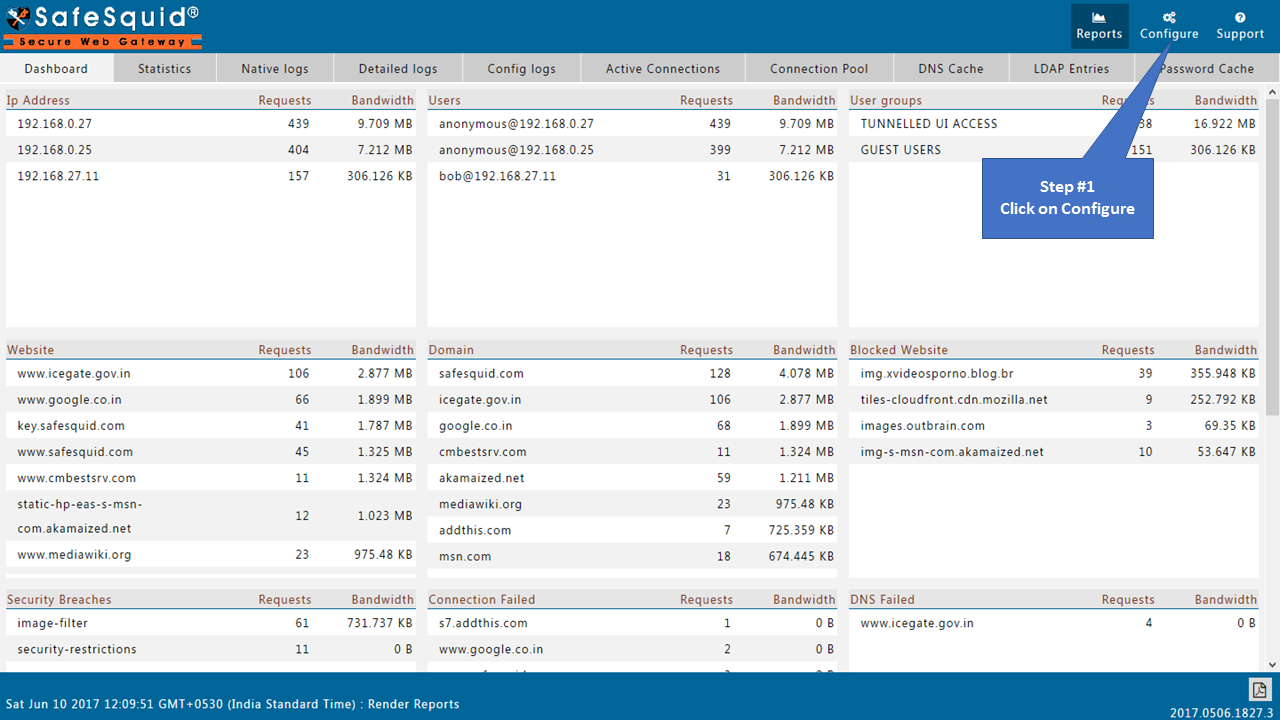

Go to Configure Page

clicking on configure in safesquid interface

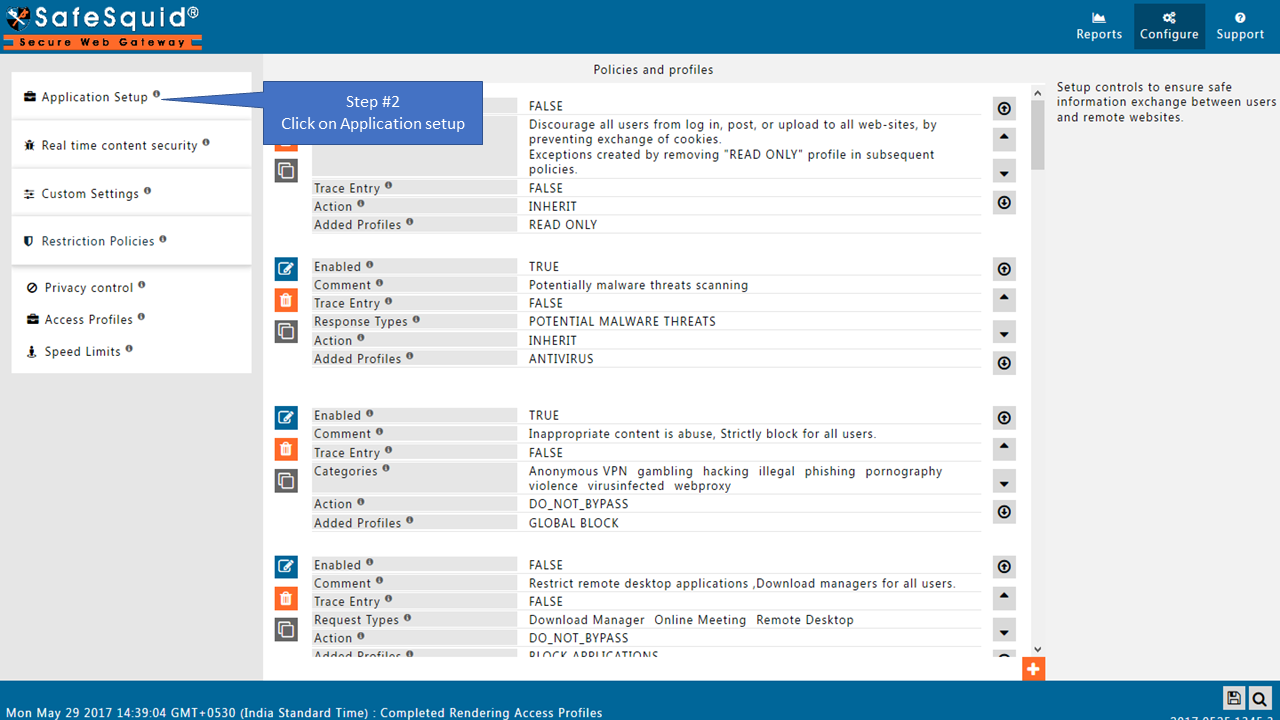

Go to Application Setup

clicking on application setup

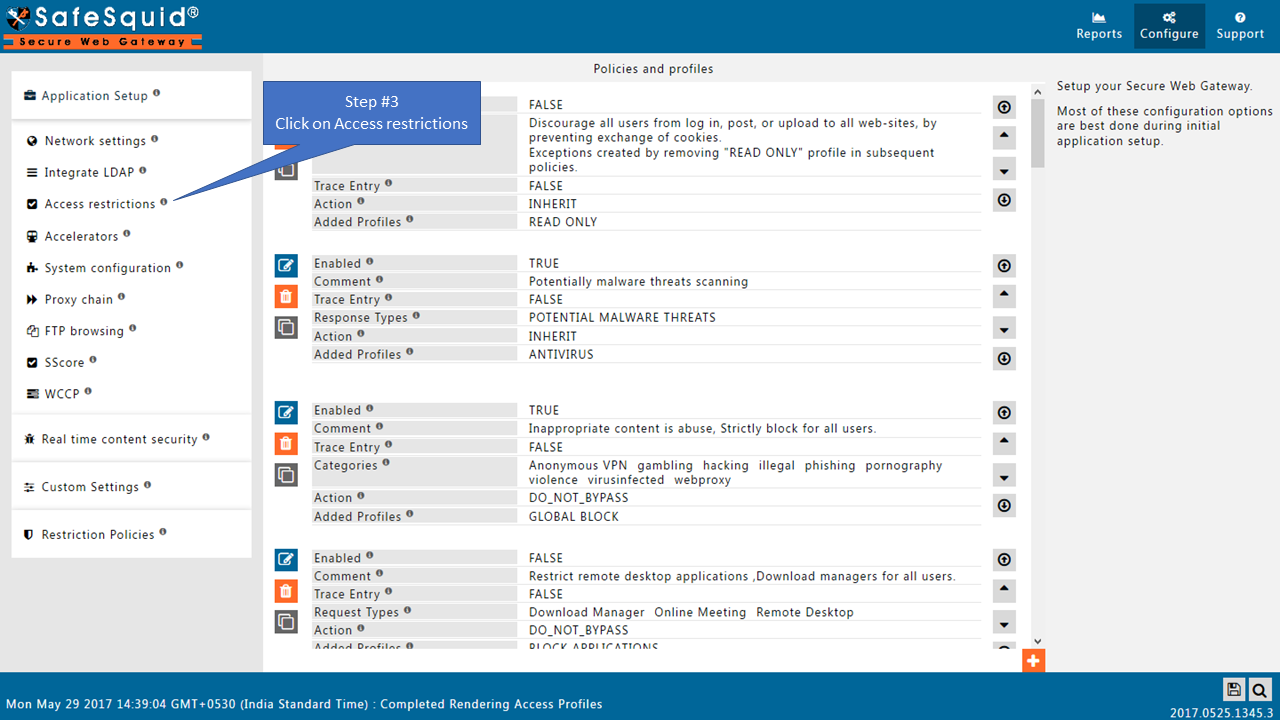

Go to Access Restrictions

going to integrate LDAP in application setup section

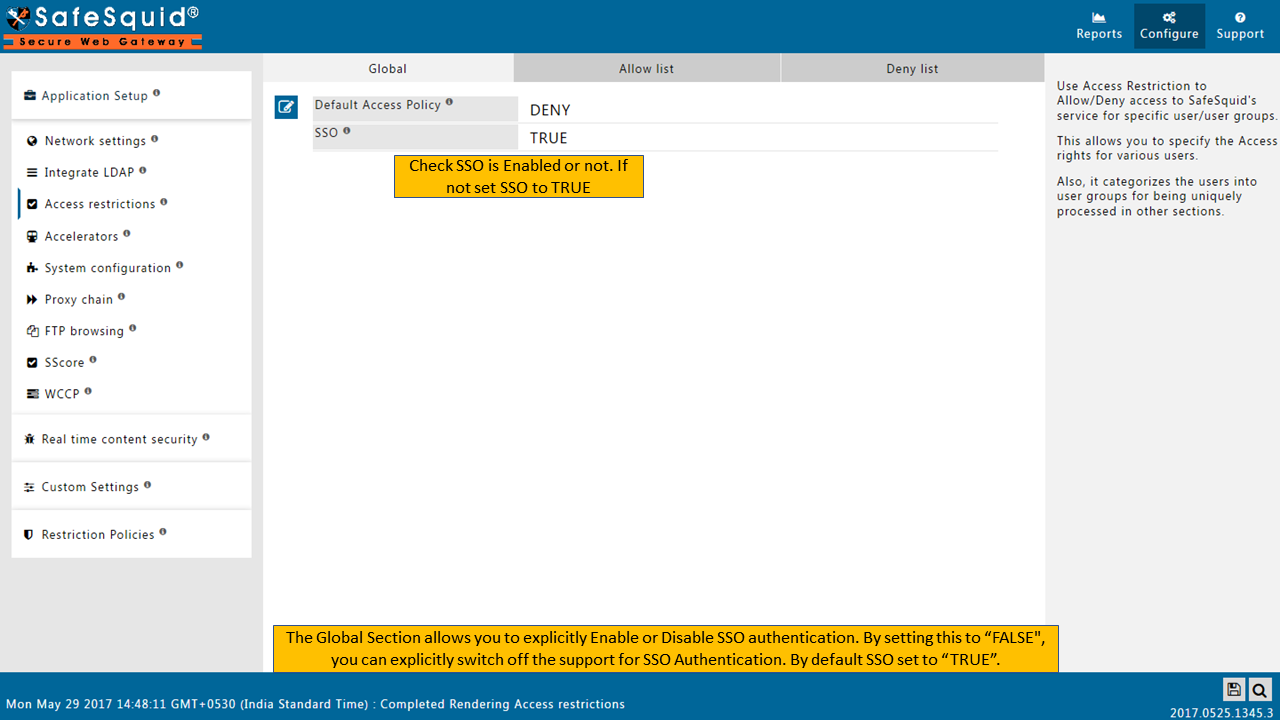

Enable SSO Authentication

Enabling SSO authentication in global section

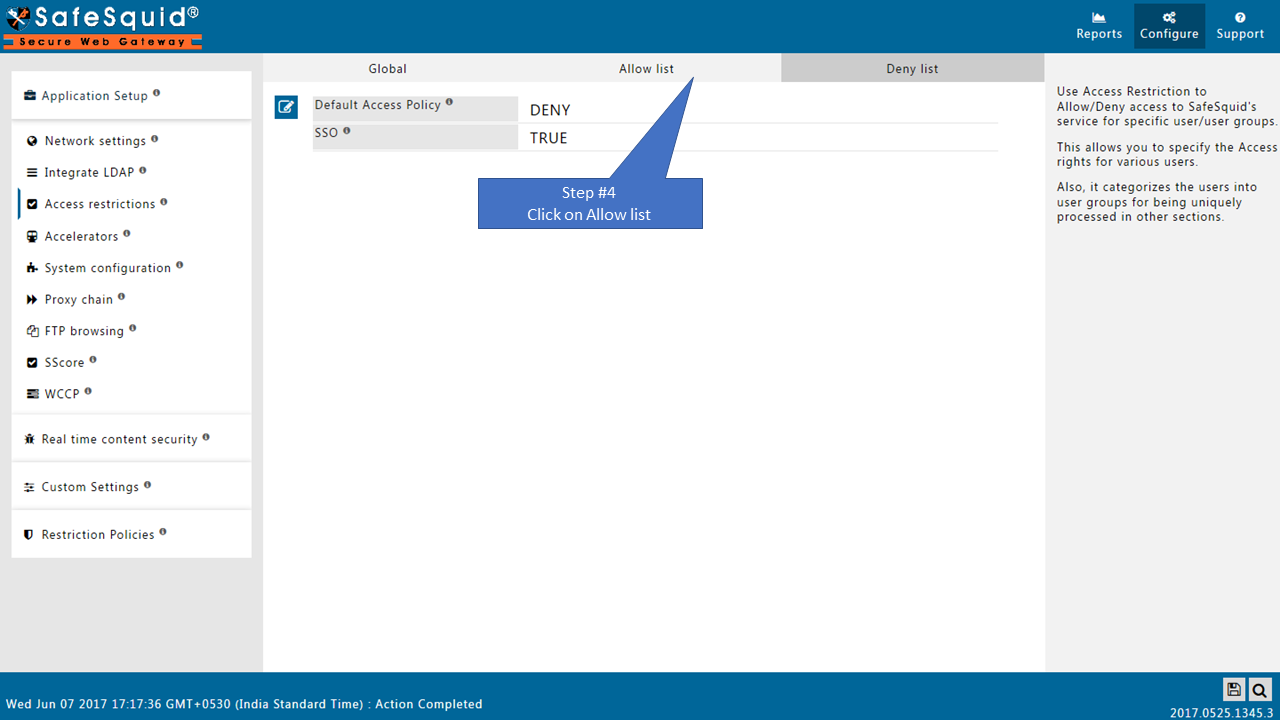

Go to Allow list

going to allow list

Change the order of Default entries

To avoid locking yourself to the SafeSquid User Interface.
See the working of each default Entry here

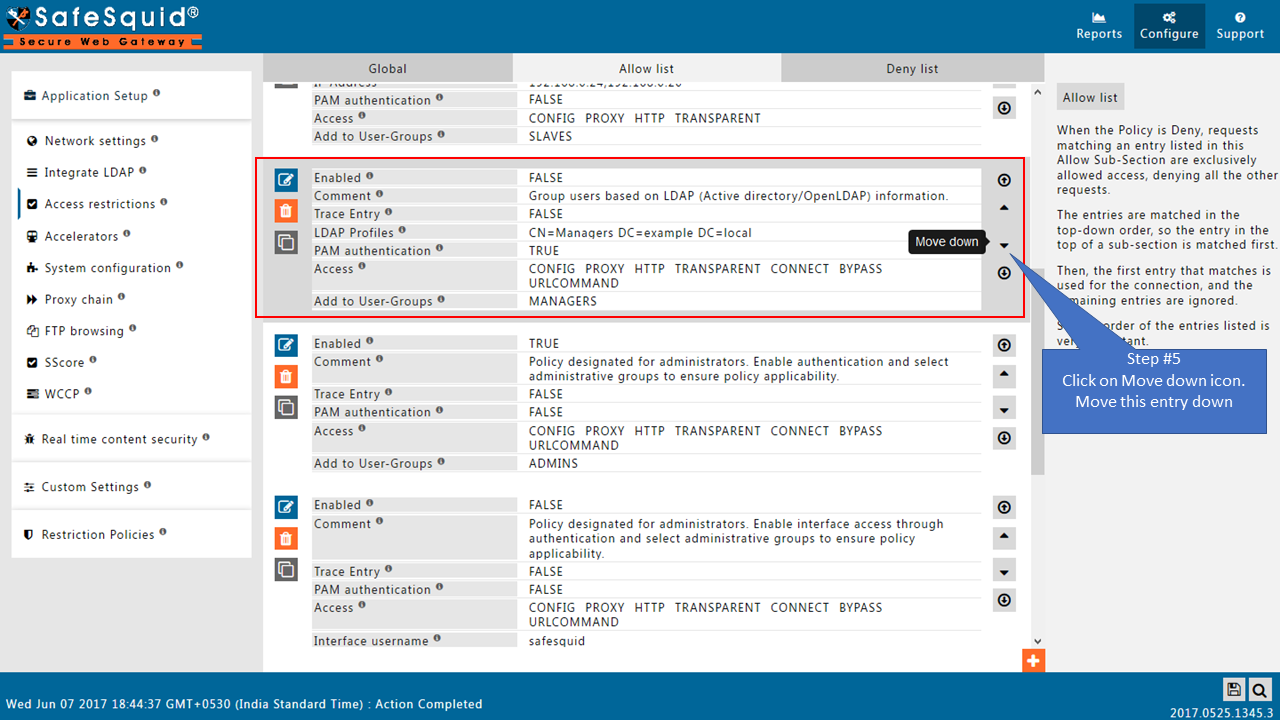

clicking on move down icon to move the entry down

Add LDAP users

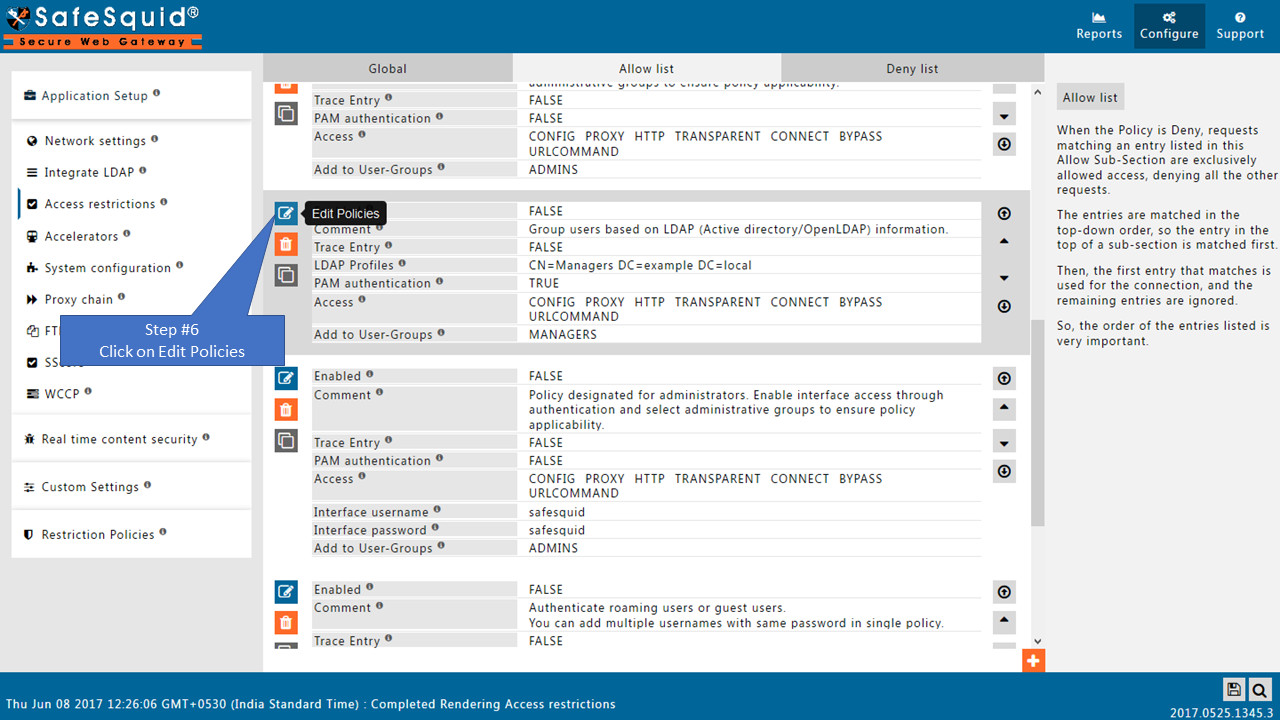

clicking on edit policies

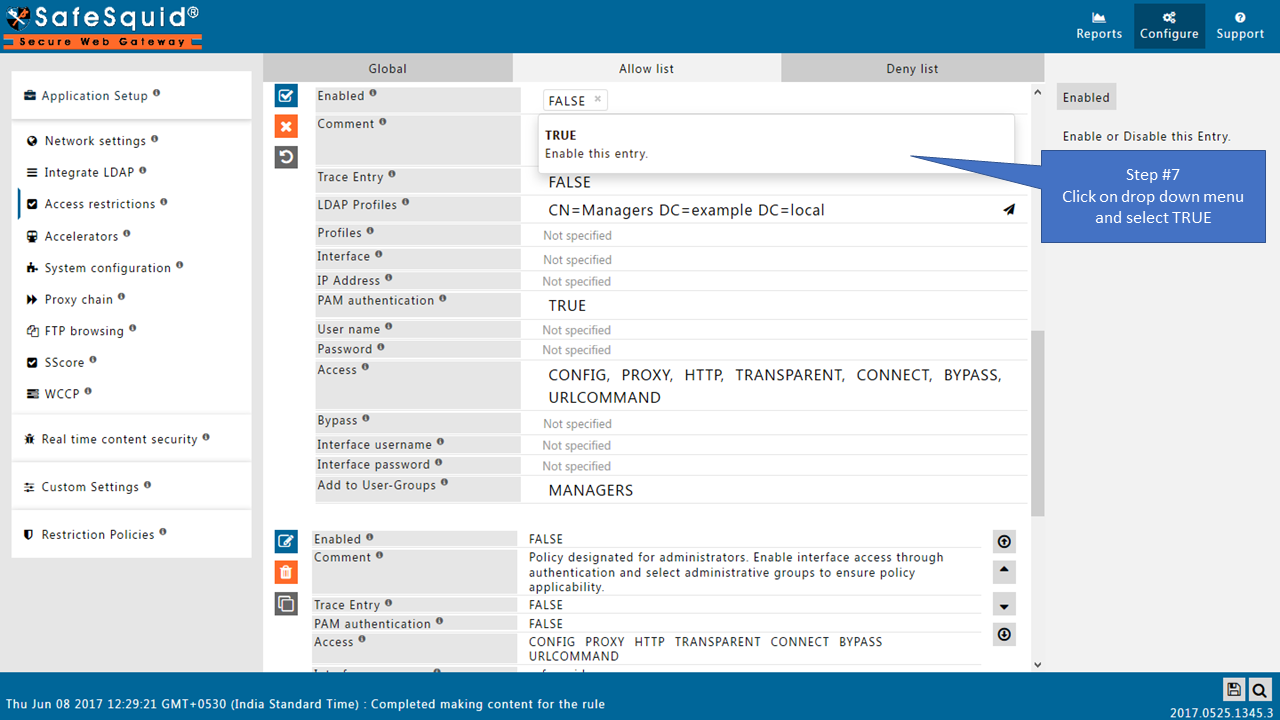

selecting true in enabled field from the drop down menu

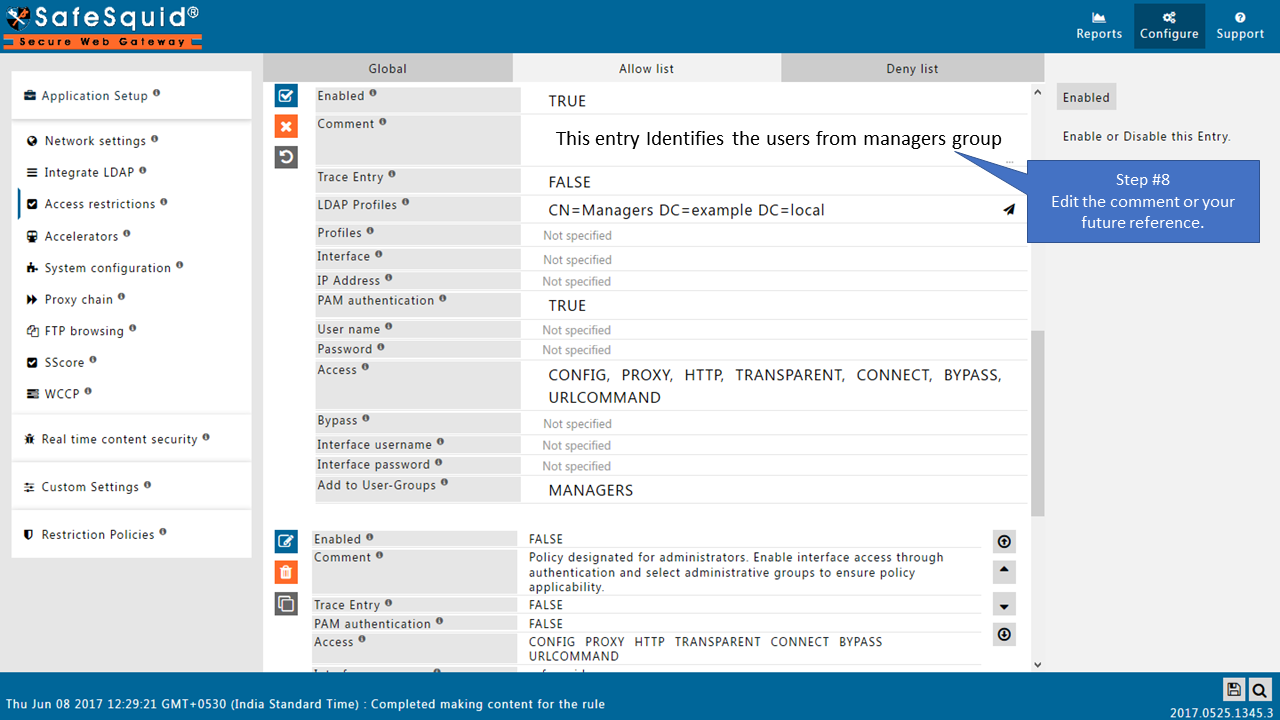

commenting for future reference
Note: If your LDAP server is not integrated then you will not see any users list in the drop-down menu.

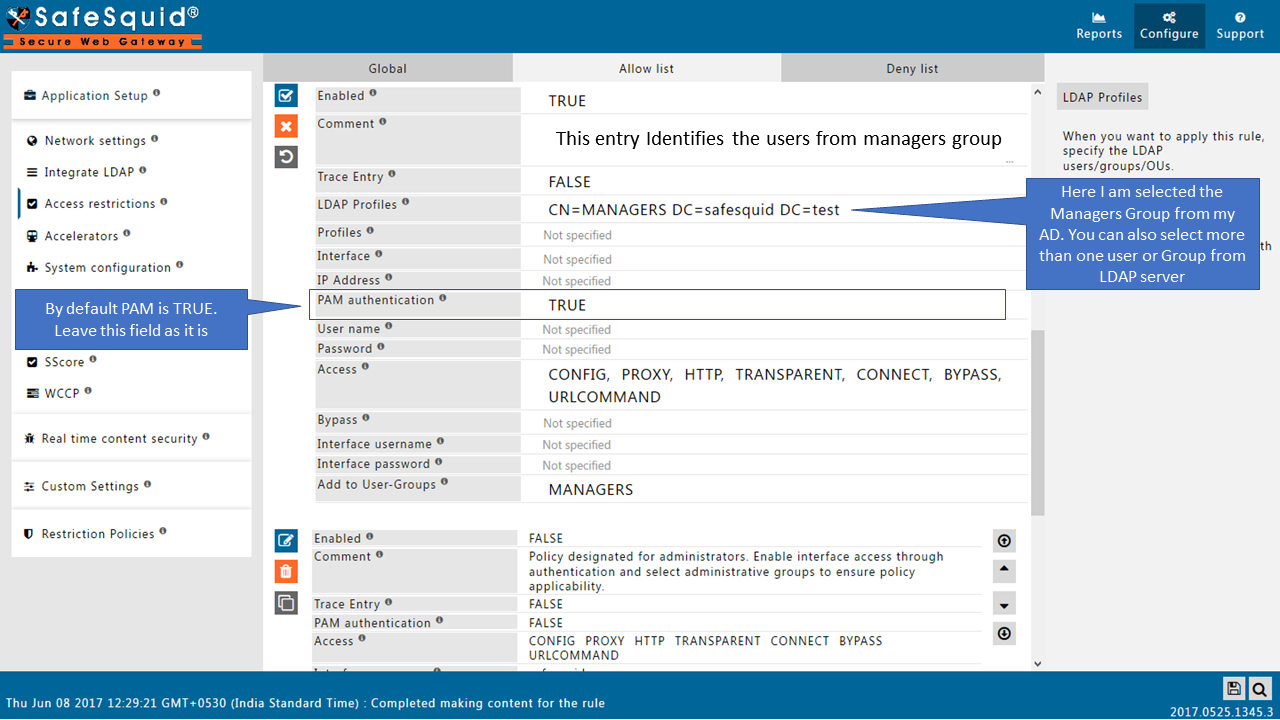

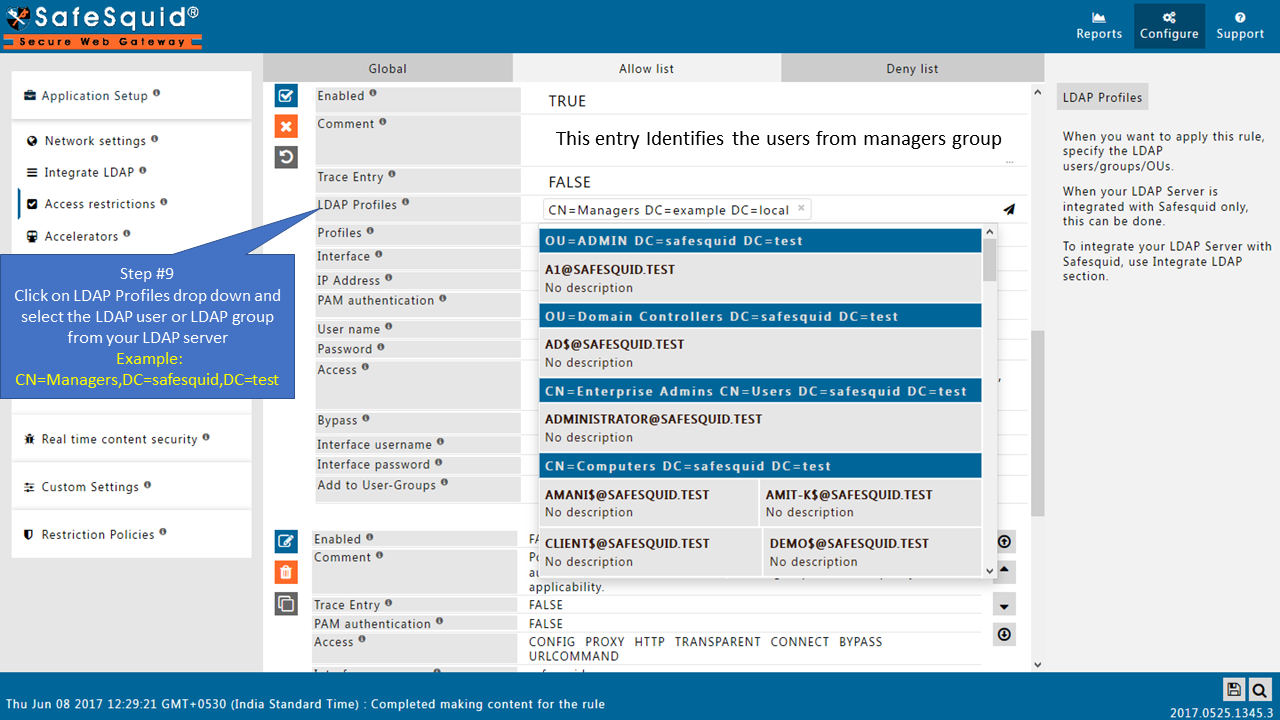

clicking on LDAP profiles and selecting the LDAP user and LDAP group from your LDAP server from the drop down menu
Here I am selecting the manager group from my AD so this policy will only applicable for the users from this group (manager group).
If you want to apply rule for all the users, then keep this entry blank.
leaving the PAM authentication field as true

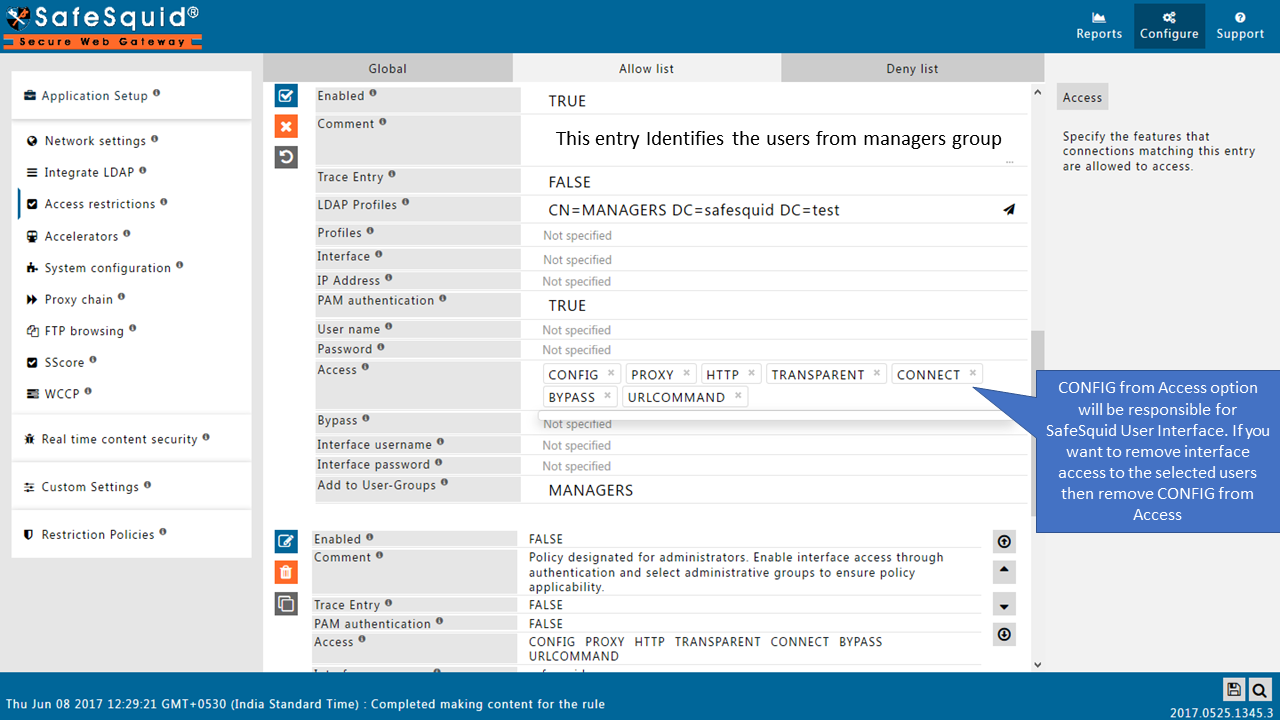

select or deselect CONFIG option for the safesquid interface access

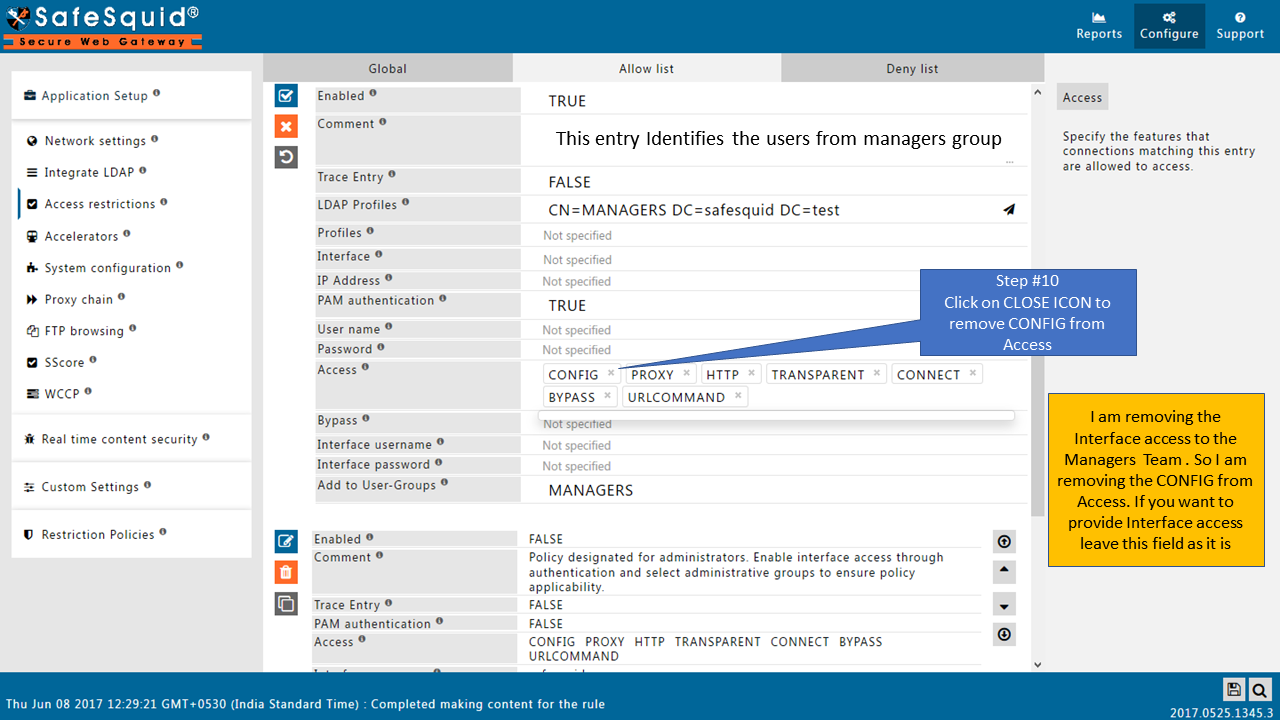

clicking on close icon to remove CONFIG from access

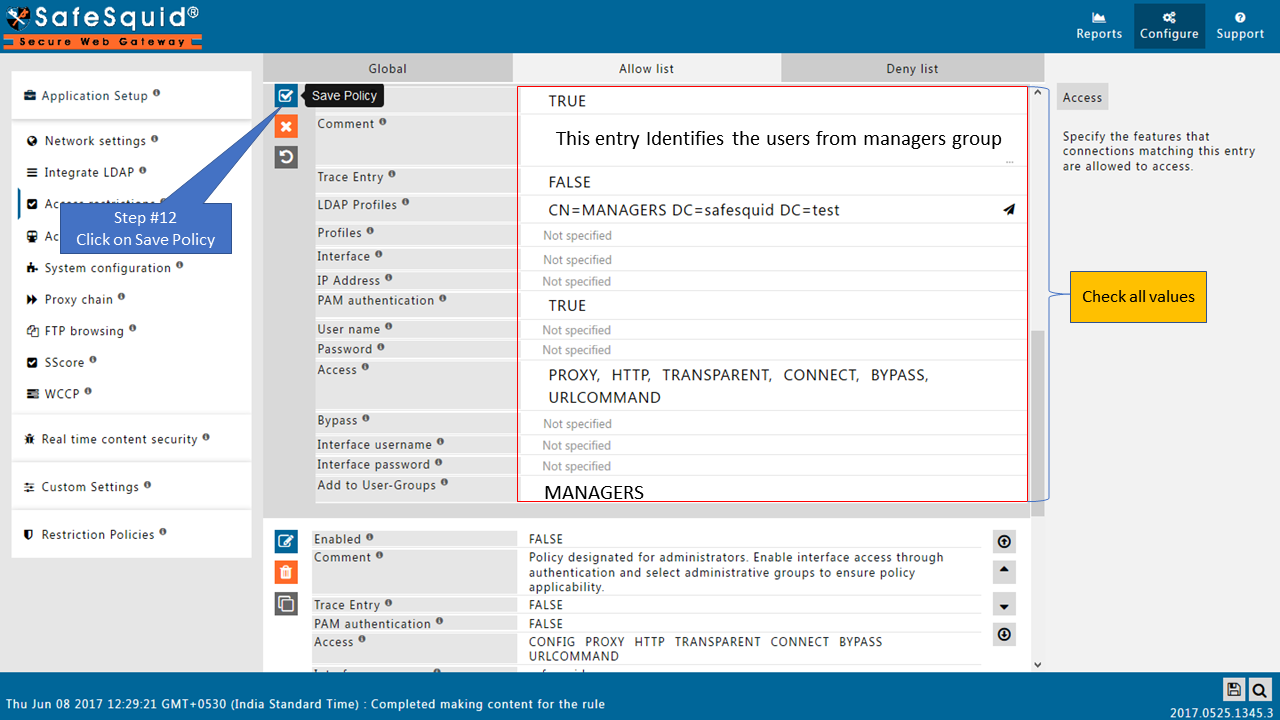

clicking on save policy
Access the internet, confirm that you can access the web the way should be. '('It should not ask you for authentication prompt)
Take a look at the output of the tail command that you had earlier left running on the Linux console.
You will see request from the user that had logged into the windows7.safesquid.test system and the user should be getting identified as <username>@<SAFESQUID.TEST>@ 192.168.221.212
On the console leave this tail command running.
  1. tail -f /opt/safesquid/safesquid/logs/extended/extended.log
Here we will be validating the SSO authentication, and the log lines here will reveal the success of our undertaken steps.
If you can confirm that, hurrah you are done!
To enable Windows Integrated authentication for the rest of your enterprise, modify the entry you created in the Access Restrictions for IP 192.168.221.212 and simply leave the IP address field blank.
