Response Types

Response Types

Overview

Use Response profiles to manage profiling based on the responses received from the webserver.
You can manage Profiling based on the following parameters present in the responses received from the webserver.
Mime
File
Content-Length
Response header pattern, etc.,

Enabling Response Profiler section on SafeSquid User Interface

Access SafeSquid interface

Go to configure page

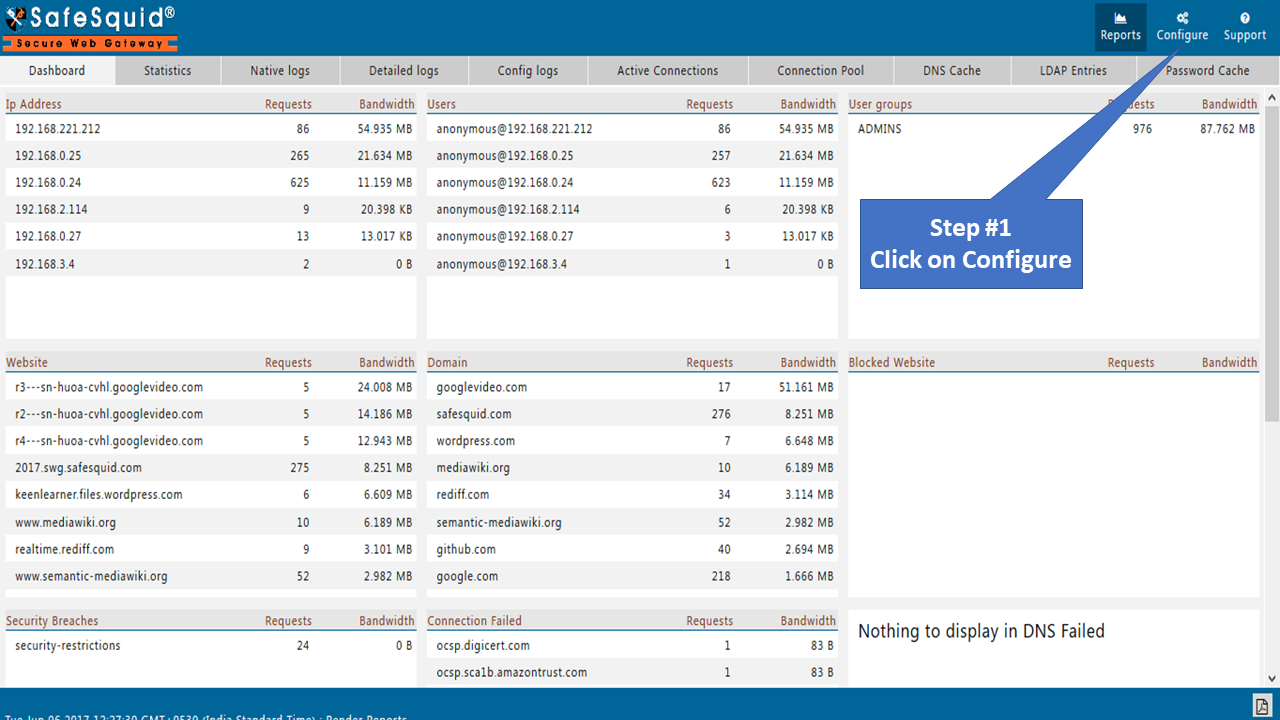

clicking on configure in safesquid interface

Go to custom settings.

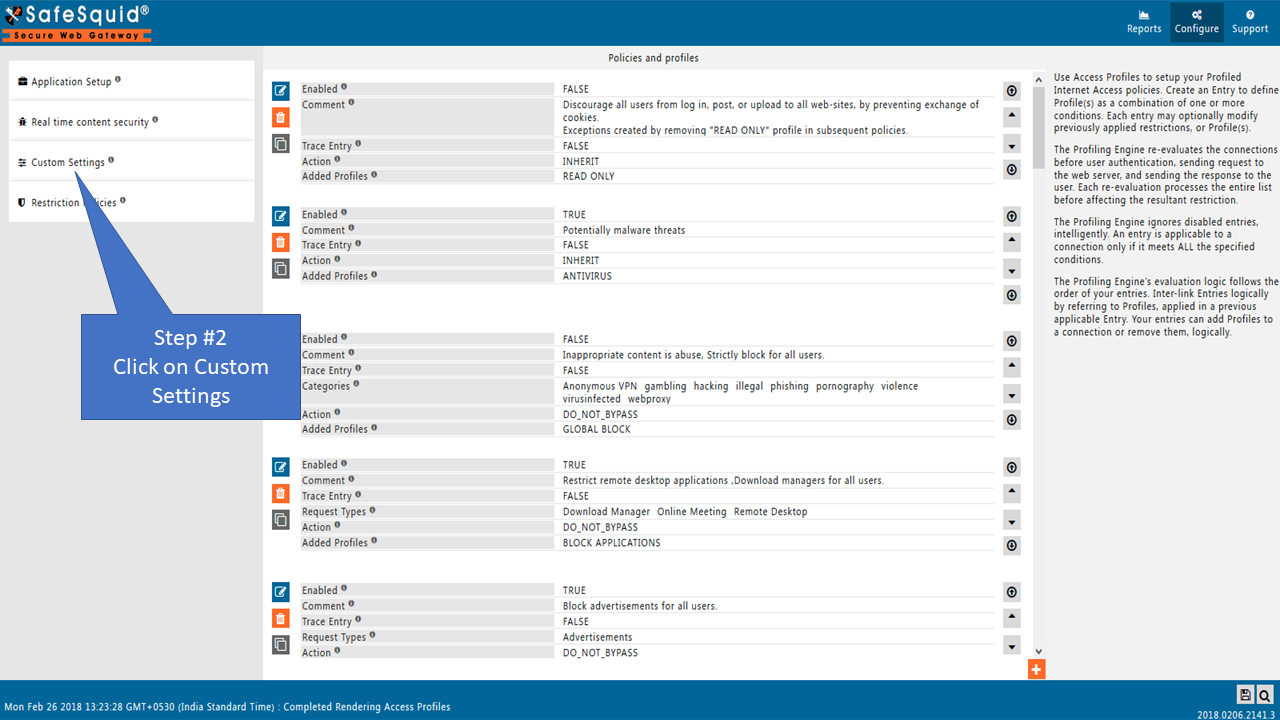

clicking on custom settings in the sidebar

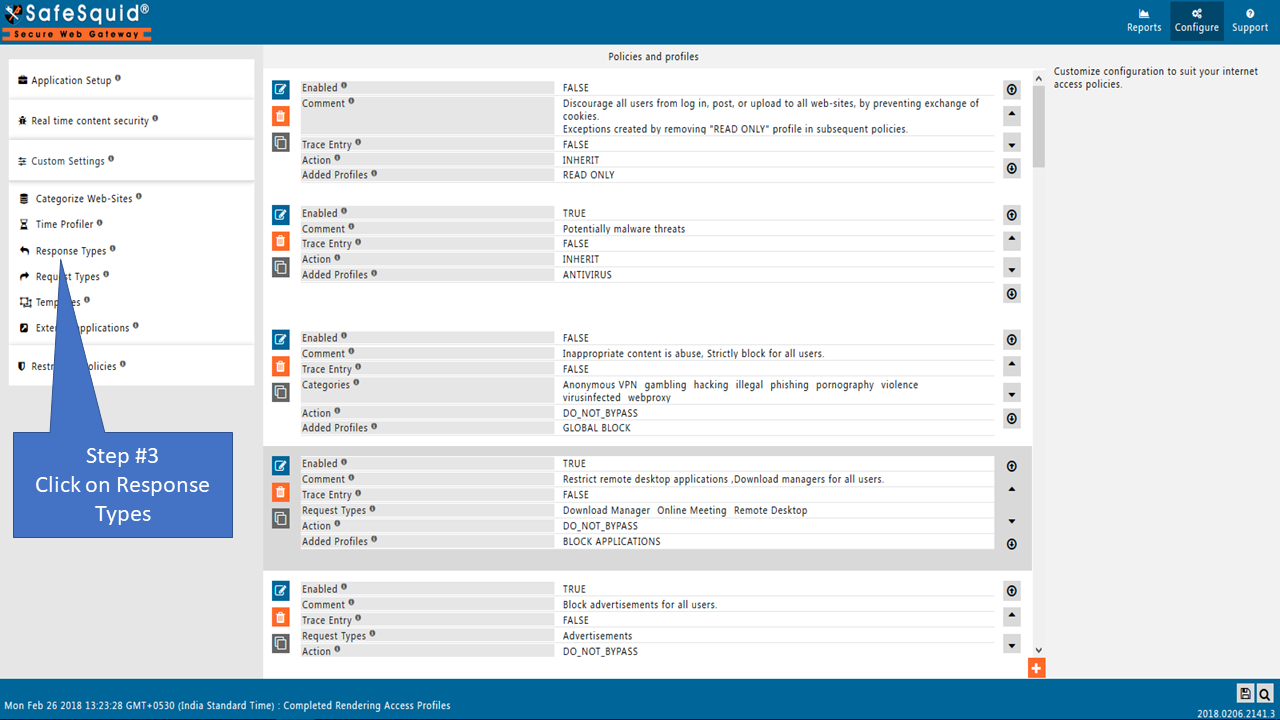

clicking on Response Types in custom settings

Global

Enabled

Enable or Disable response types section.
TRUE: Enable response types section.
FALSE: Disable response types of section.

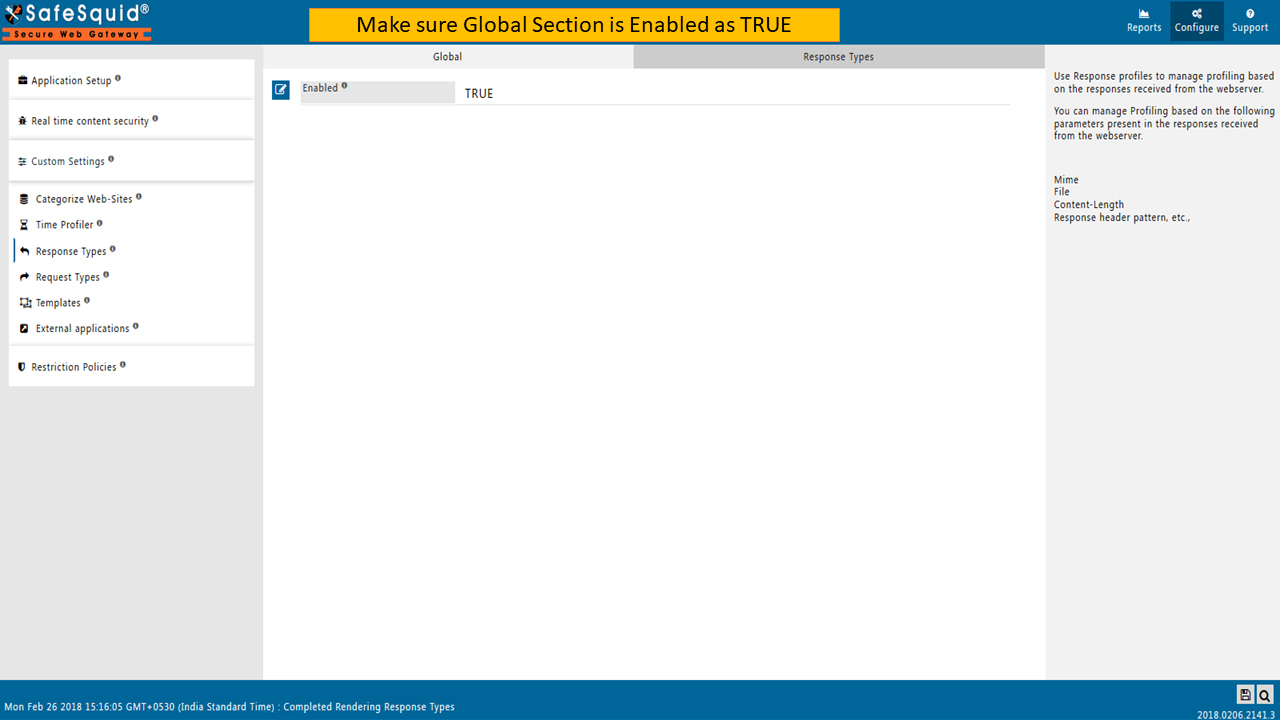

showing global section of response types

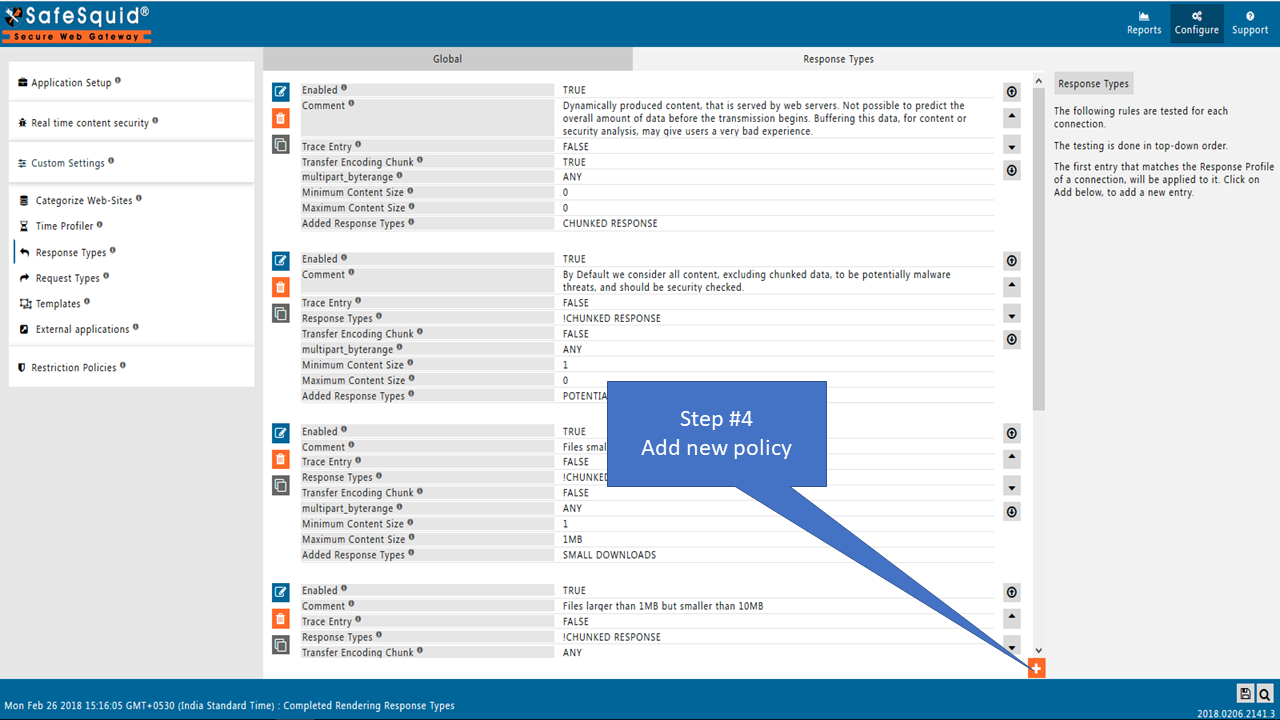

adding a new policy by clicking on add new button

Response Types

The following rules are tested for each connection.
The testing is done in top-down order.
The first entry that matches the Response Profile of a connection, will be applied to it.

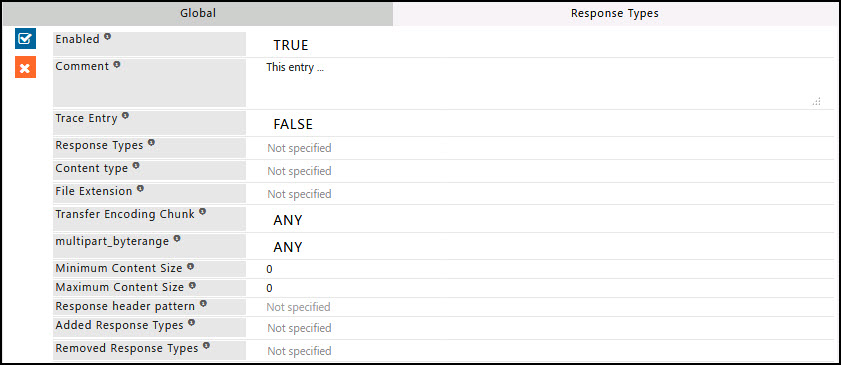

showing response Type tab in Response type section

Enabled

Enable or Disable this entry.
TRUE: Enable this entry.
FALSE: Disable this entry.
Comment
For documentation, and future references, explain the relevance of this entry with your policies.

Trace Entry

Enable or Disable Tracing of this entry
Select “Yes” to debug the application of entry using SafeSquid logs.
Enable entry tracing, is useful if you wish to validate, its application.
TRUE: Select this option to enable profile tracing.
FALSE: Select this option to disable profile tracing.

Response Types

Specify the list of Response Profile(s)for which this entry should be applicable.
Leave it Blank, to ignore this applicability test.
If one or more Response Profiles are specified, this entry will be applicable only after, response has been received from the web server.
To avoid application to a connection for specific Response Profile(s), use negation (! Response Profile).

Content type

Specify the MIME-type for which this entry should be applicable.
MIME-type is a way of identifying files on the Internet according to their nature and format.
Here, MIME-type indicates the response-body received from the server.
This entry applies to the regular expression matching the MIME-type.
Example: text/html, ^image/, ^application/, application/x-shockwave-flash.
If this entry should be applied to all responses, irrespective of MIME-type, leave it blank.

File Extension

Specify the file extensions for which this entry should be applicable.
This entry applies to the regular expression matching the extension of file(s) obtained in response body.
Leave it blank to apply all the requests, irrespective of file extension.

Transfer Encoding Chunk

This option is to control how the transfer encoding chunk header should be handled.
Example: Transfer-Encoding: chunked
ANY: Select this if transfer encoding chunked does not matter in response header.
NO: Select this if you don't want to apply profile if transfer encoding chunked present in response header.
YES: Select this if you want to apply profile if transfer encoding chunked present in response header.

multipart_byterange

This option is to control how the multi part/ byte ranges header should be handled.
Example: Content-type: multipart/x-byteranges; boundary=THIS_STRING_SEPARATES --THIS_STRING_SEPARATES
                Content-type: application/x-pdf Content-range: bytes 500-999/8000 ...the first range... --THIS_STRING_SEPARATES
                Content-type: application/x-pdf Content-range: bytes 7000-7999/8000 ...the second range... --THIS_STRING_SEPARATES--

ANY: Select this if multipart/ byterange does not matter in response header.
NO: Select this if you don't want to apply profile if multipart/ byteranges present in response header.
YES: Select this if you want to apply profile if multipart/ byteranges present in response header.

Minimum Content Size

Specify the minimum content size of the response body for which this entry is applicable.

Maximum Content Size

Specify the maximum content size of the response body for which this entry is applicable.

Response Header Pattern

Specify the regular expression matching the response header pattern for which this entry is applicable.
If left blank, applies to all response patterns.

Added Response Types

Specify the list of Response Profiles, to append to the connection’s existing Response Profiles, if the all the applicability test rules match.
Subsequent applicable Entry may further modify the connection’s Response Profiles.
Define a new Response Profile(s), or select previously defined Response Profile(s)from the drop-down menu to apply to the connection, if it matches this entry.
When defining a new Response Profile, use terms that uniquely represent your needs.

Removed Response Types

Specify the list of Response Profile(s), to remove the connection’s existing Profiles, if the all the applicability test rules match.
Subsequent applicable Entry may further modify the connection’s Response Profiles.
Select previously defined Response Profile(s)from the drop-down menu to apply to the connection, if it matches this entry.

Example

Rule#1

All files with content type macro enabled office documents to be added to a profile "ALL MACRO ENABLED DOCUMENT".
Using this response type, we can block downloads to files which are macro enabled document.
Response type is used to profile connections based on the response received from the web server.

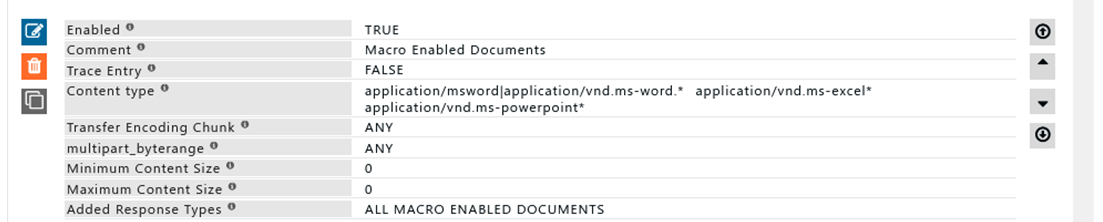

showing rule which will block micro enabled documents

Rule#2

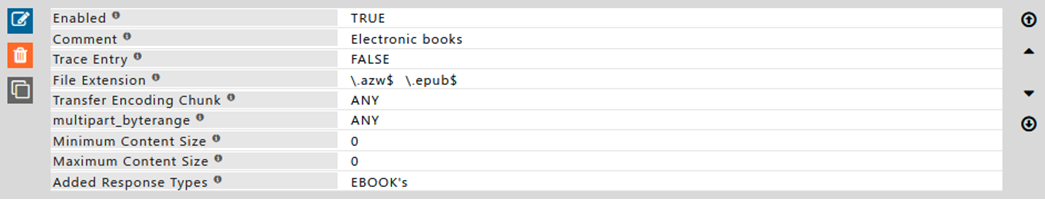

We want to block downloads of all E-book files Match all files which are of file extension. azw & .epub Matching file will be added to response type of “EBOOK’s” Using response type, we can then create policies in Access policies which will block all files with file extension .azw & .epub.

showing rule which will block response type of electronic books

Rule#3

For connections with response header Upgrade: websocket, add the response type as WebSocket All websocket connections will now be profiled as "Websocket"

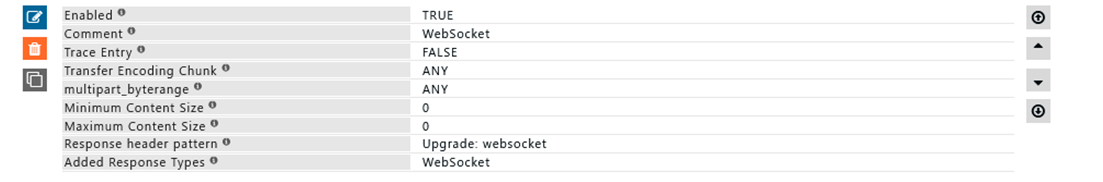

showing rule which will add the response type of websocket
