Integrate OpenLDAP With SafeSquid

Integrate OpenLDAP With SafeSquid

Overview

Here I am integrating my Active Directory with following information.
IP Address: 192.168.247.10
Domain of Active Directory: safesquid.net
Base Dn : dc=safesquid,dc=net
User Name: cn=admin,dc=safesquid,dc=net
See more about Integrate LDAP section, here we explained the working of each field in the Integrate LDAP section.

Prerequisites

Make sure that all the values (LDAP server FQDN, LDAP server IP, Username, password, base dn, domain ) in configuration are correct. If any value is wrong SafeSquid will fail to fetch the entries.

Access the SafeSquid User Interface

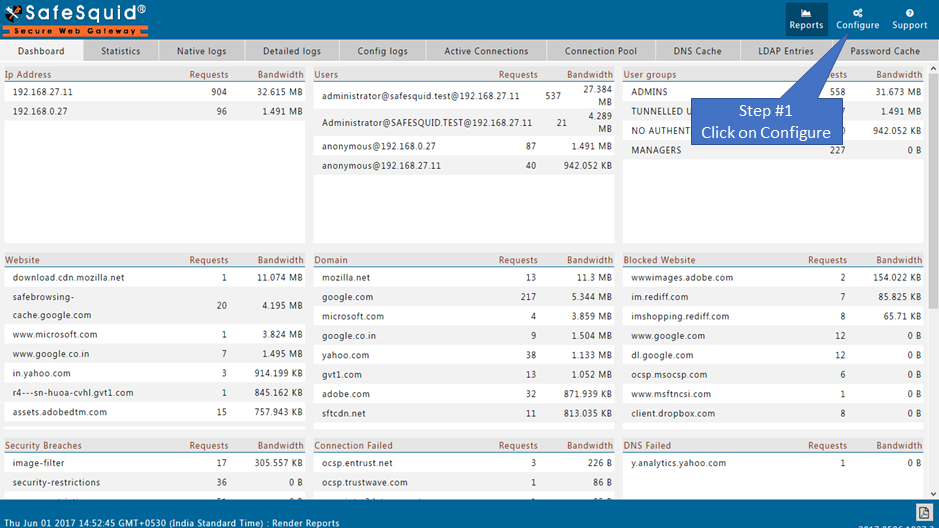

Go to configure Page

Access configure page to Integrate OpenLDAP with safesquid

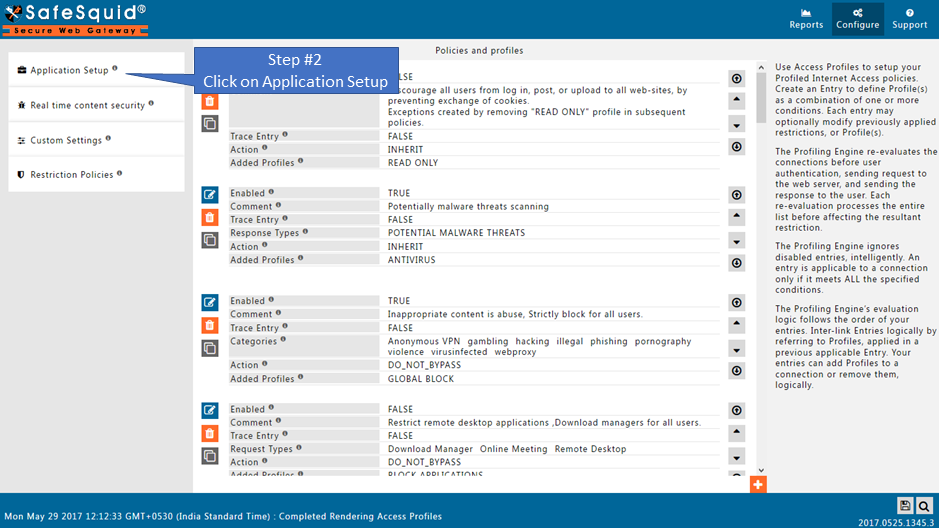

Go to Application Setup

Go to Application setup to Integrate OpenLDAP with safesquid

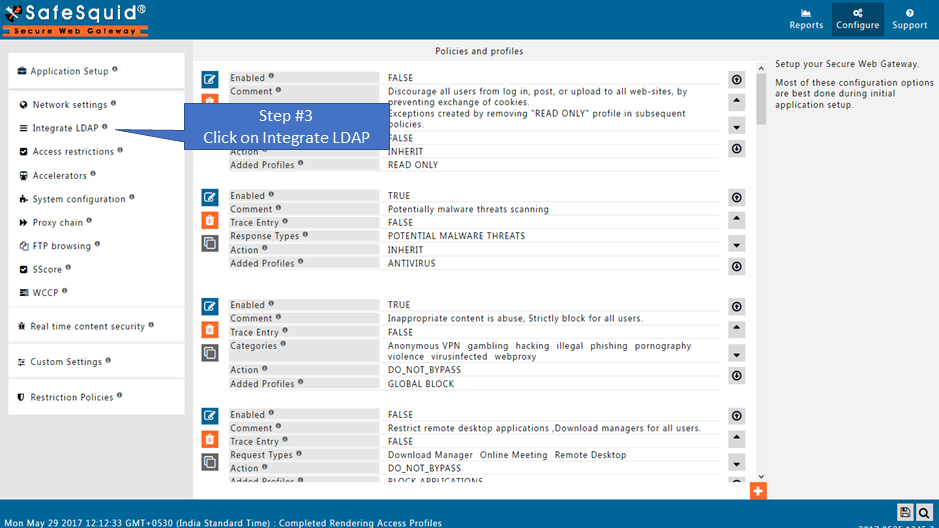

Go to Integrate LDAP

Go to Integrate LDAP section to integrate OpenLDAP with safesquid

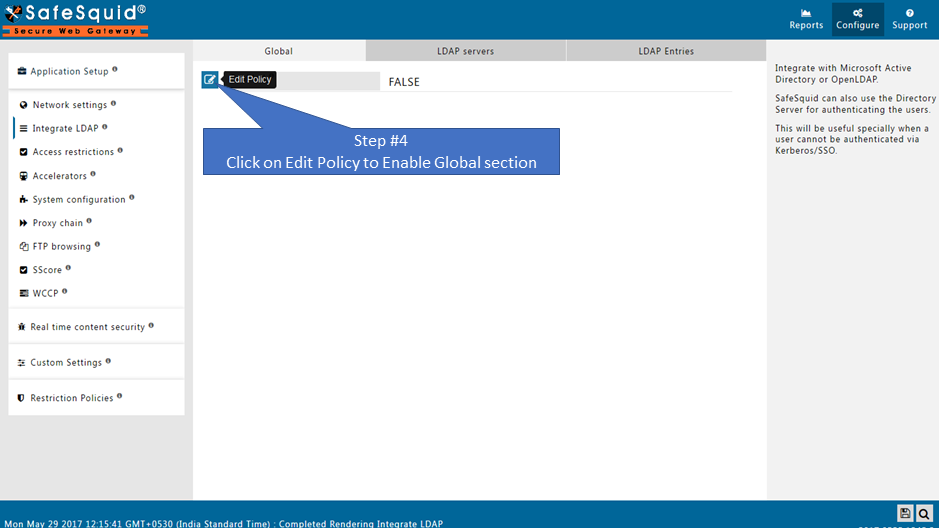

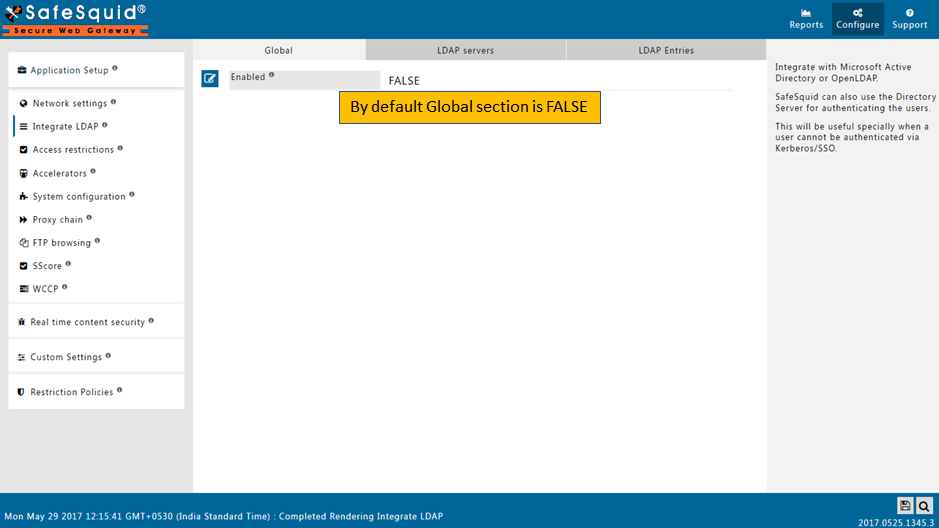

Enable Integrate LDAP

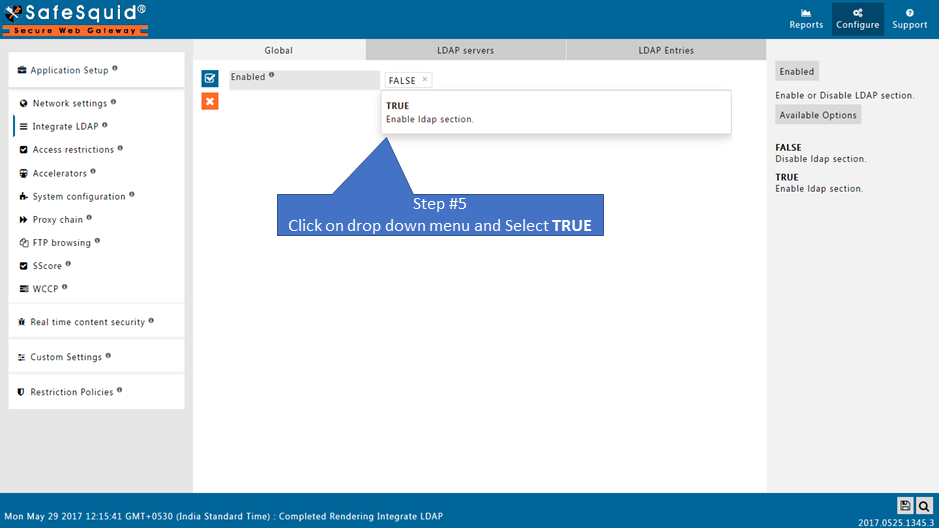

Enable global section as True in Integrate LDAP section to integrate OpenLDAP with safesquid
Enable global section as True in Integrate LDAP section to integrate OpenLDAP with safesquid
Enable global section as True in Integrate LDAP section to integrate OpenLDAP with safesquid

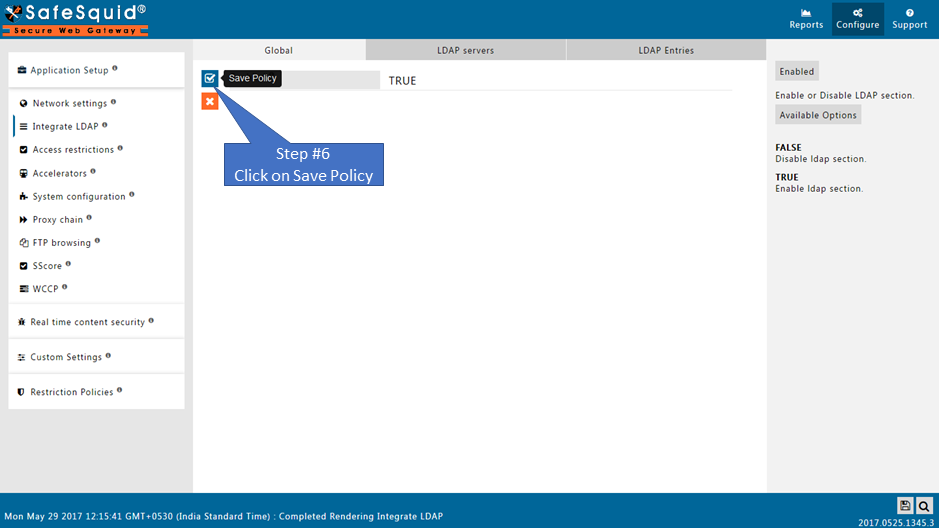

Save policy after enable global section as True in Integrate LDAP section to integrate OpenLDAP with safesquid

Go to LDAP servers

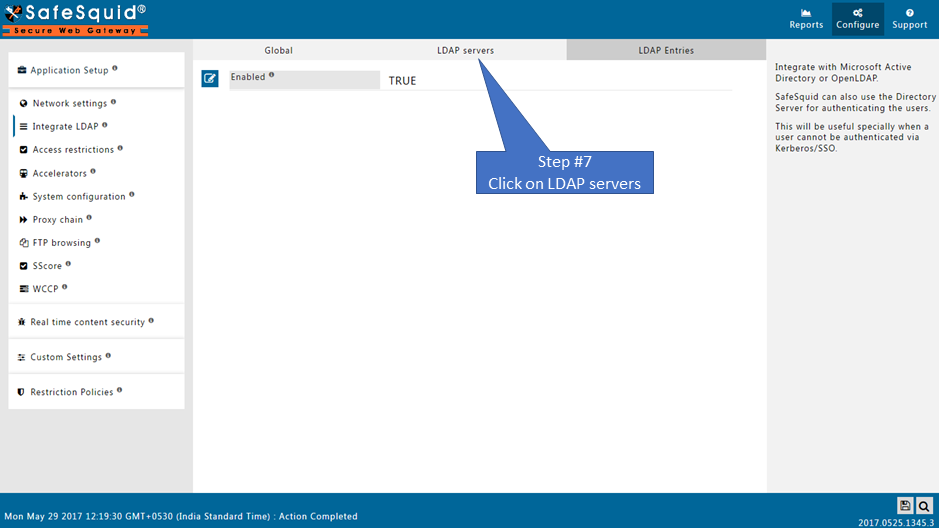

Select LDAP server to integrate OpenLDAP with safesquid

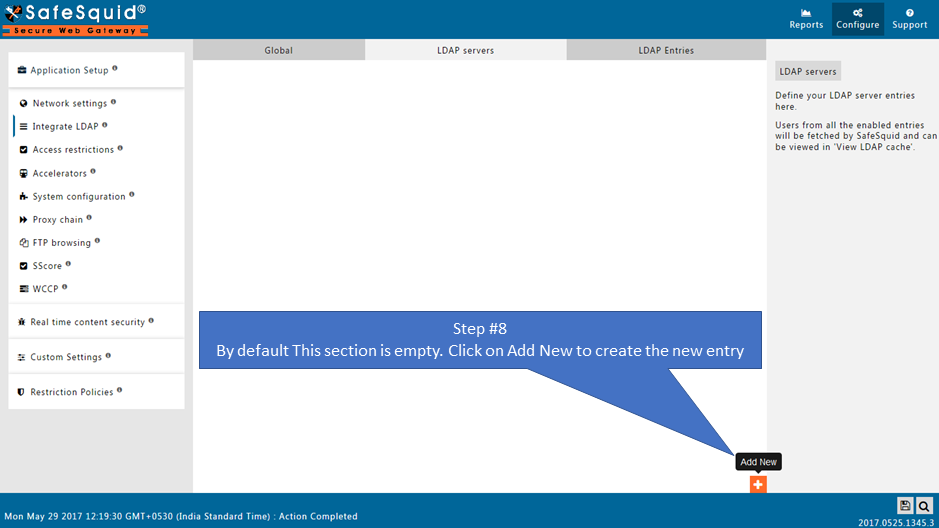

 Add a new entry

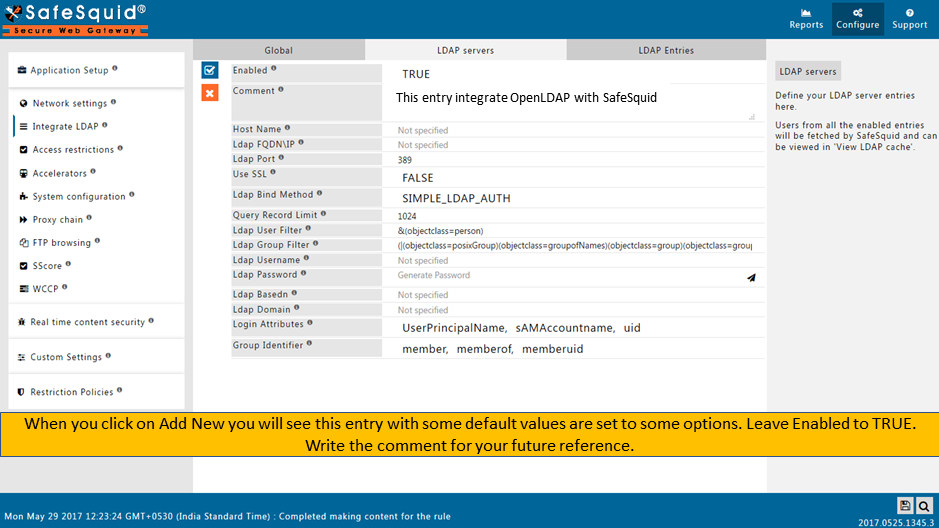

Add new entry in LDAP server section to integrate OpenLDAP with safesquid
In new entry enabled policy as a true in LDAP server section to integrate OpenLDAP with safesquid

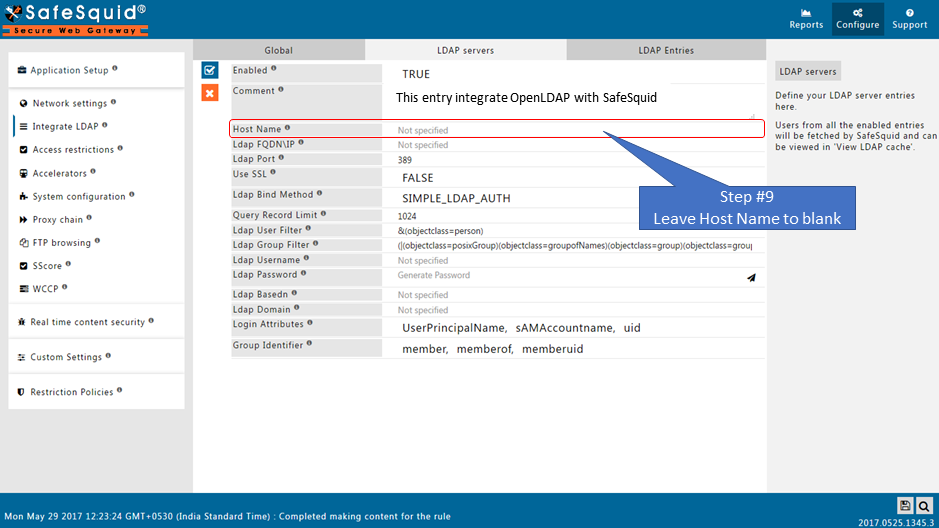

Leave Host name to blank in LDAP server section to integrate OpenLDAP with safesquid

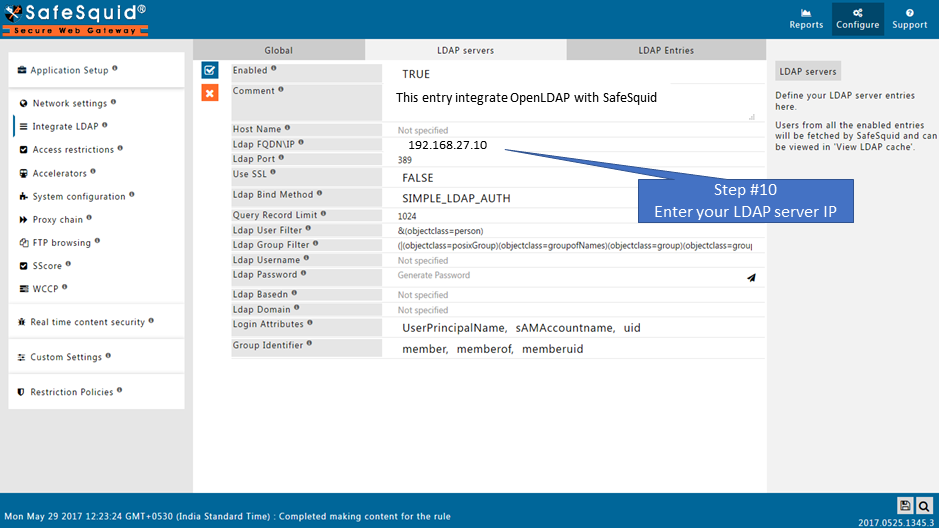

Enter LDAP server IP in LDAP server section to integrate OpenLDAP with safesquid

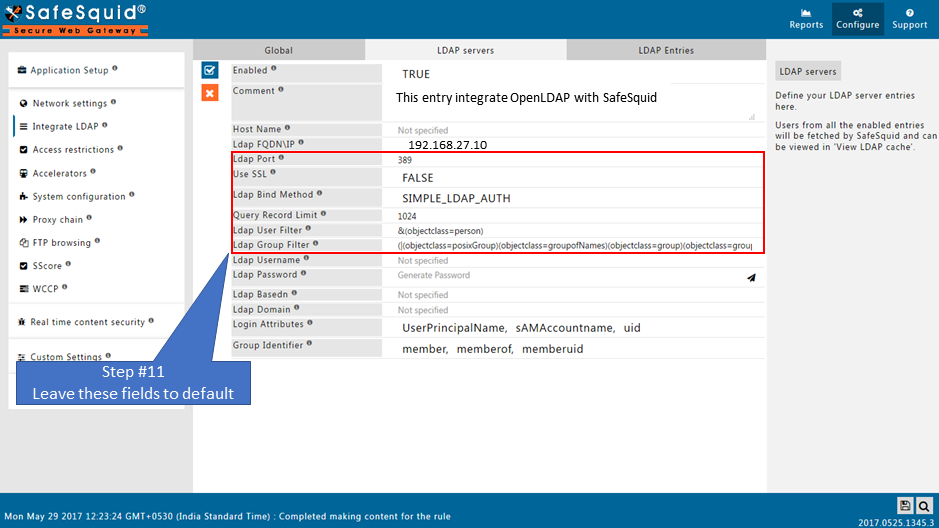

Leave default entry field as it is in LDAP server section to integrate OpenLDAP with safesquid

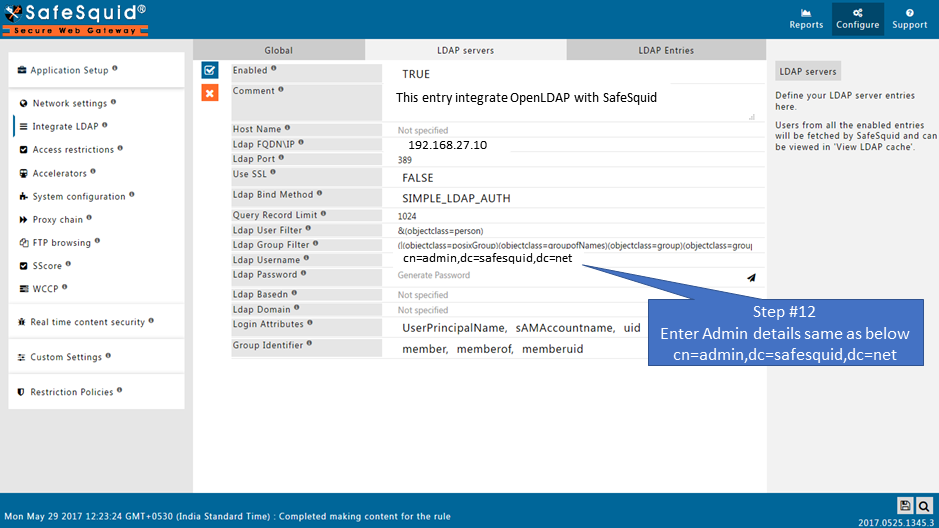

Enter Ldap username in LDAP server section to integrate OpenLDAP with safesquid

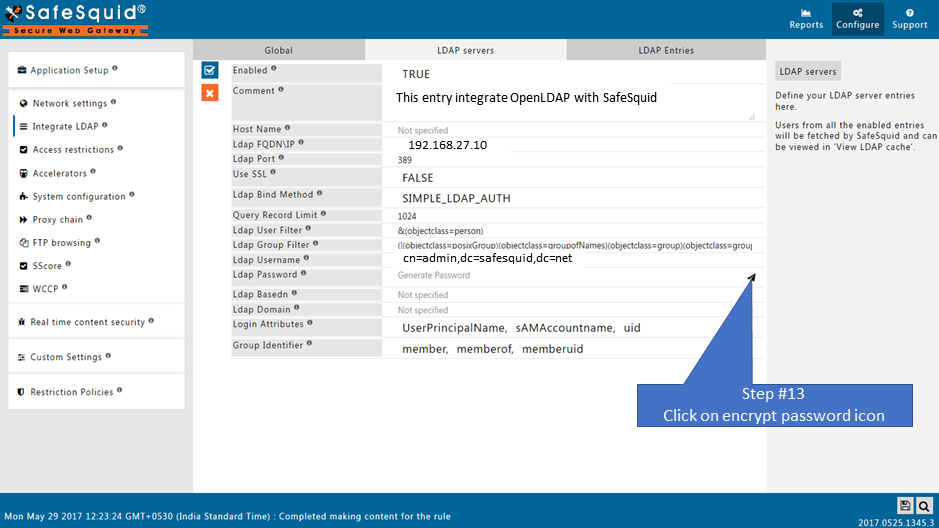

Click on icon enter password in LDAP server section to integrate OpenLDAP with safesquid

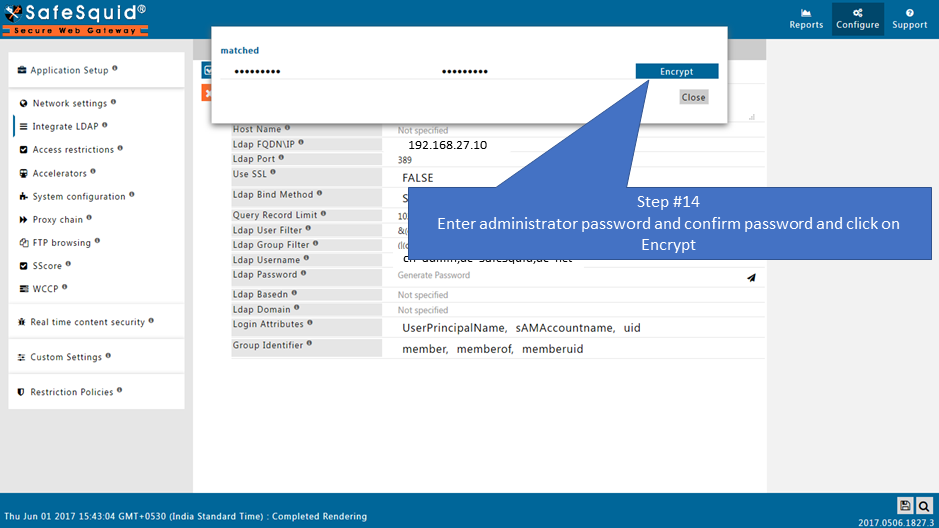

Enter admin password and confirm to fetch the entries from LDAP server
Encrypt admin password to fetch the entries from LDAP server

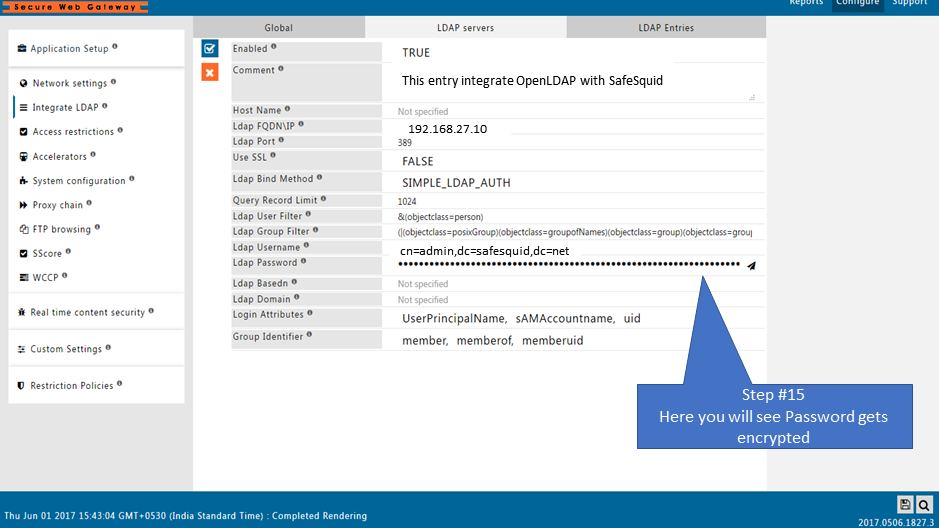

Encrypted admin password will show to fetch the entries from LDAP server

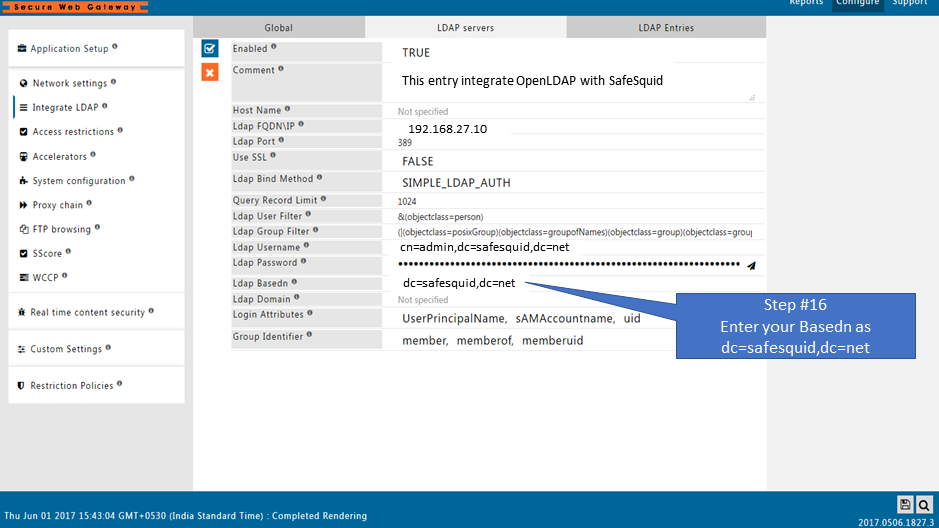

Enter Basedn details to fetch the entries from LDAP server

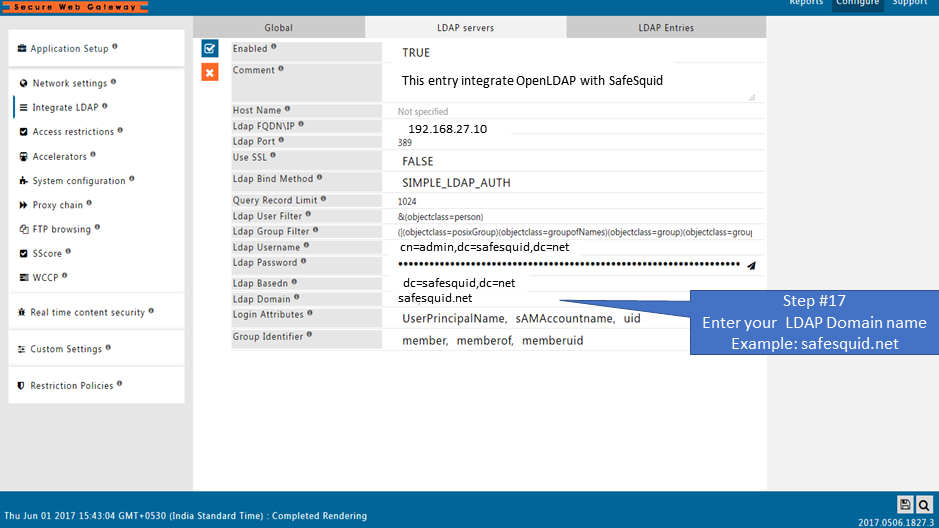

Enter LDAP Domain name to fetch the entries from LDAP server

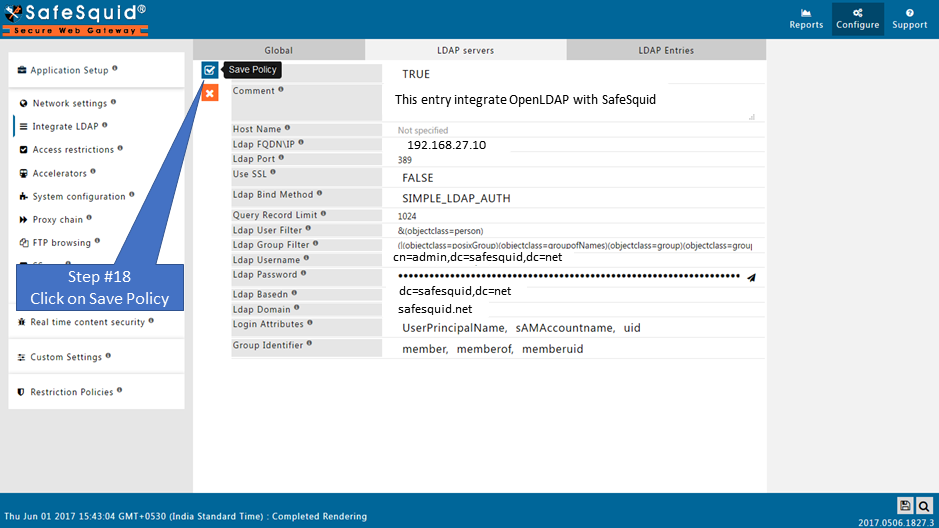

Save policy to fetch the entries from LDAP server

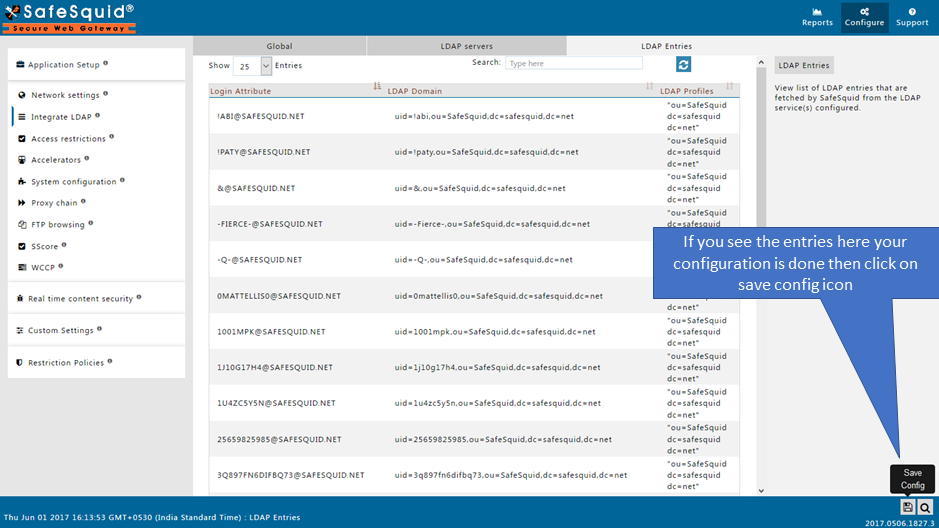

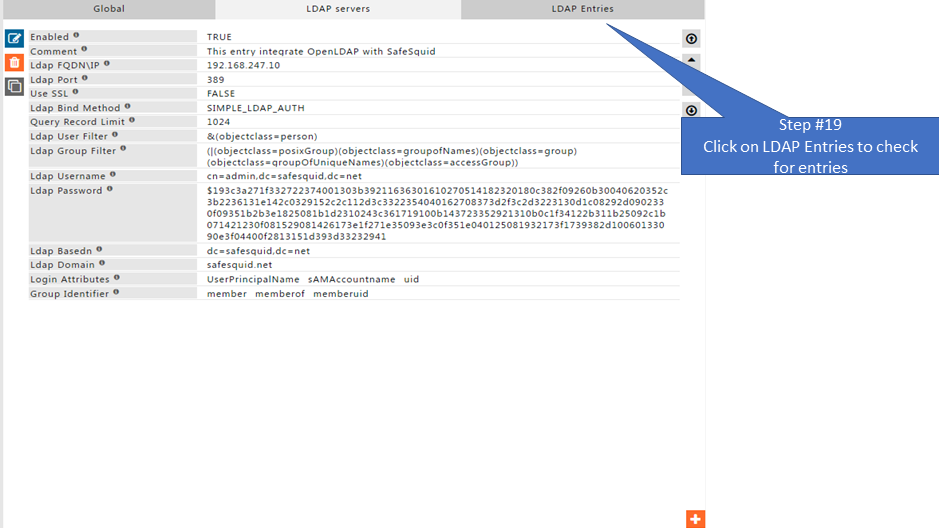

Click on LDAP entires to check fetched entries from LDAP server

Test User extraction

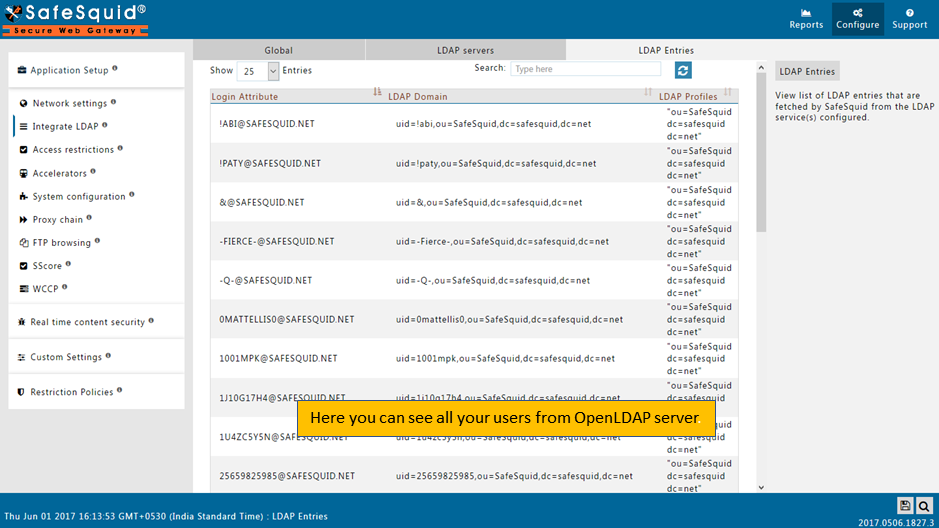

Result of user extraction

Save Configuration

Save Configuration of policy of integrate OpenLDAP with safesquid
When you click on Save config, it will give a prompt for asking the confirmation to store your configuration into the cloud.
Select Yes only in below cases:
if you want to use this same configuration in other SafeSquid instances.
if your total configuration in all sections is completed and validated.
Otherwise select No and click on submit
