Overview

Here i am integrating my Active Directory with following information.
IP Address: 192.168.247.10
Domain of Active Directory: safesquid.net
Base Dn: dc=safesquid,dc=net
User Name: cn=admin,dc=safesquid,dc=net
See more about Integrate LDAP section, here we explained the working of each field in the Integrate LDAP section.

Prerequisites

Make sure that all the values (LDAP server FQDN, LDAP server IP, Username, password, base dn, domain) in configuration are correct. If any value is wrong SafeSquid will fail to fetch the entries.

Access the SafeSquid User Interface

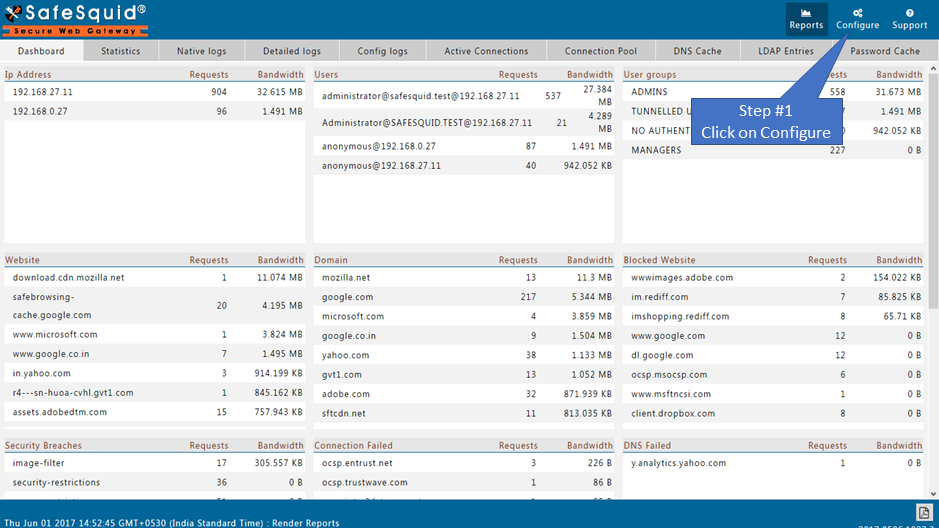

Go to configure Page

clicking on configure in safesquid interface

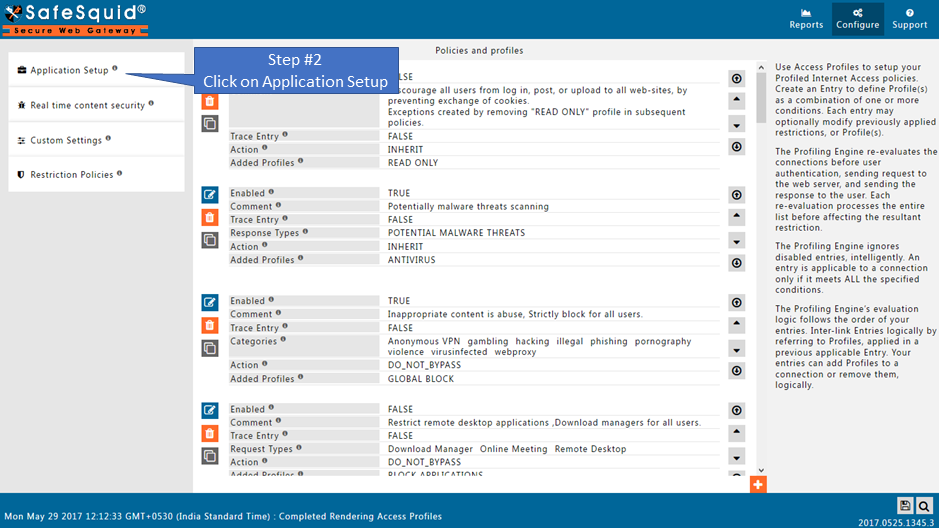

Go to Application Setup

clicking on application setup

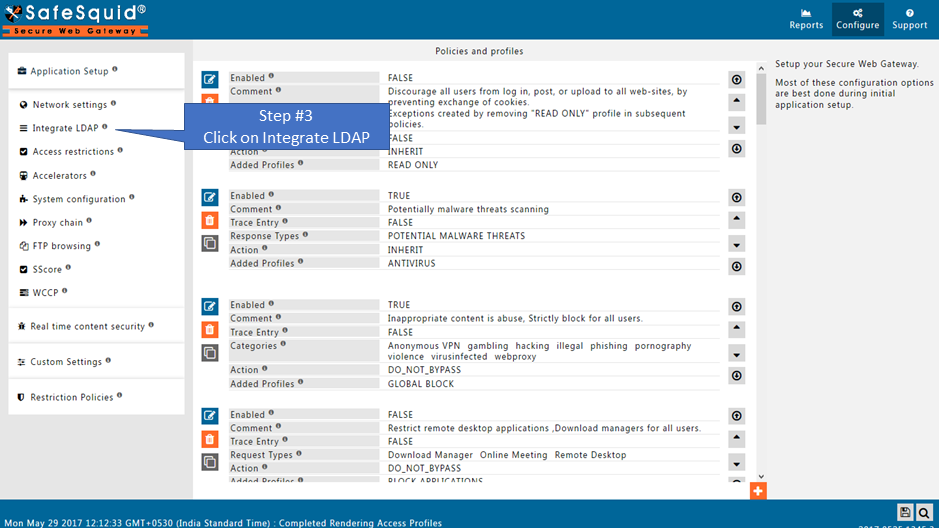

Go to Integrate LDAP

going to integrate LDAP in application setup section

Enable Integrate LDAP

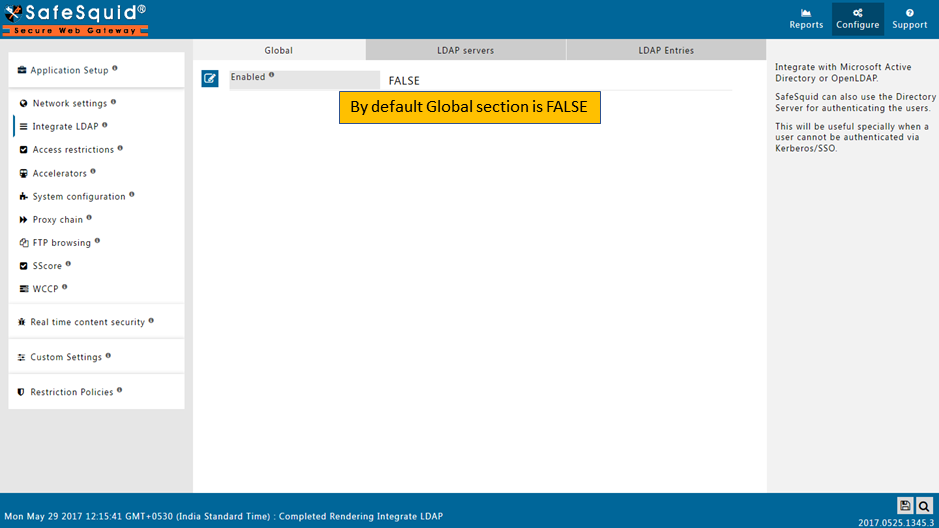

ensuring the LDAP section is enabled. by default it is set as false

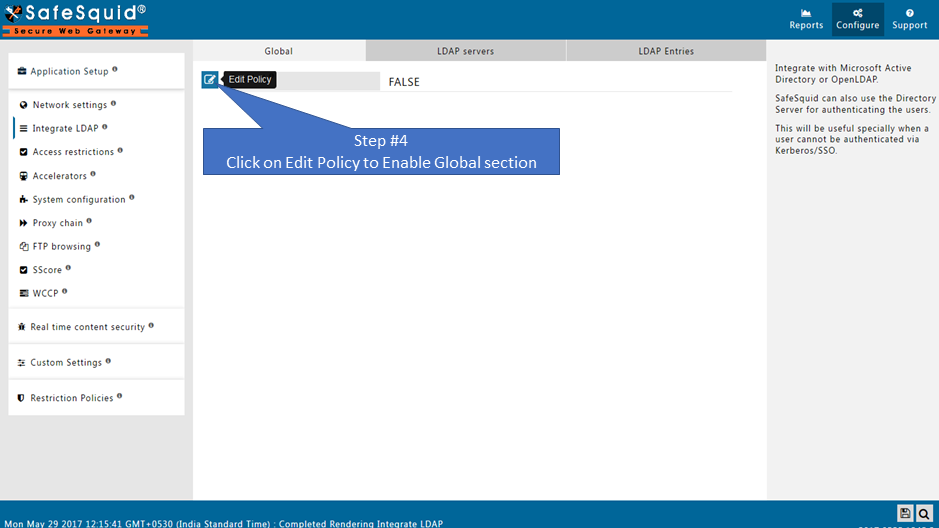

clicking on the global edit

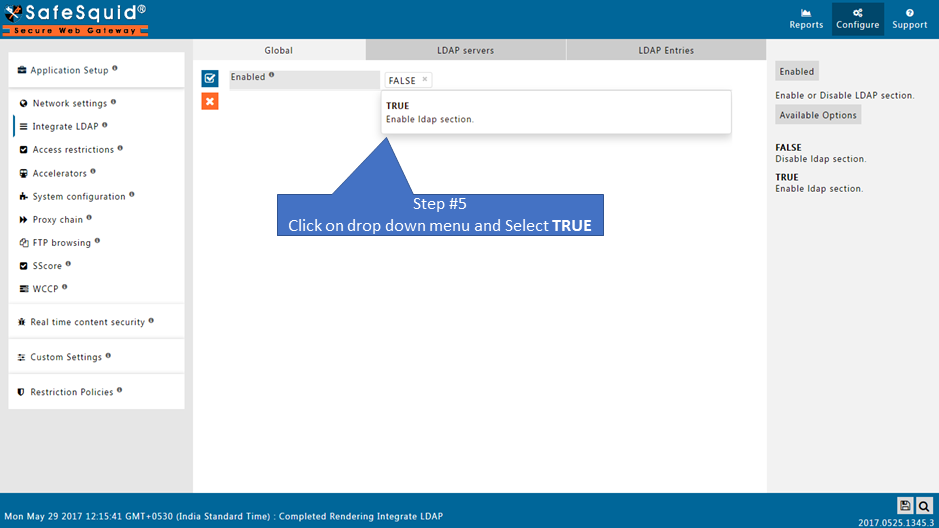

selecting true from the drop down menu
clicking on save policy

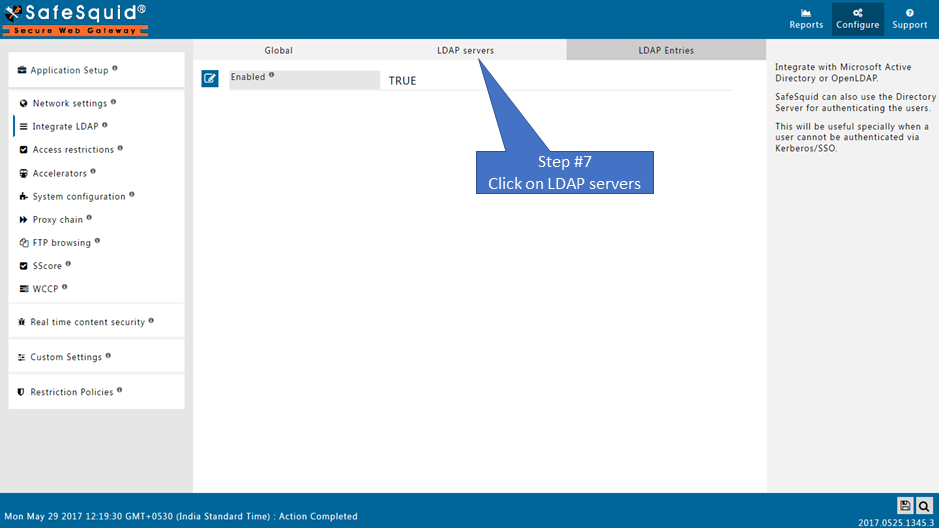

Go to LDAP servers

going to LAP servers tab

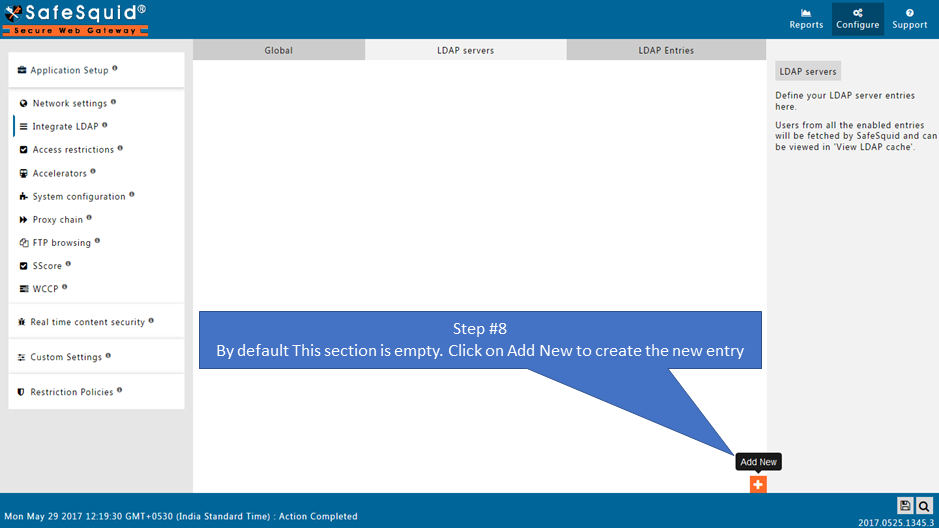

Add a new entry

creating a new entry by clicking add new button

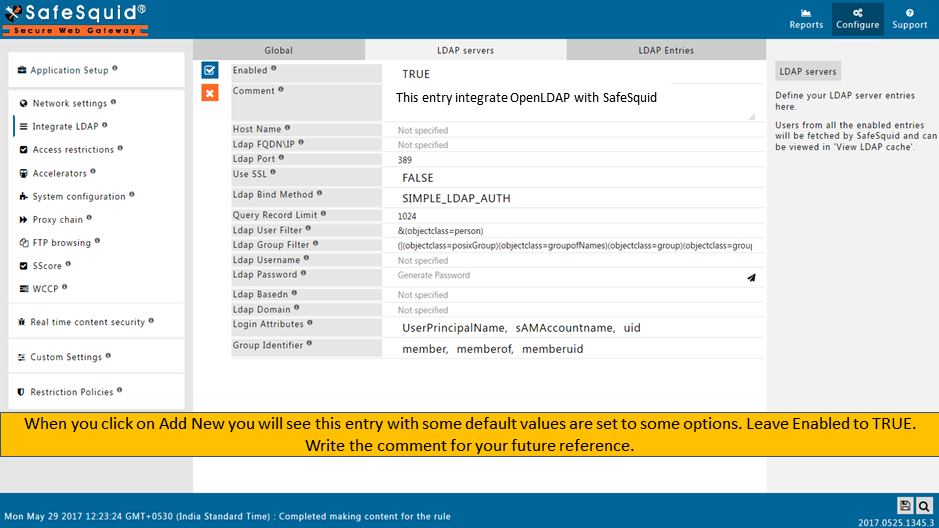

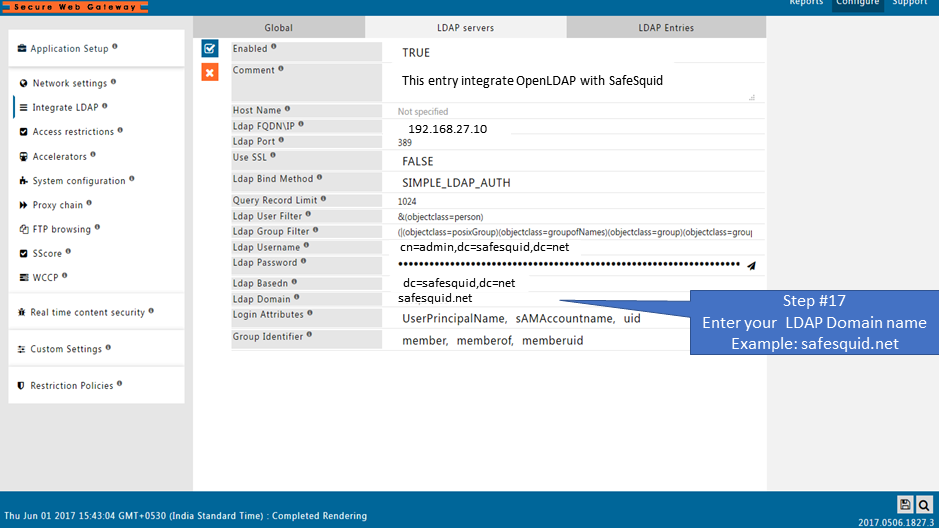

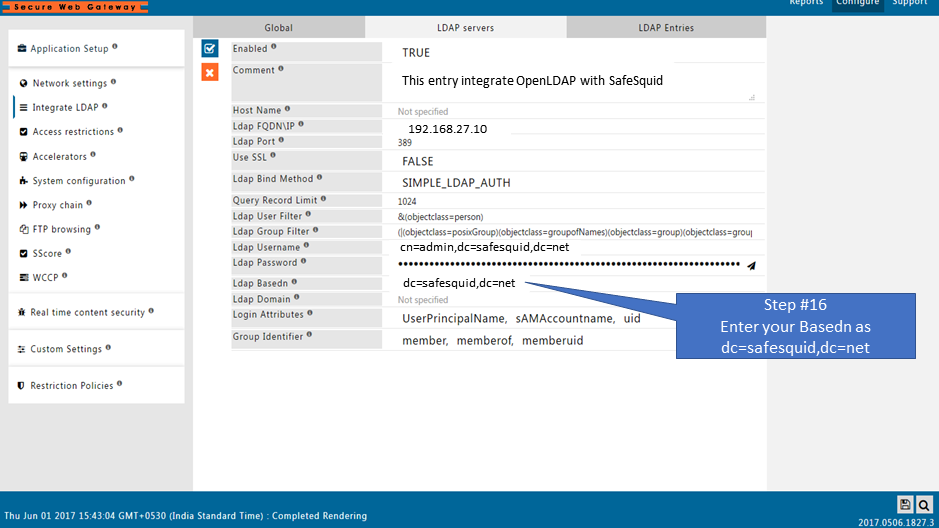

some default values are set to some options. leaving enabled as true and writing comment for future reference

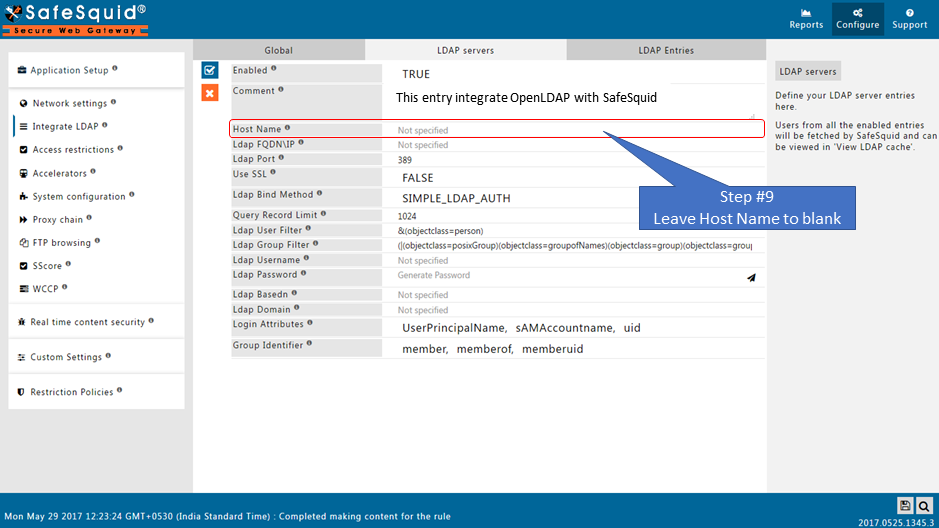

leaving host name field blank

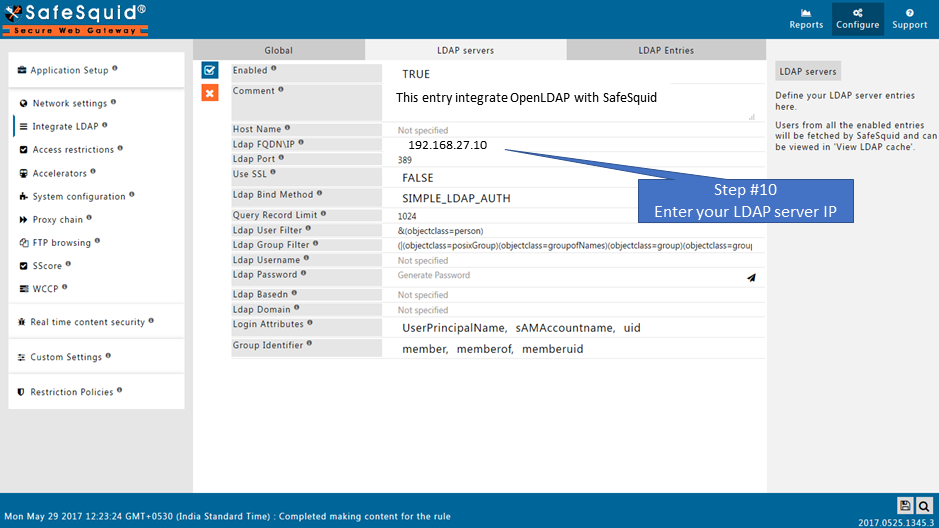

entering your LDAP server IP

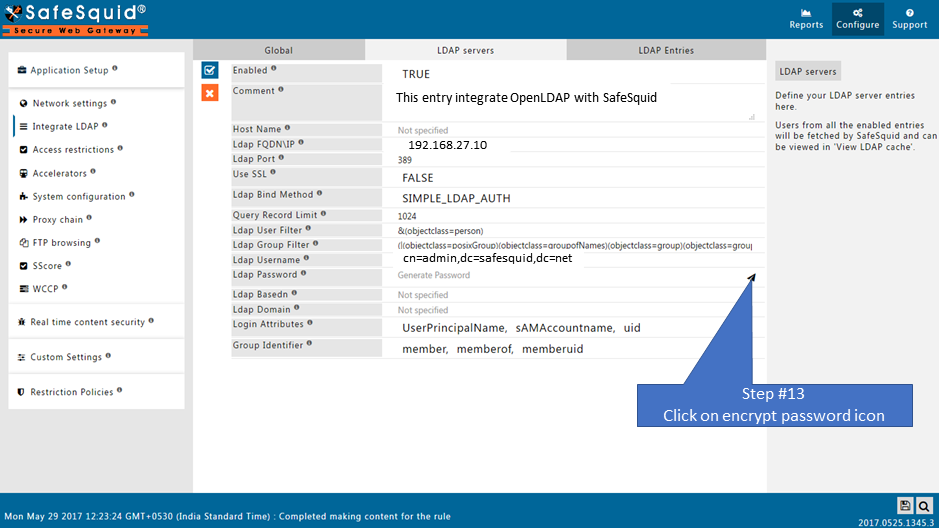

clicking on encrypt password icon

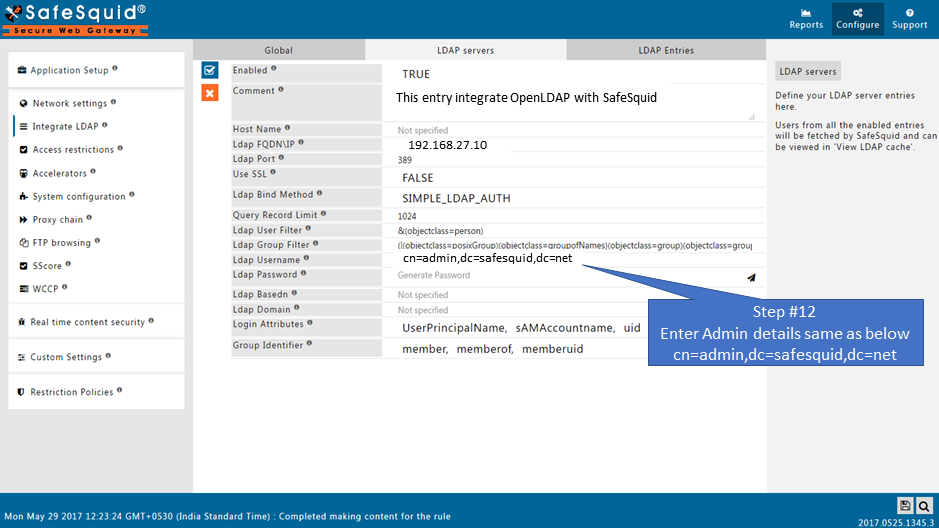

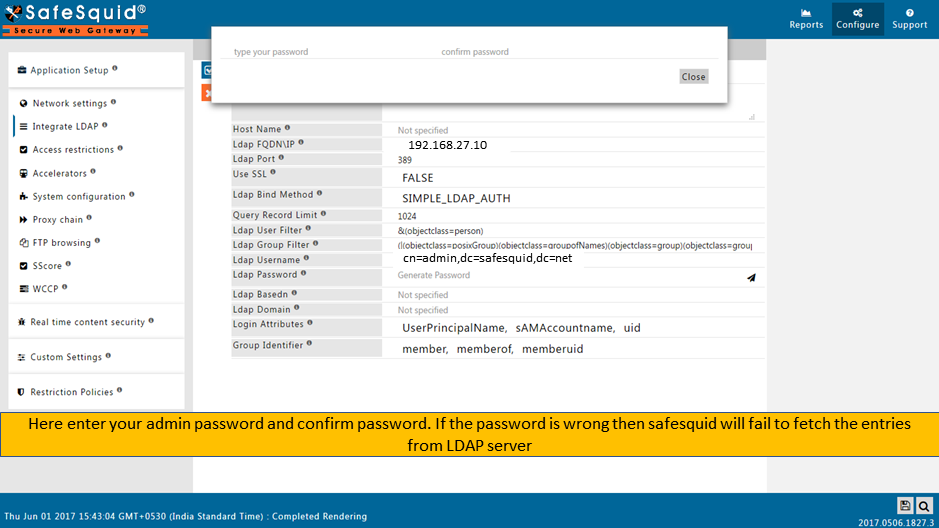

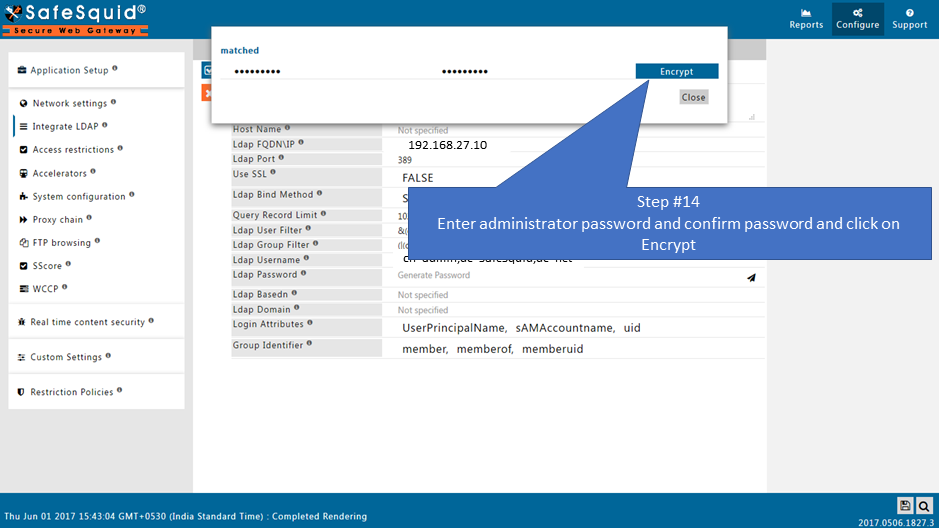

entering admin password and confirming the password by entering in respective field
clicking on encrypt to encrypt the password

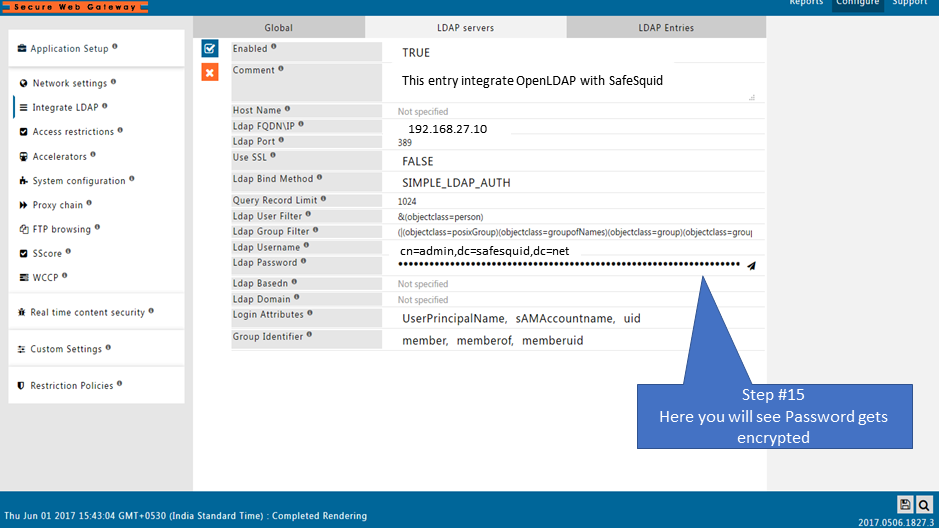

showing that the password is now encrypted
clicking on save policy
clicking on ldap entries tab to check for entries

Test User extraction

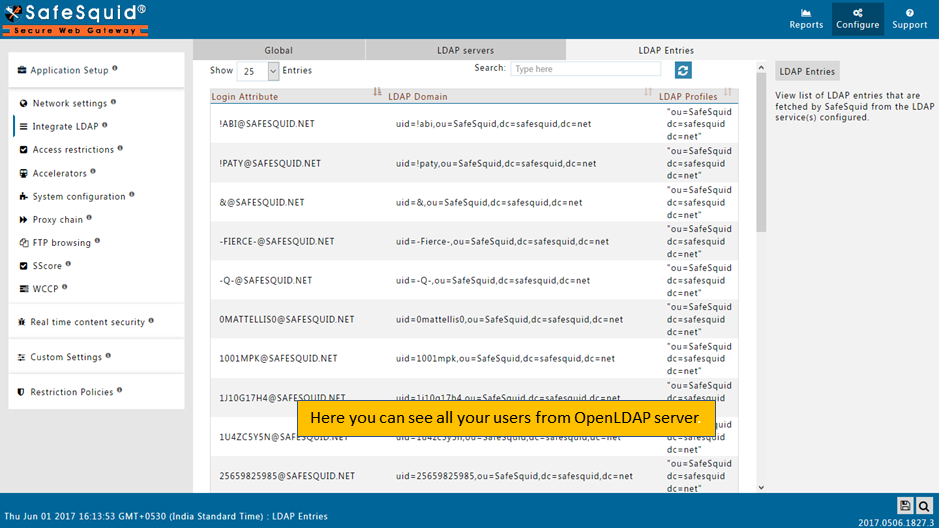

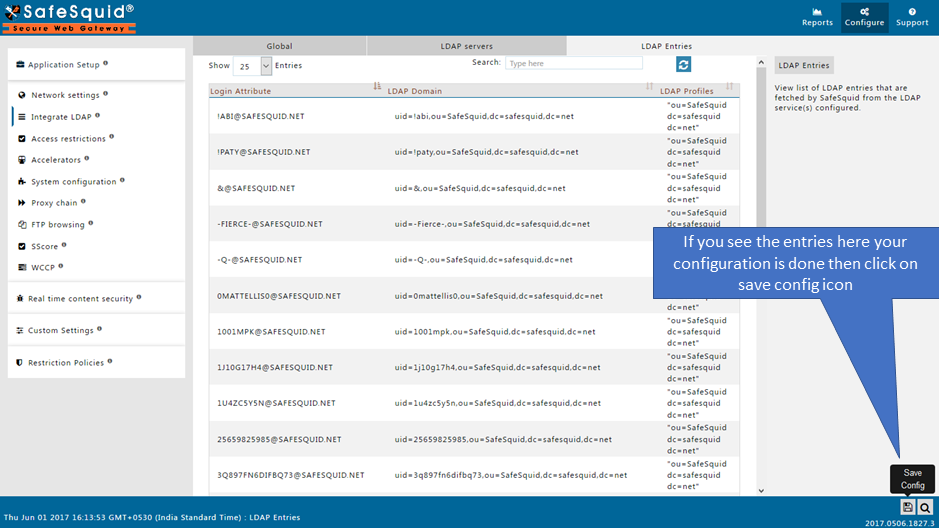

showing all the users from LDAP server in ldap entries tab

Save Configuration

clicking on save config to save it
When you click on Save config, it will give a prompt for asking the confirmation to store your configuration into the cloud.
Select Yes only in below cases:
if you want to use this same configuration in other SafeSquid instances.
if your total configuration in all sections is completed and validated.
Otherwise select No and click on submit.
