Integrate Active Directory For Simple Authentication
Overview
Here I am integrating my Active Directory with following information.
Active Directory FQDN : ad.safesquid.test

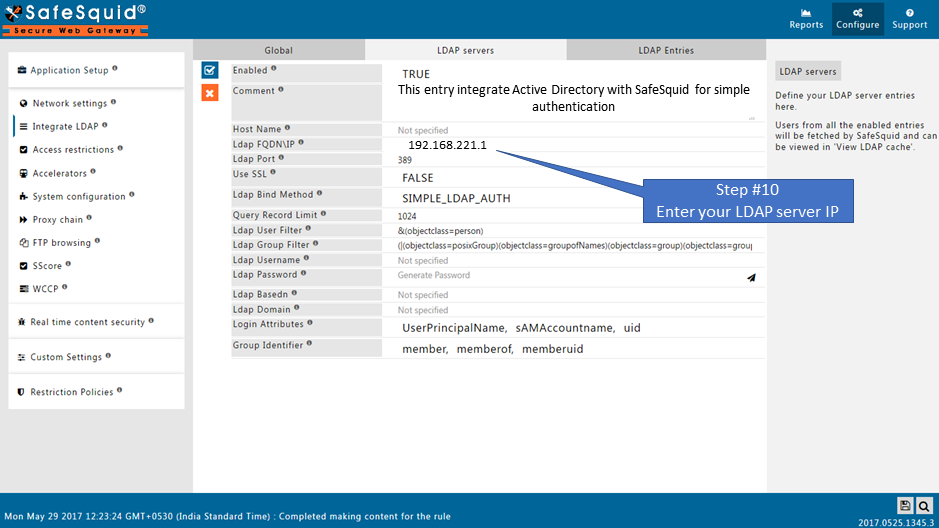

IP Address : 192.168.221.1

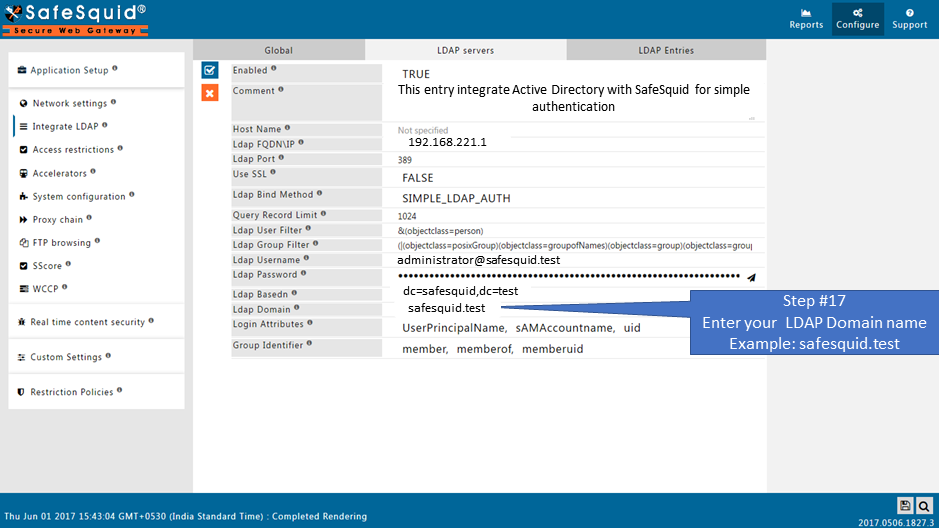

Domain of Active Directory : safesquid.test

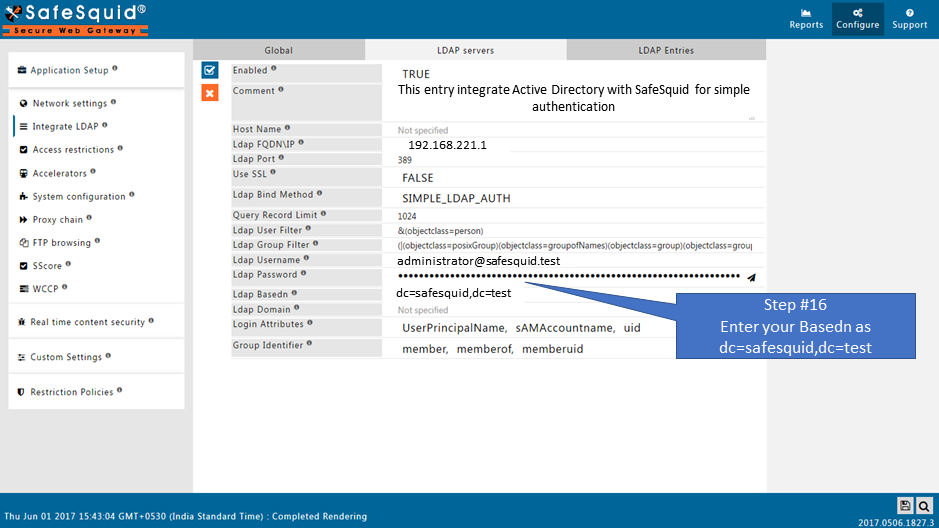

Base Dn : dc=safesquid,dc=test

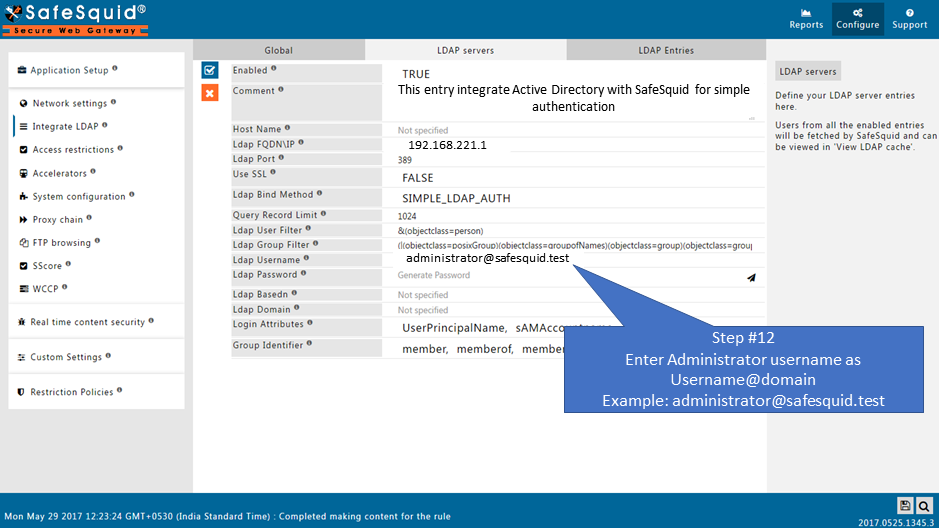

User Name : administrator@safesquid.test
See more about Integrate LDAP section, here we explained the working of each field in the Integrate LDAP section.
Prerequisites

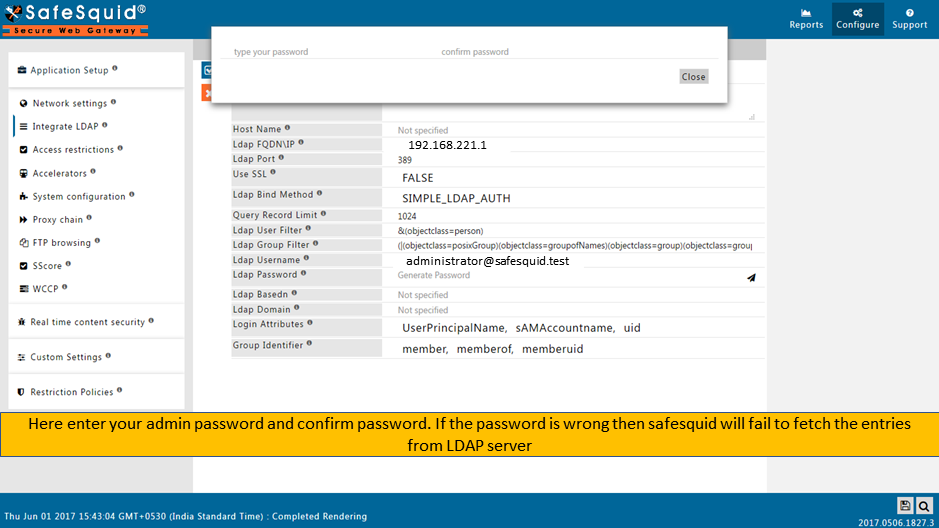

Make sure that all the values (LDAP server FQDN, LDAP server IP, Username, password, base dn, domain ) in configuration are correct. If any value is wrong SafeSquid will fail to fetch the entries.

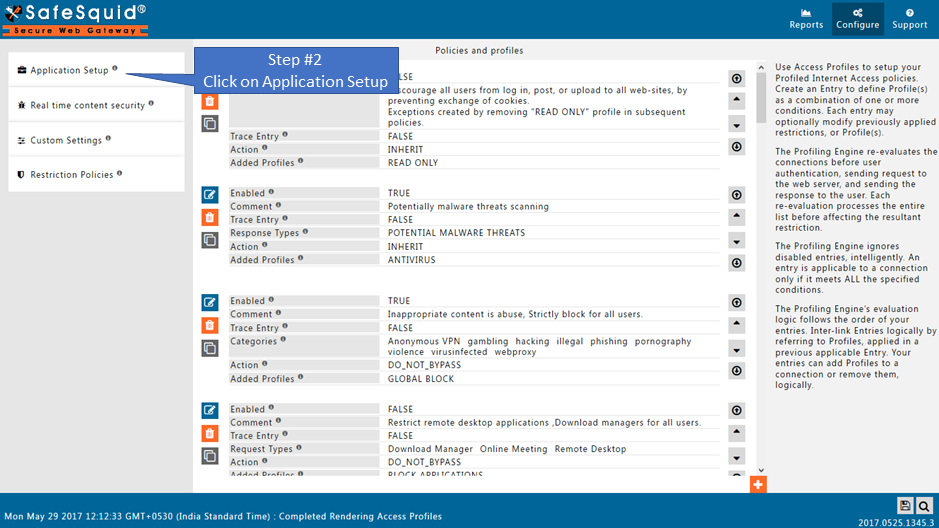

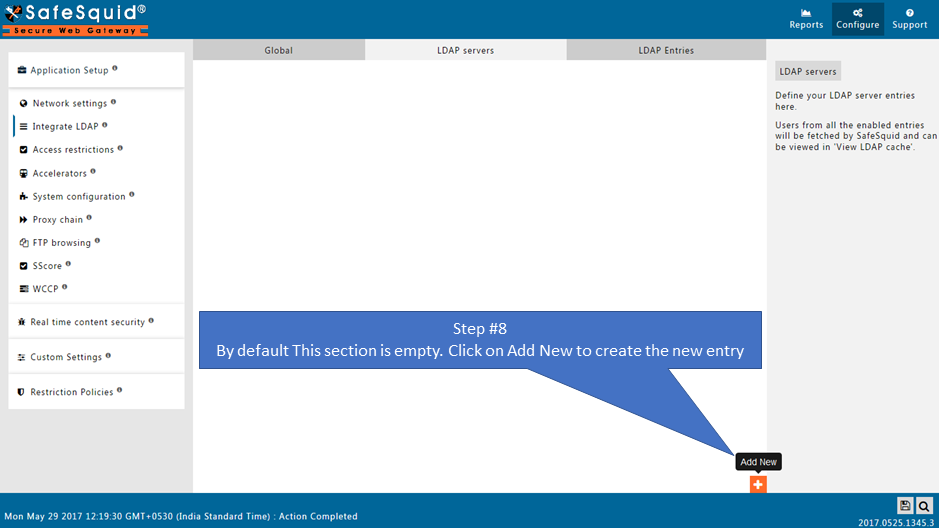

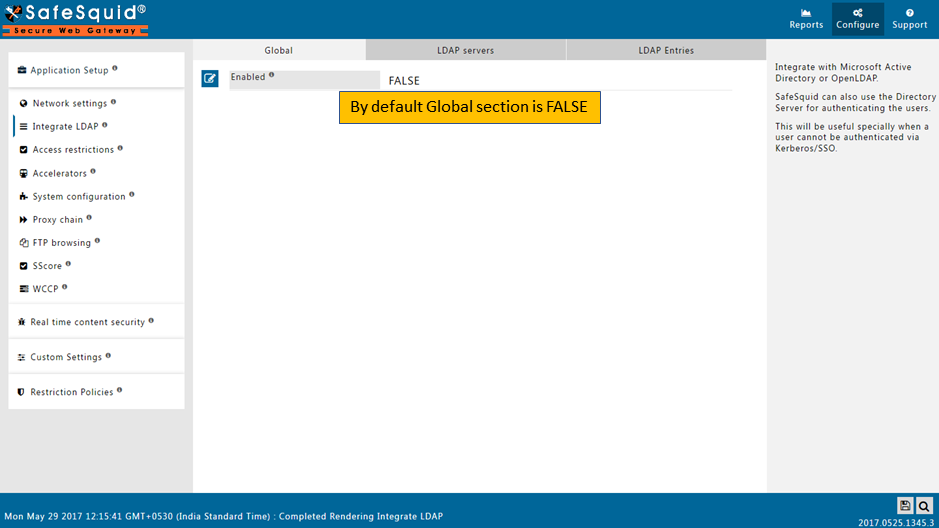

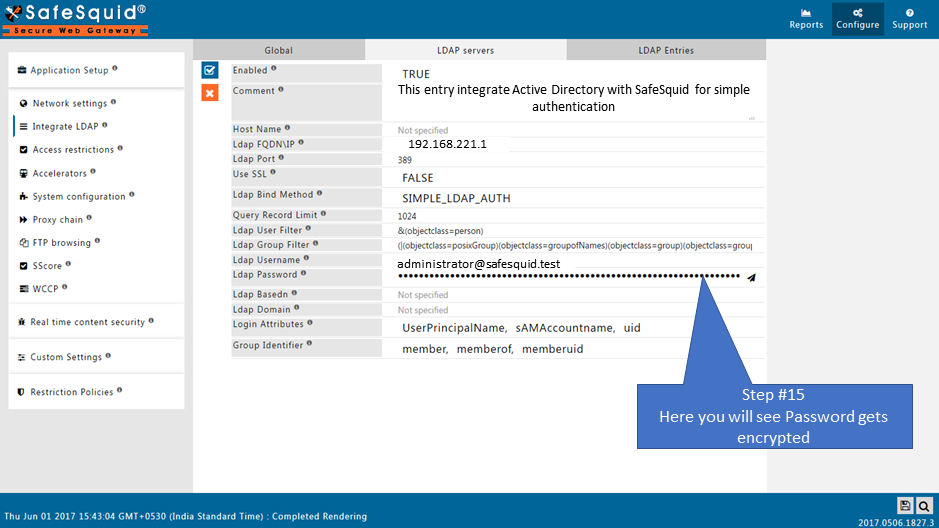

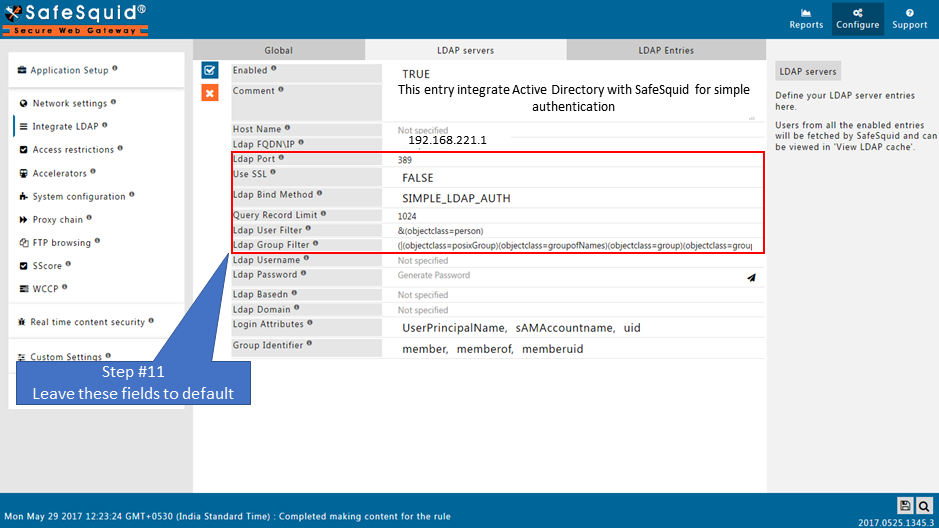

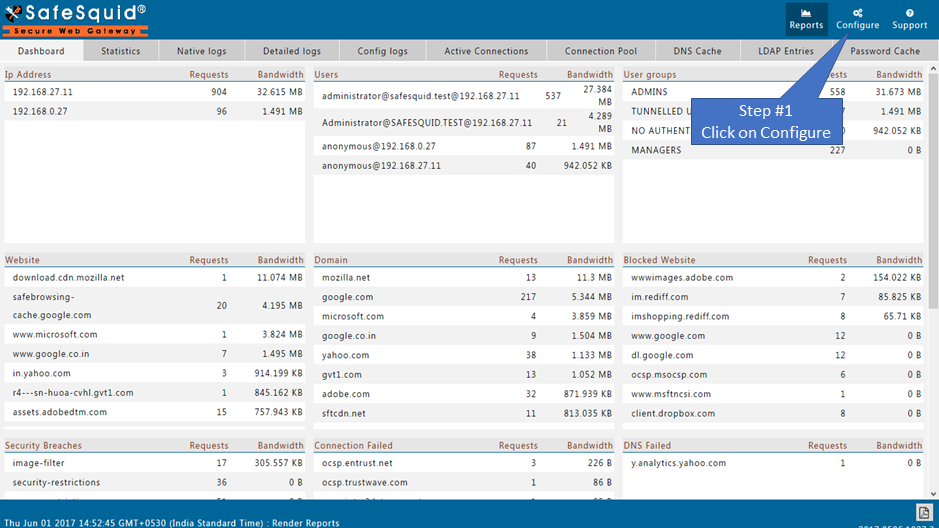

Access the SafeSquid User Interface

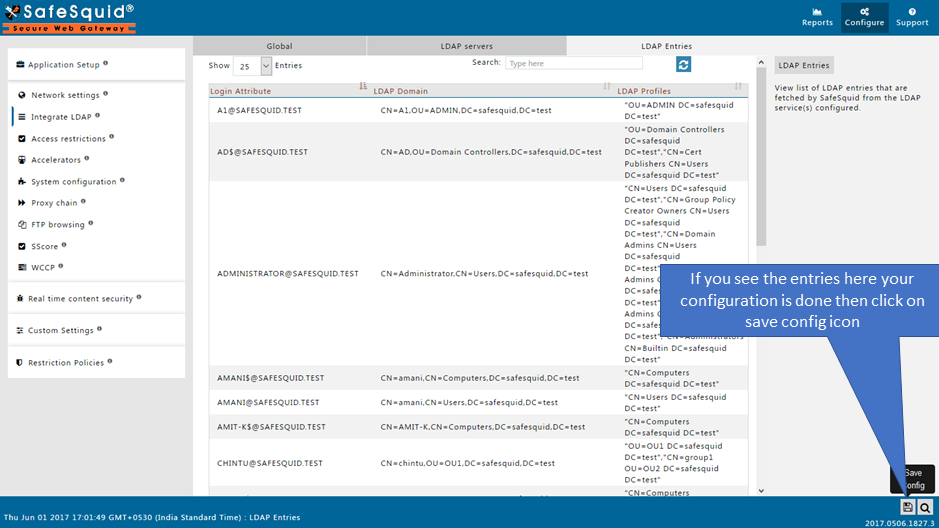

When you click on Save config, it will give a prompt for asking the confirmation to store your configuration into the cloud.
Select Yes only in below cases:
Select Yes only in below cases:
if you want to use this same configuration in other SafeSquid instances.
if your total configuration in all sections is completed and validated.
Otherwise select No and click on submit.

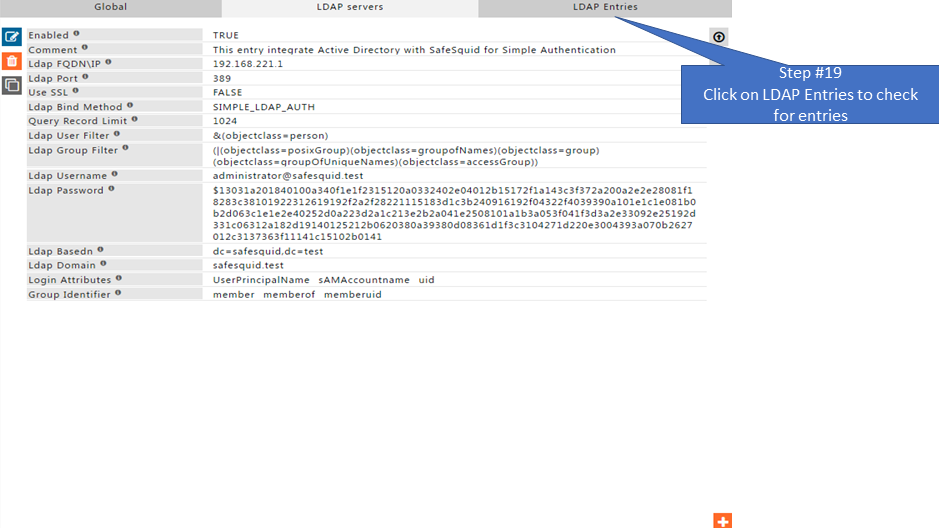

Enable authentication for LDAP users
Troubleshooting
