Using SSH Tunnels to Access the SafeSquid Admin Interface

Using SSH Tunnels to Access the SafeSquid Admin Interface

SSH tunnelling, or SSH port forwarding, is a method of transporting arbitrary data over an encrypted SSH connection.
SSH tunnels allow connections made to a local port (that is, to a port on your desktop) to be forwarded to a remote machine via a secure channel.
To Create SSH Tunnels using PuTTY follow the below Steps:

Steps

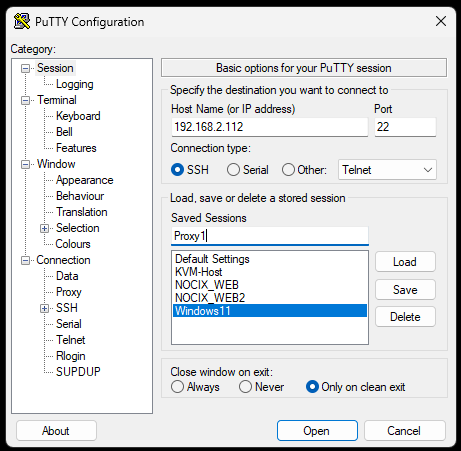

1. Establish an SSH connection with your proxy server

establishing a ssh connection with proxy server by entering all the necessary details

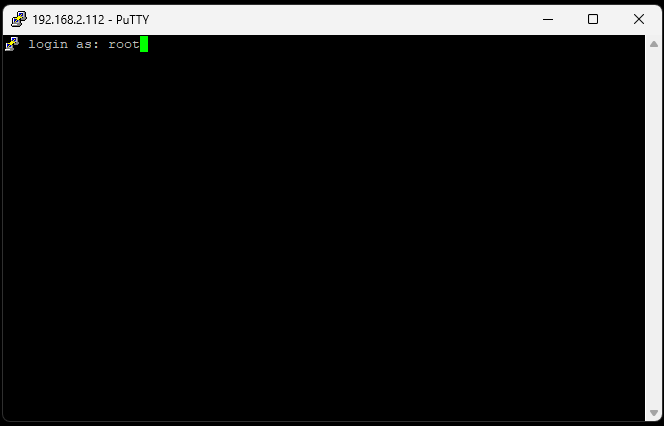

logging in with root username

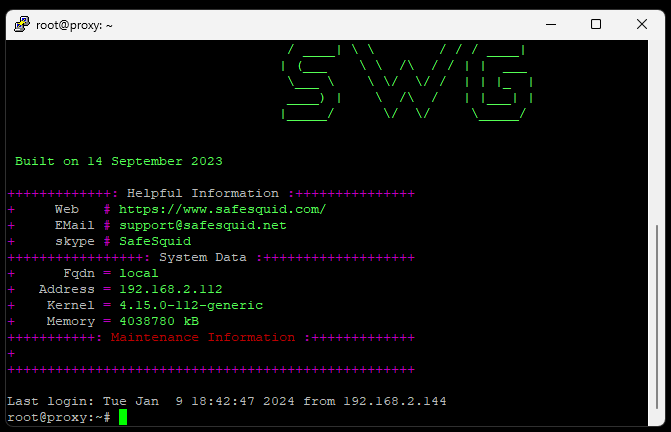

proxy CLI opened

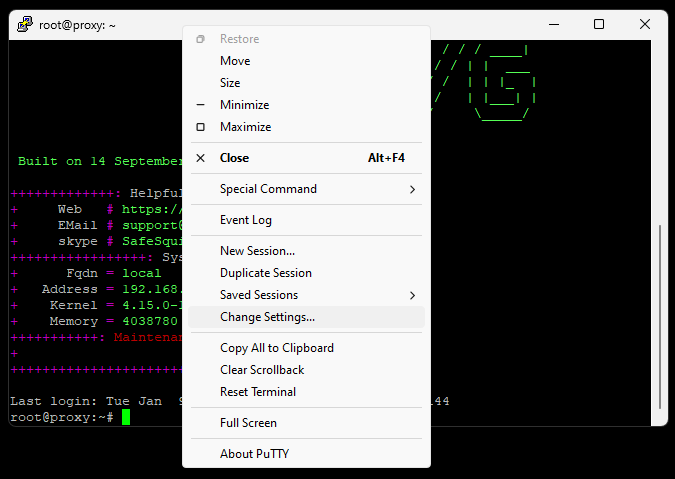

2. Now right-click on the title bar and select Change settings

right clicking on the title bar and selecting change settings

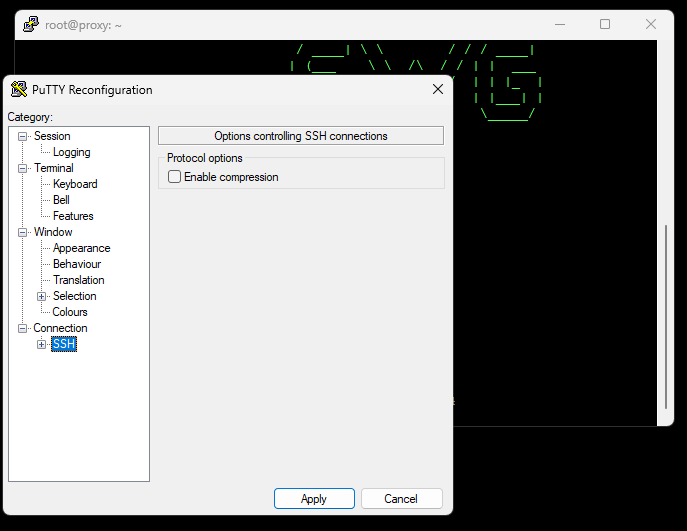

3. Expand the SSH Settings

Expanding the SSH Settings in the sidebar

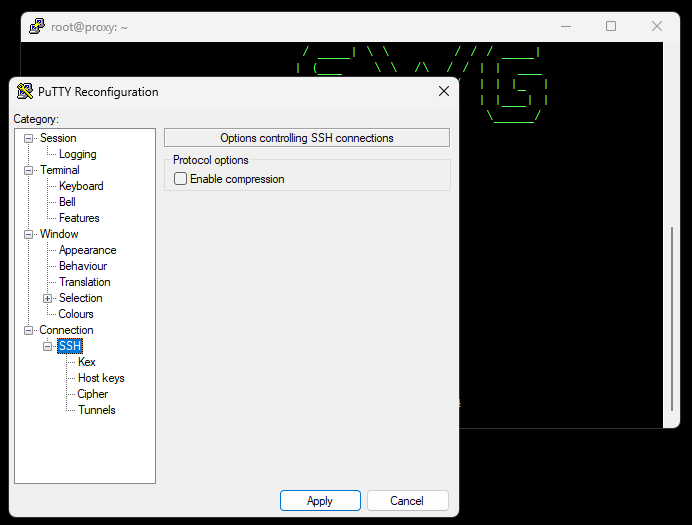

expansion of ssh settings

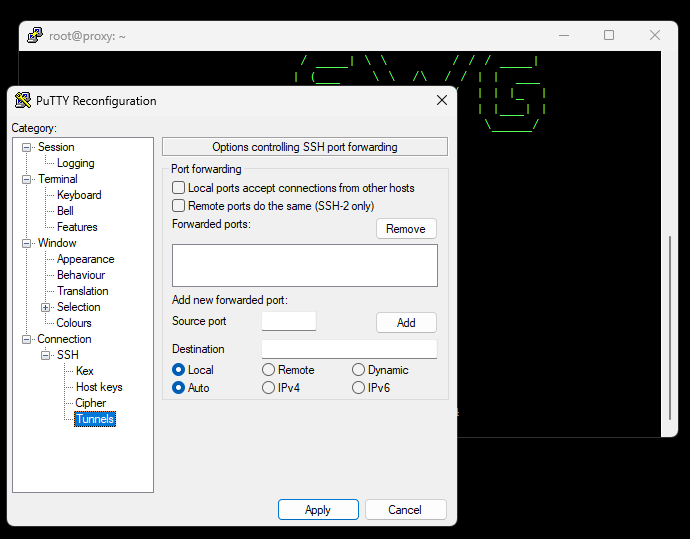

4. Select Tunnels

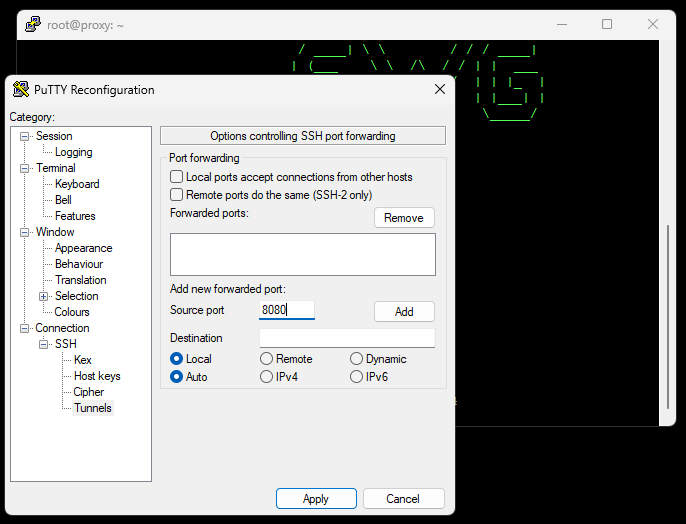

5. Add Source Port

adding the appropriate port

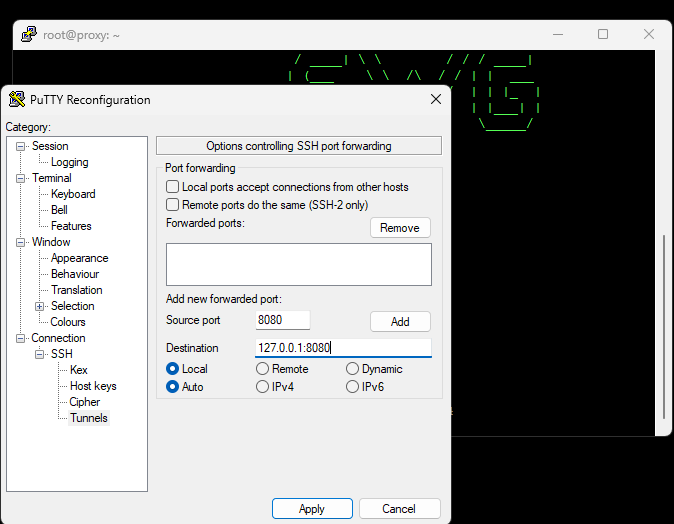

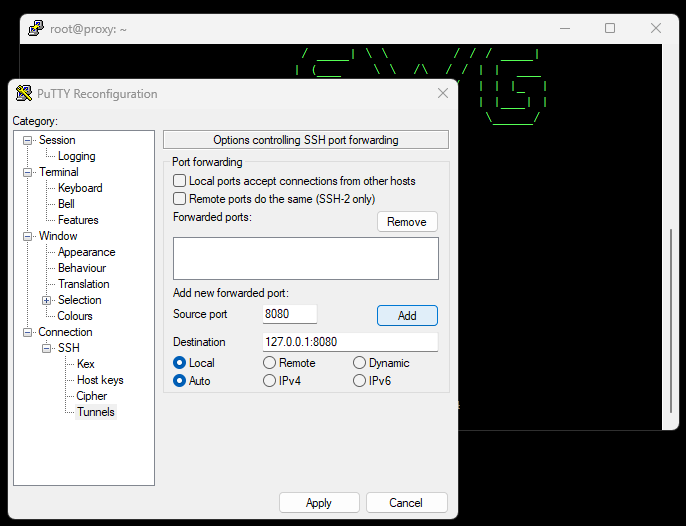

6. Add destination IP and Port

adding the destination and port in the destination field

7. Add and Apply the Settings

adding and applying the setting by clicking on add
adding and applying the setting by clicking on add

Validation

Using your Windows CMD check all connections on port 8080.
  1. netstat -a | findstr "8080"

Now configure your browser to use proxy address 127.0.0.1 and proxy port 8080.
