Define User Groups That Correspond To Role-based Groups In LDAP

Define User Groups That Correspond To Role-based Groups In LDAP

Overview

Creating User Groups based on LDAP users or Groups and enabling SSO authentication for that user.

Prerequisites

Integrate LDAP server with SafeSquid. If not see our document - Integrate Active Directory for SSO Authentication

Access The SafeSquid User Interface

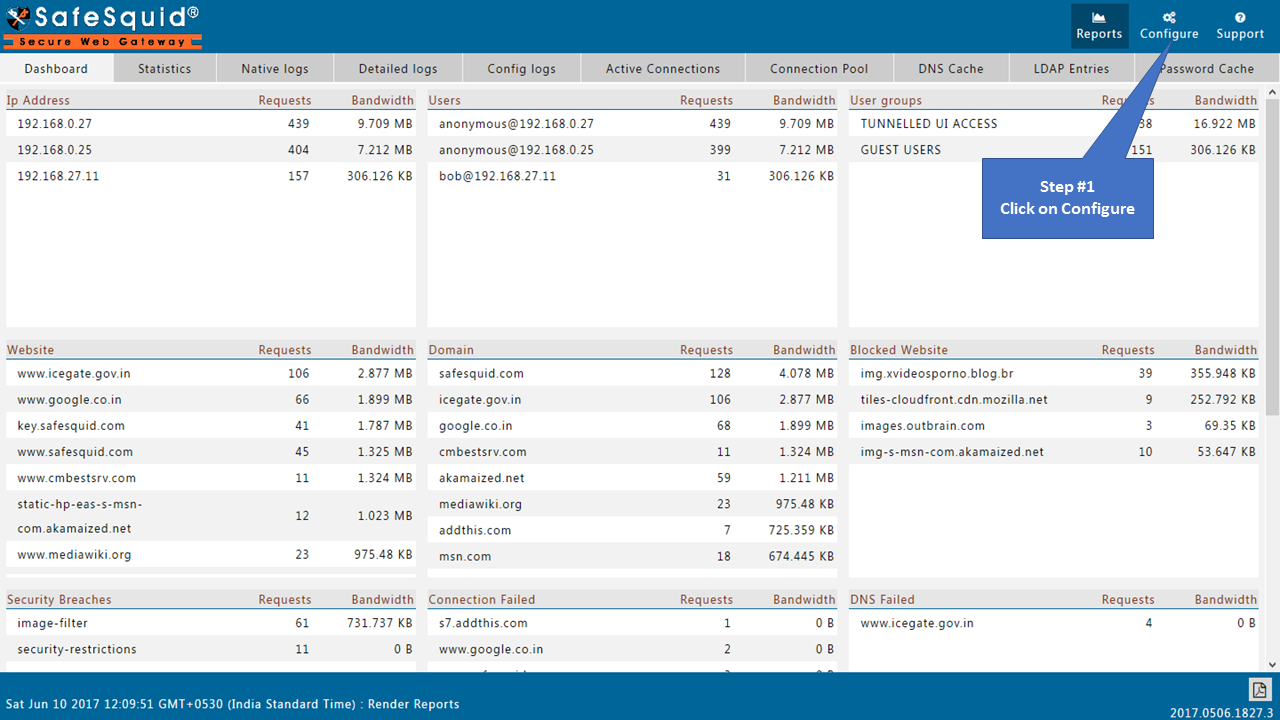

Go to Configure Page

Go to Configure Page Section to define User Groups That Correspond To Role-based Groups In LDAP

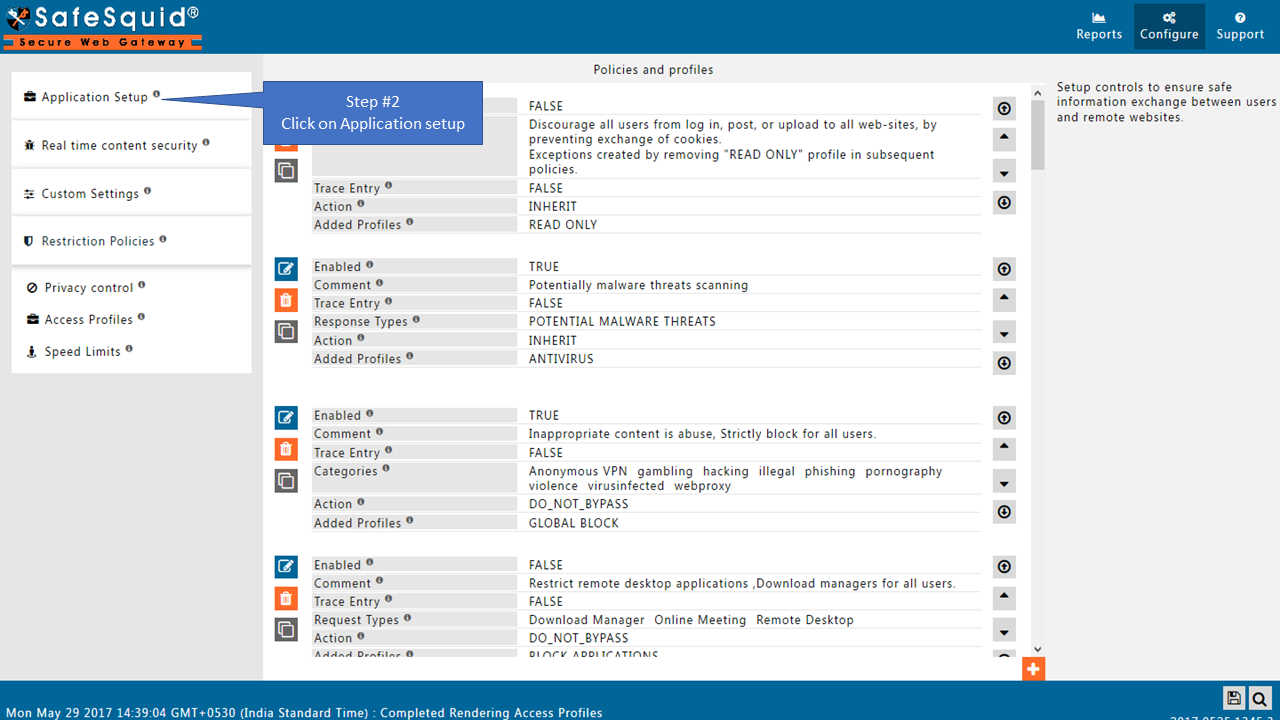

Go to Application Setup

Go to Application Setup to define User Groups That Correspond To Role-based Groups In LDAP

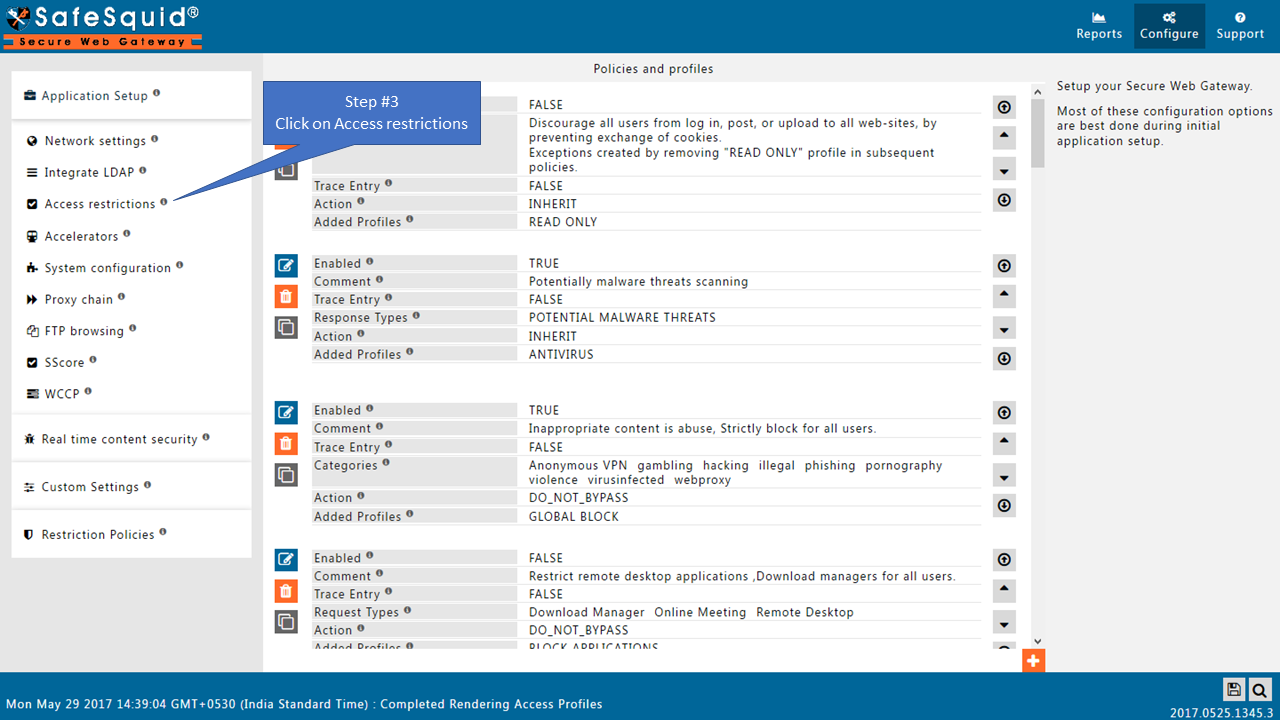

Go to Access Restrictions

Go to Access Restrictions to define User Groups That Correspond To Role-based Groups In LDAP

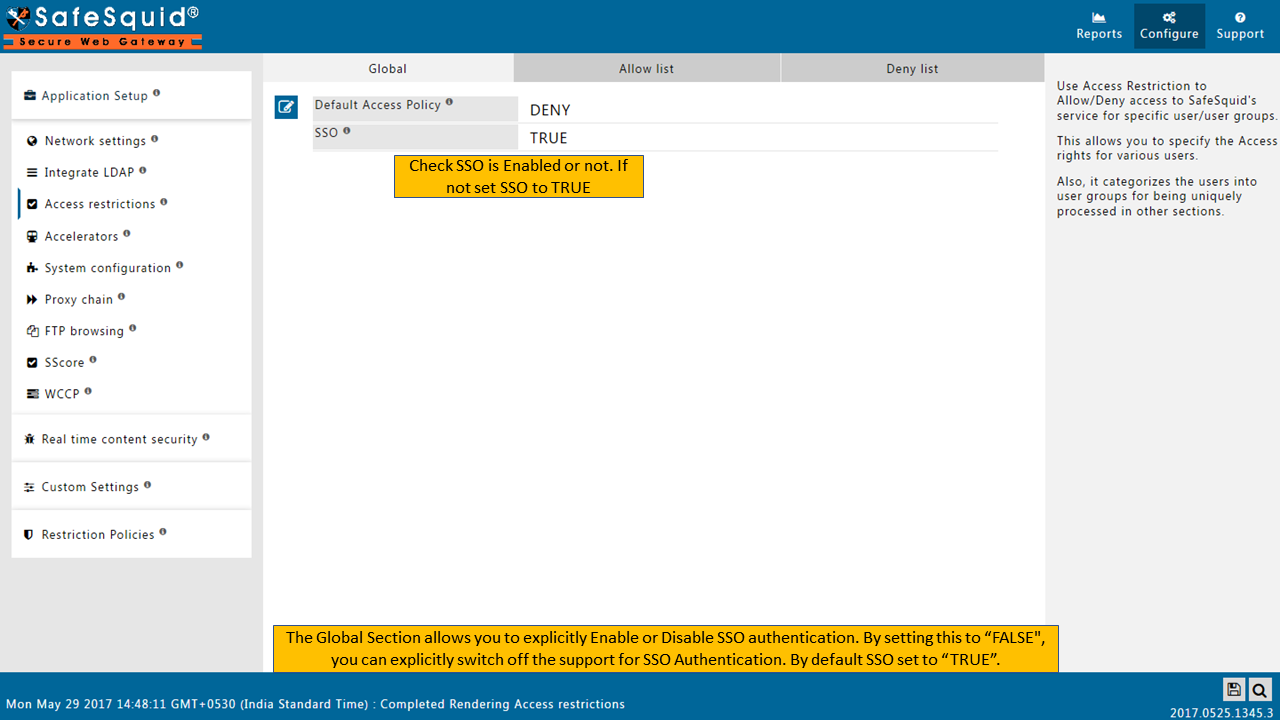

Enable SSO Authentication

How to Enable SSO Authentication

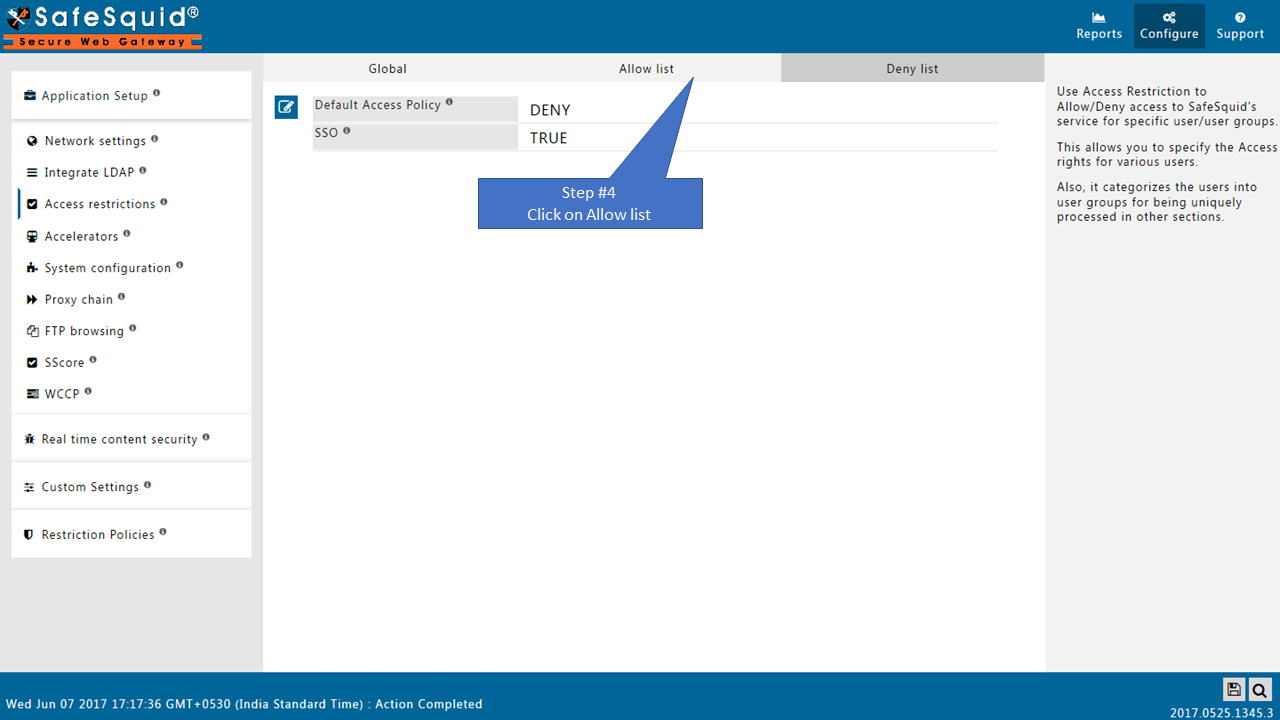

Go to Allow list

Go to Allow list section

Change the order of Default entries

See the working of each default Entry here

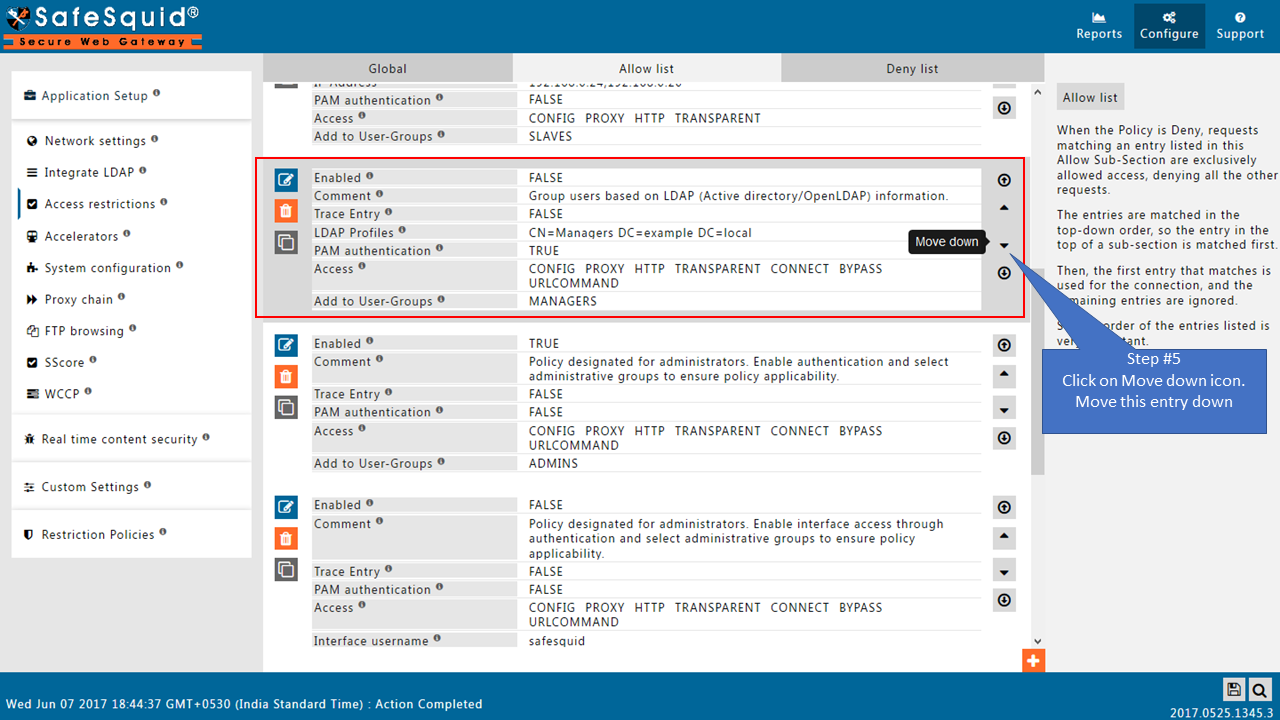

How to Change the order of Default entries by clicking move down icon

Add LDAP users

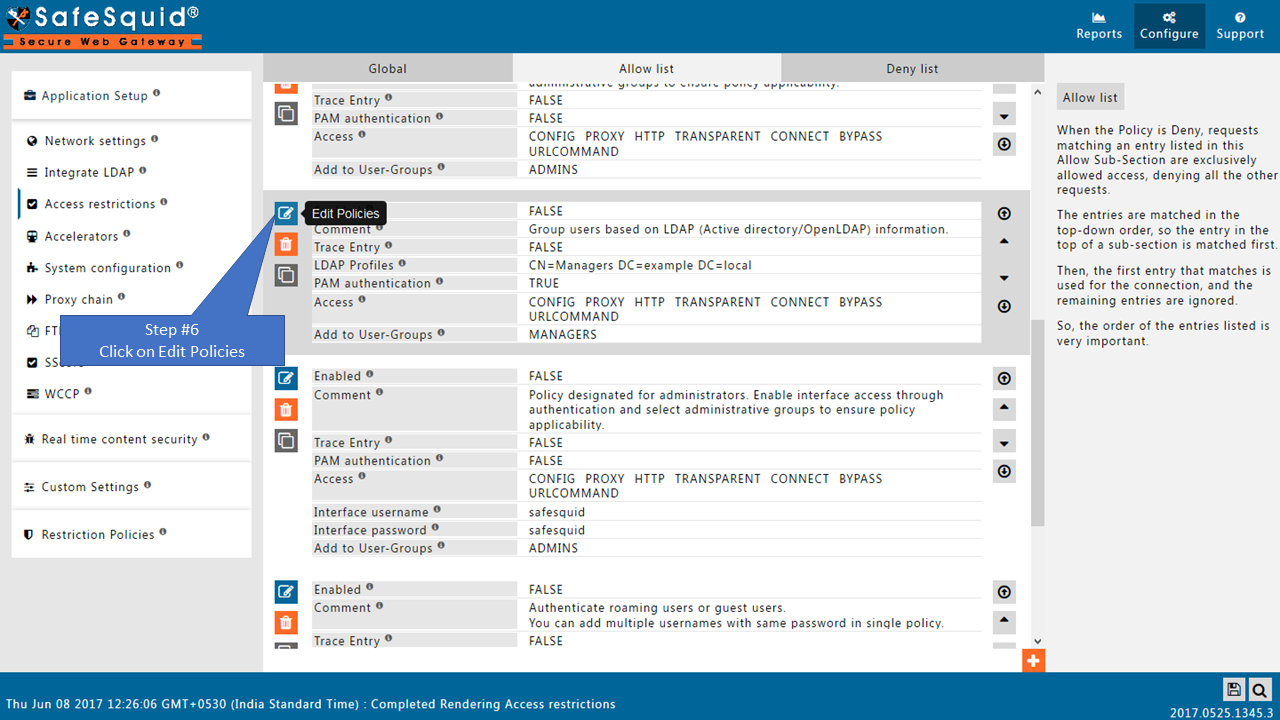

Edit Policies to add LDAP users

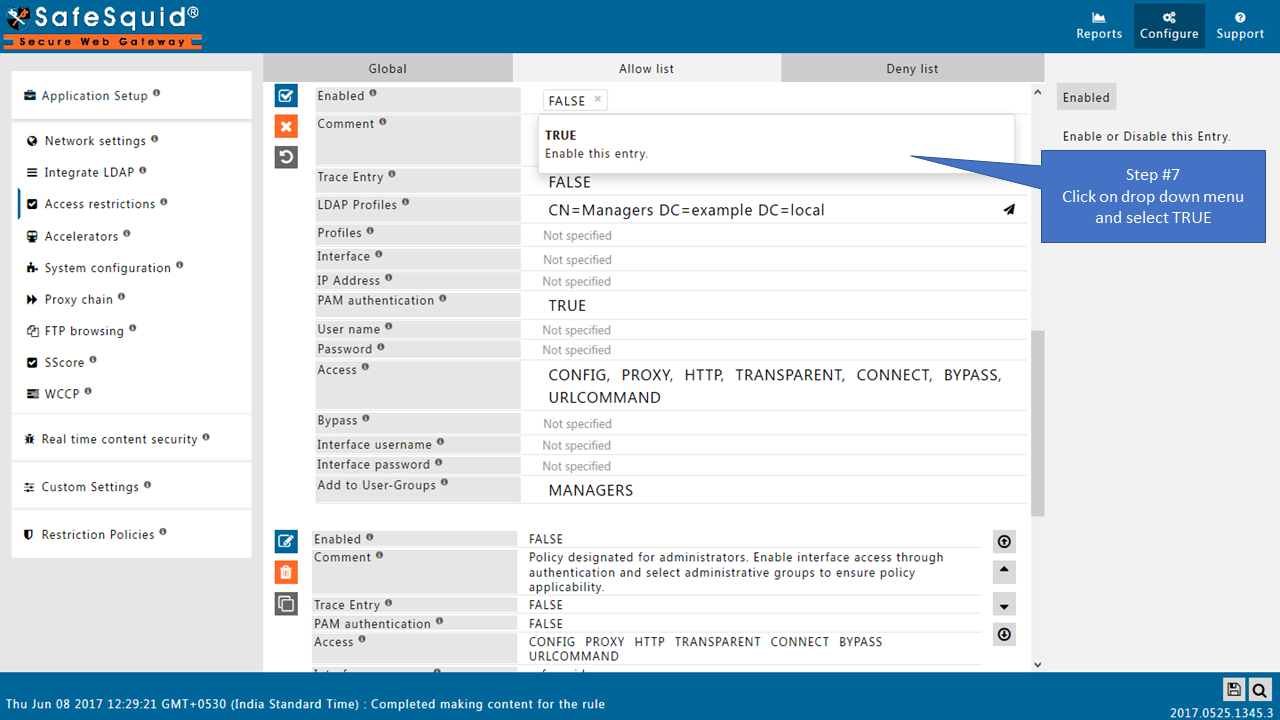

Edit Policies to add LDAP users 2 Enabled True option

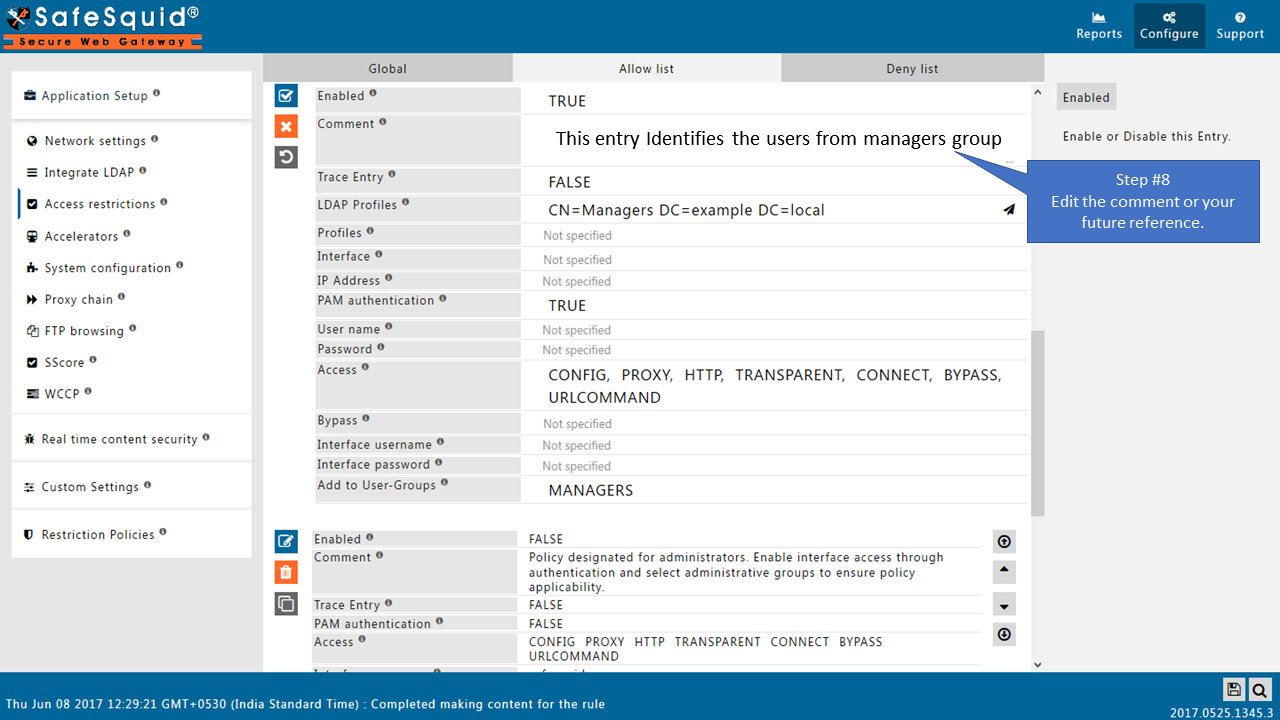

Edit Policies to add LDAP users - add comment
If your LDAP server is not integrated then you will not see any users list in the drop-down menu

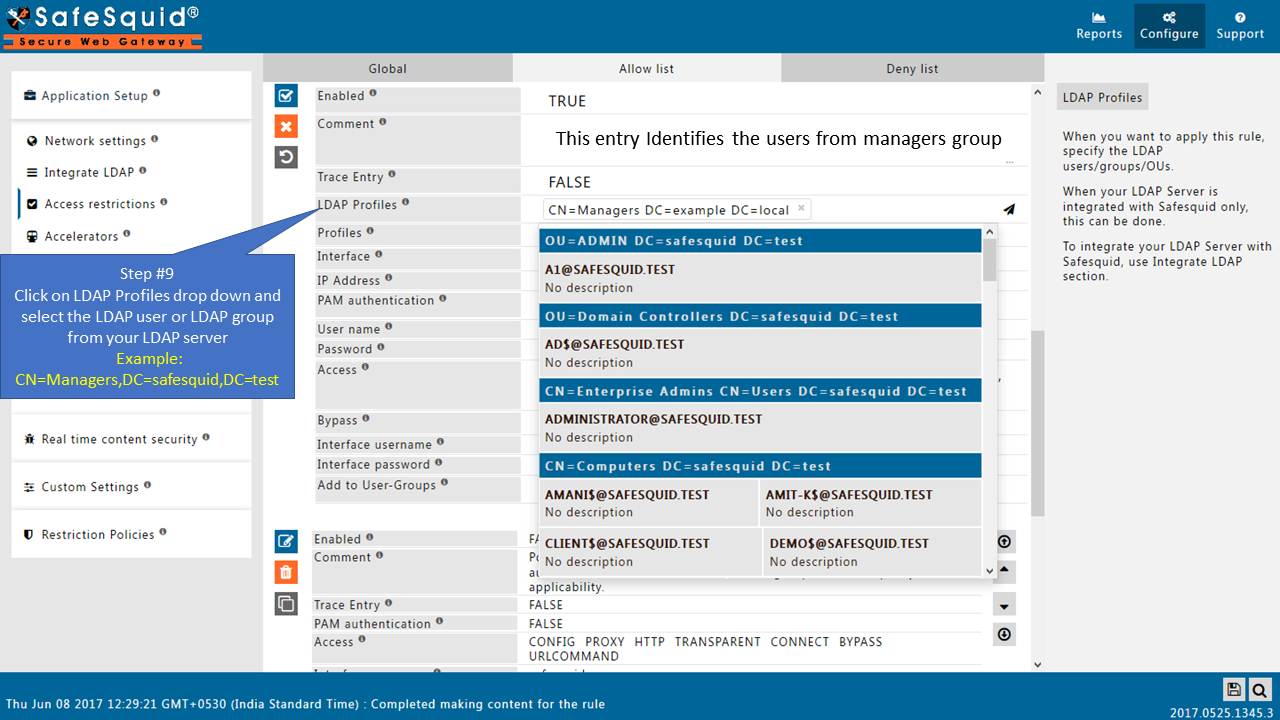

Edit Policies to add LDAP users - select LDAP User or Group

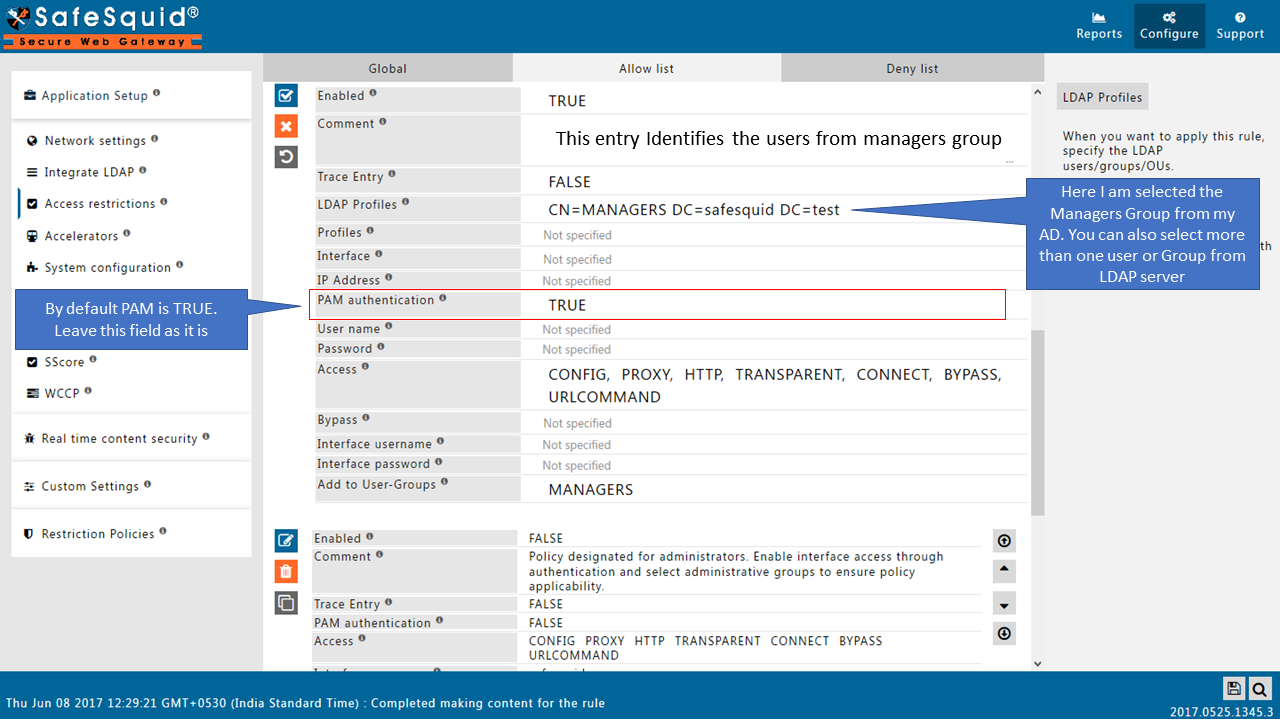

Edit Policies to add LDAP users - PAM Authentication
Edit Policies to add LDAP users - select Access option

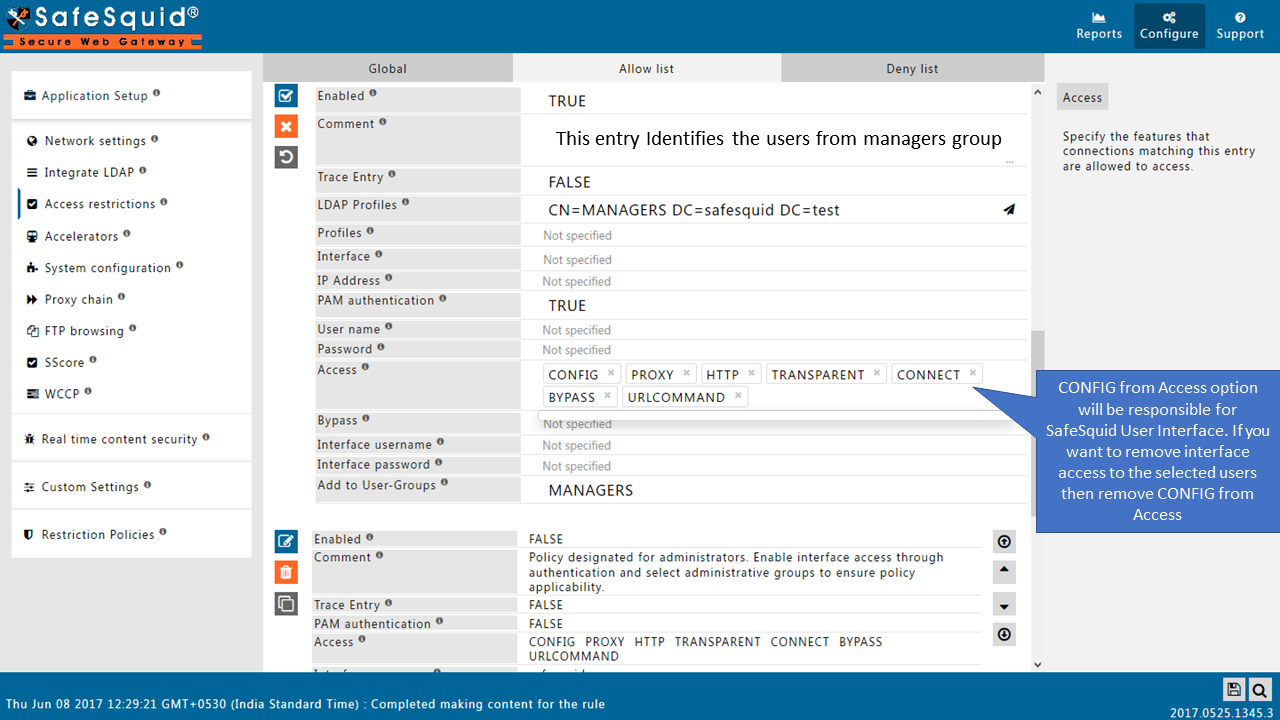

The config value in Access represents the SafeSquid Interface access

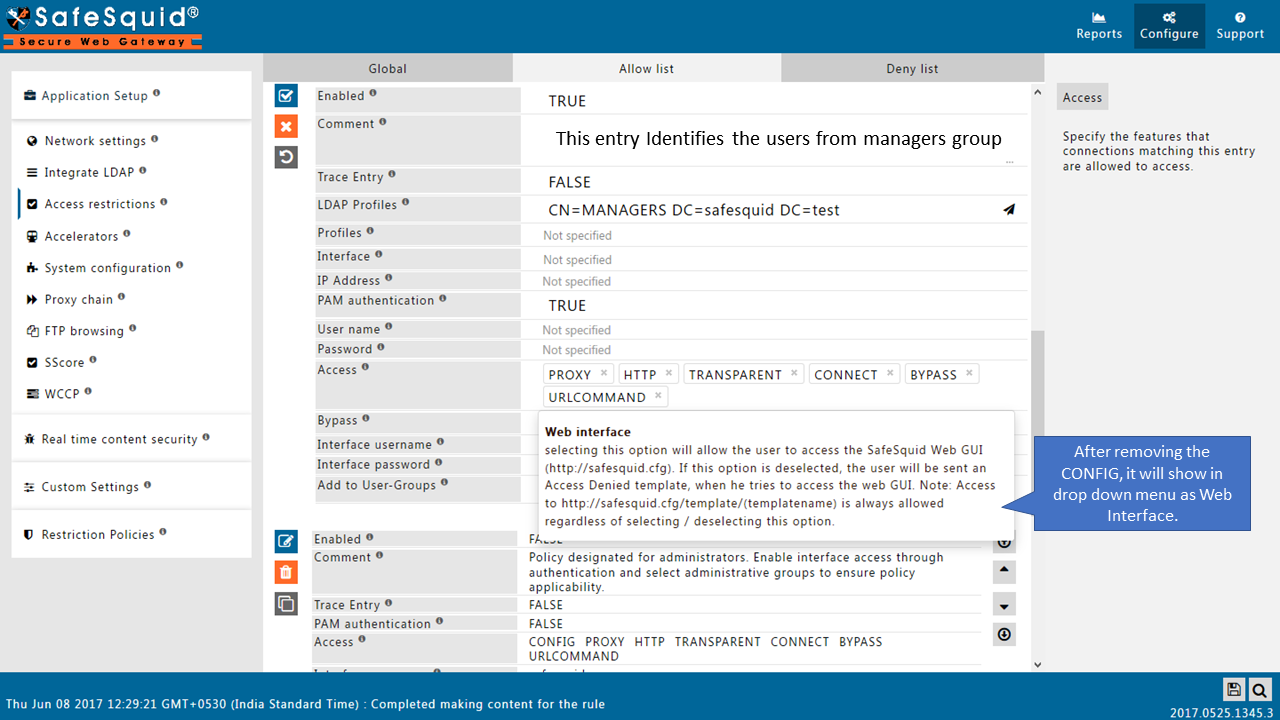

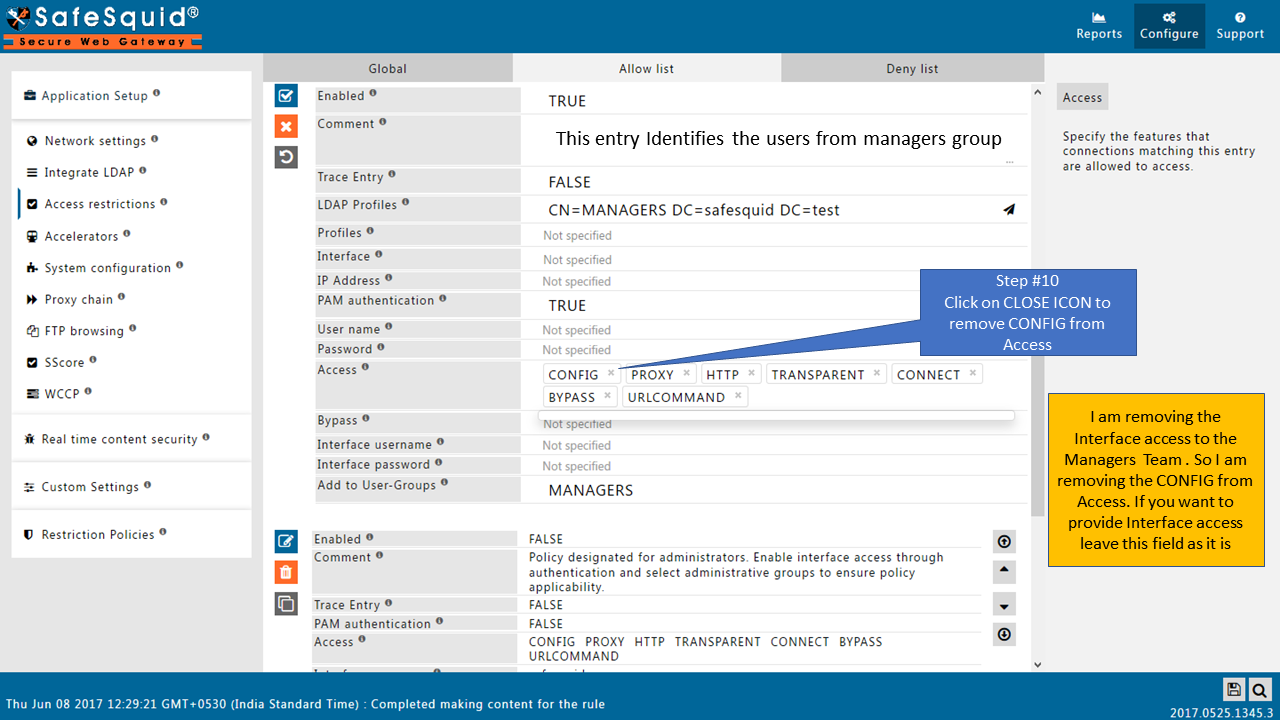

Edit Policies to add LDAP users - Remove Access option
Edit Policies to add LDAP users - Select Access option

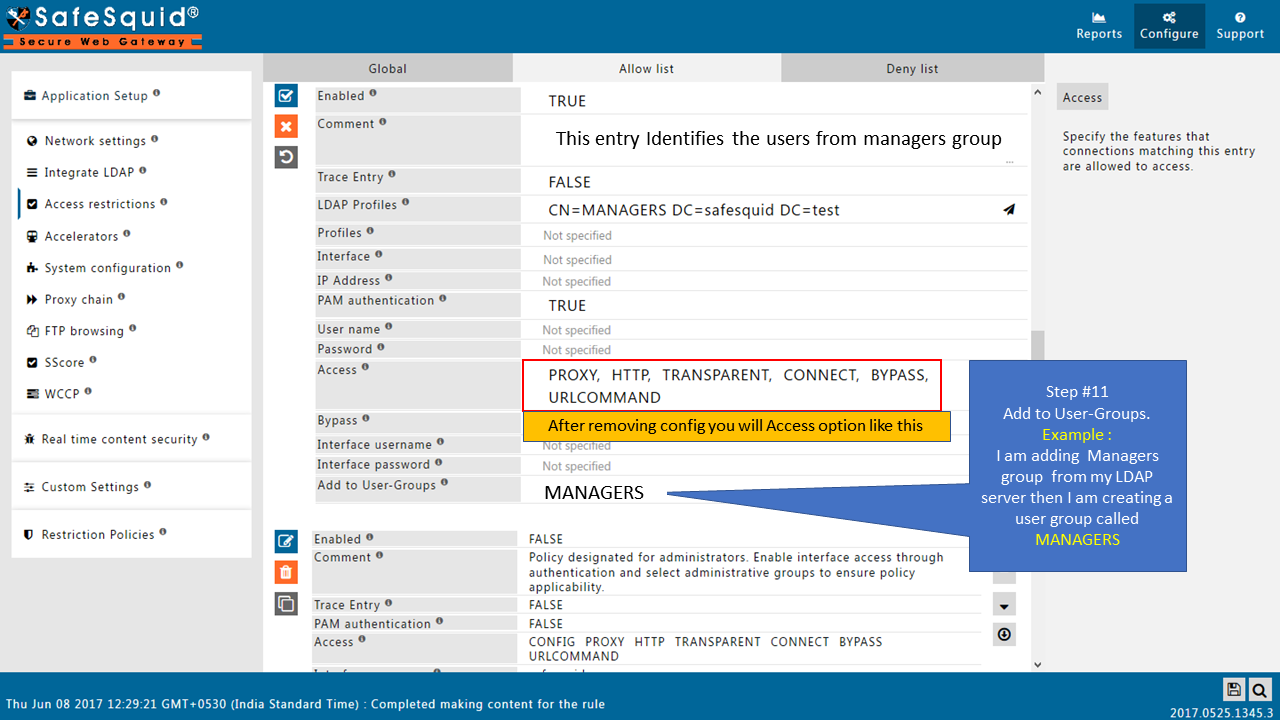

Edit Policies to add LDAP users - Add Usergroup

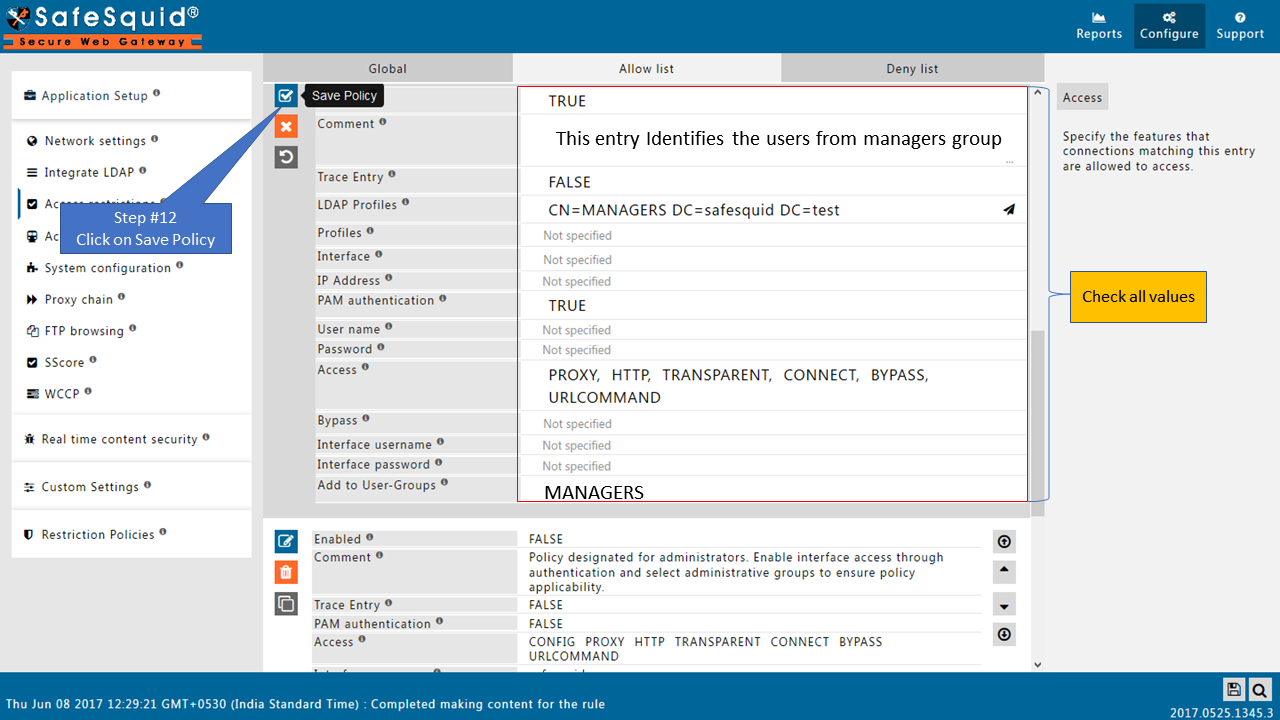

Edit Policies to add LDAP users - Save policy

Creating Multiple User Groups

You can also create the new entry at the bottom, but again you want to re order the entries. So, clone is the better way to add new user groups.

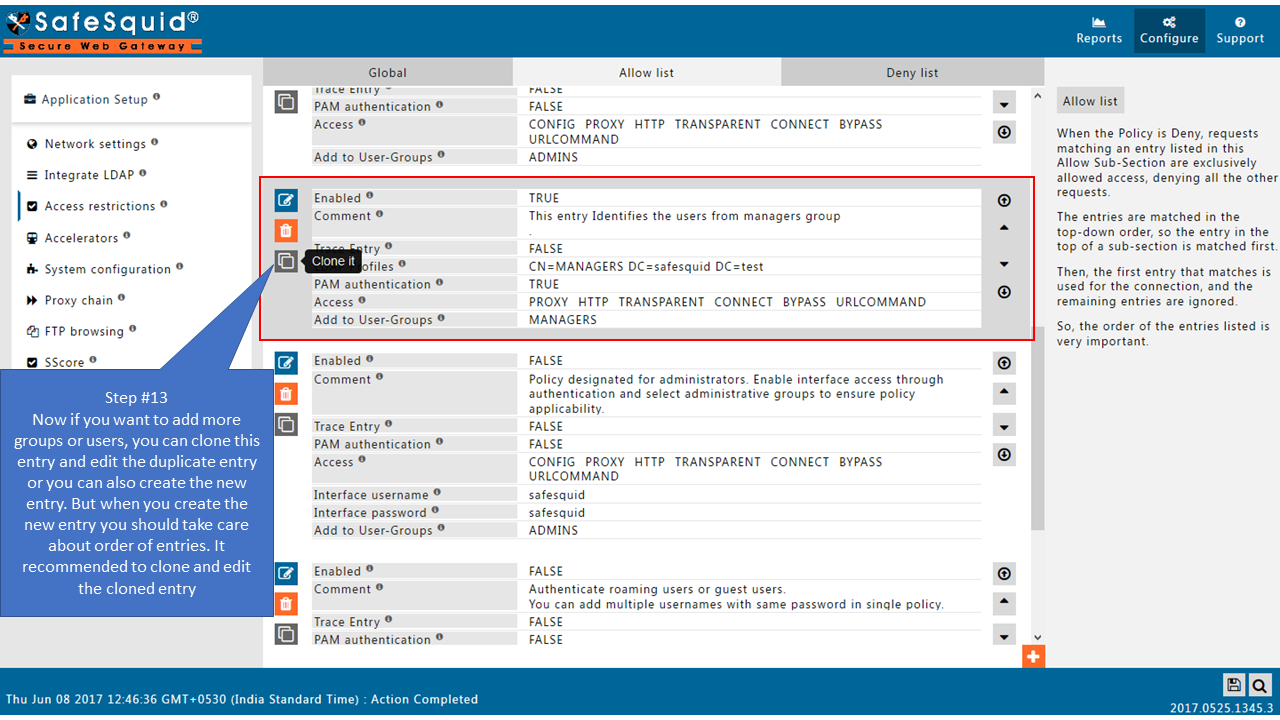

Clone Entry to add more entry for more user or group
Edit policies to add new user groups -

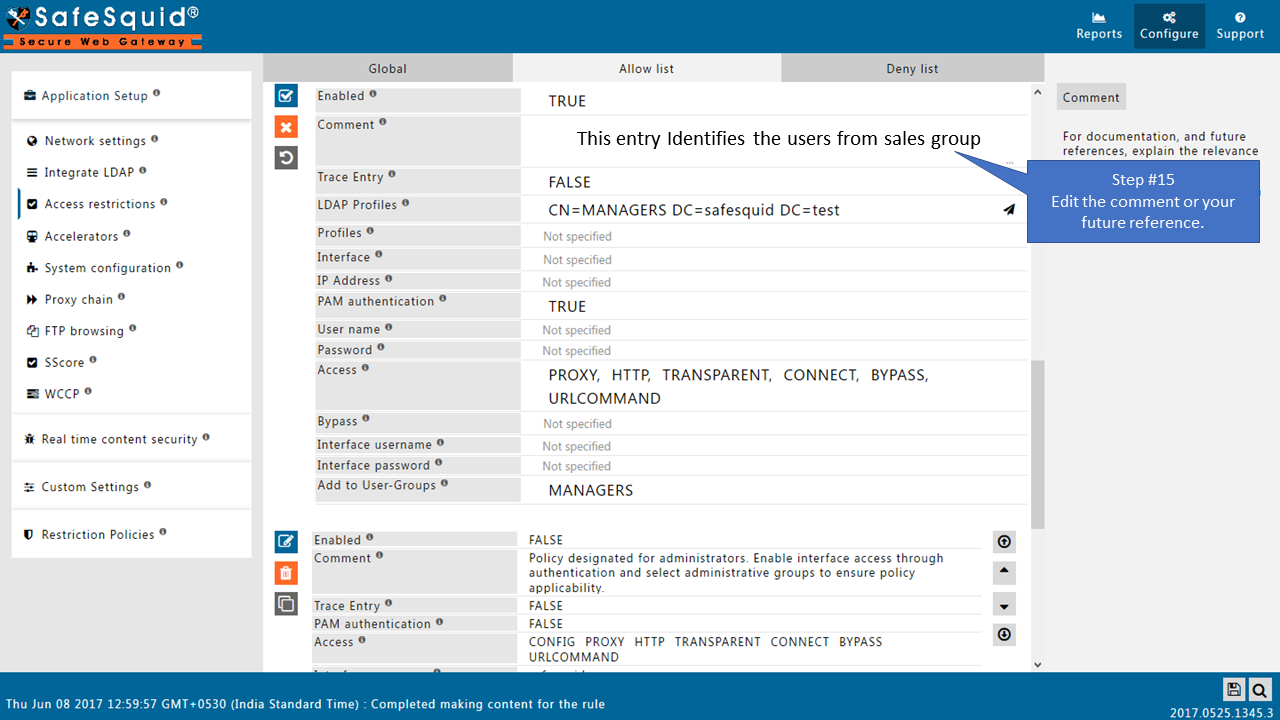

Edit comment

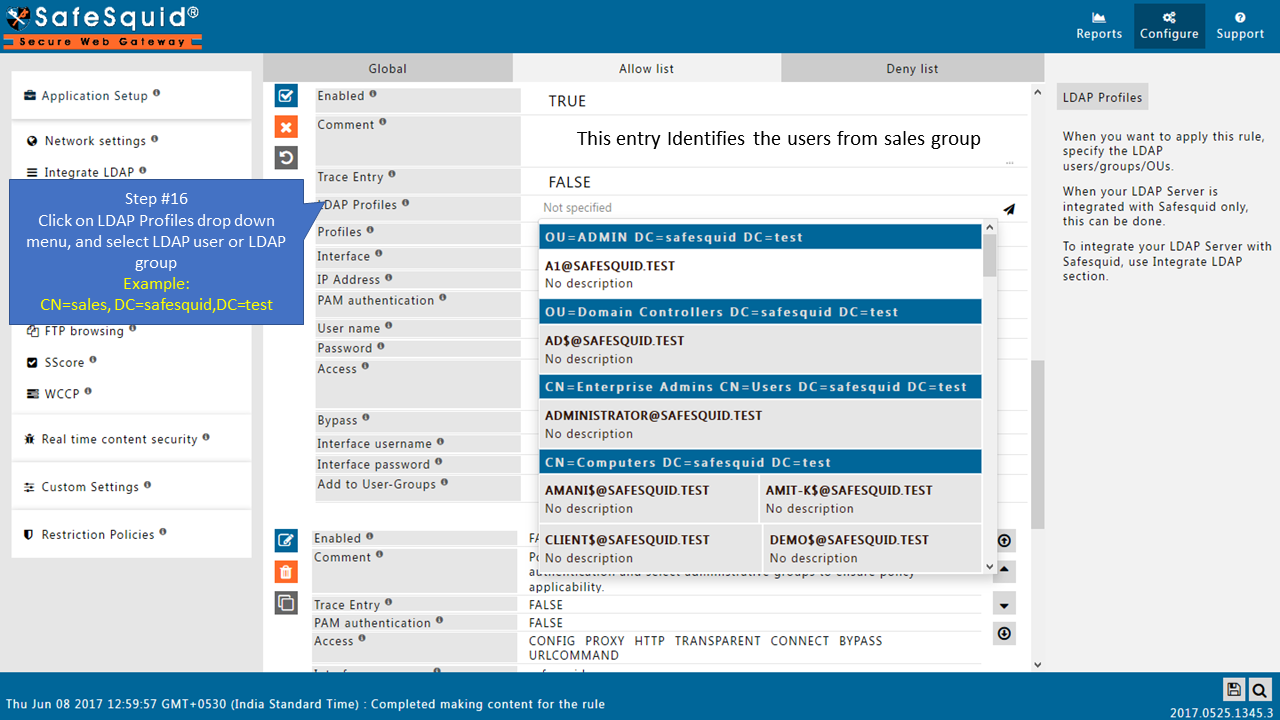

Select LDAP User or Group

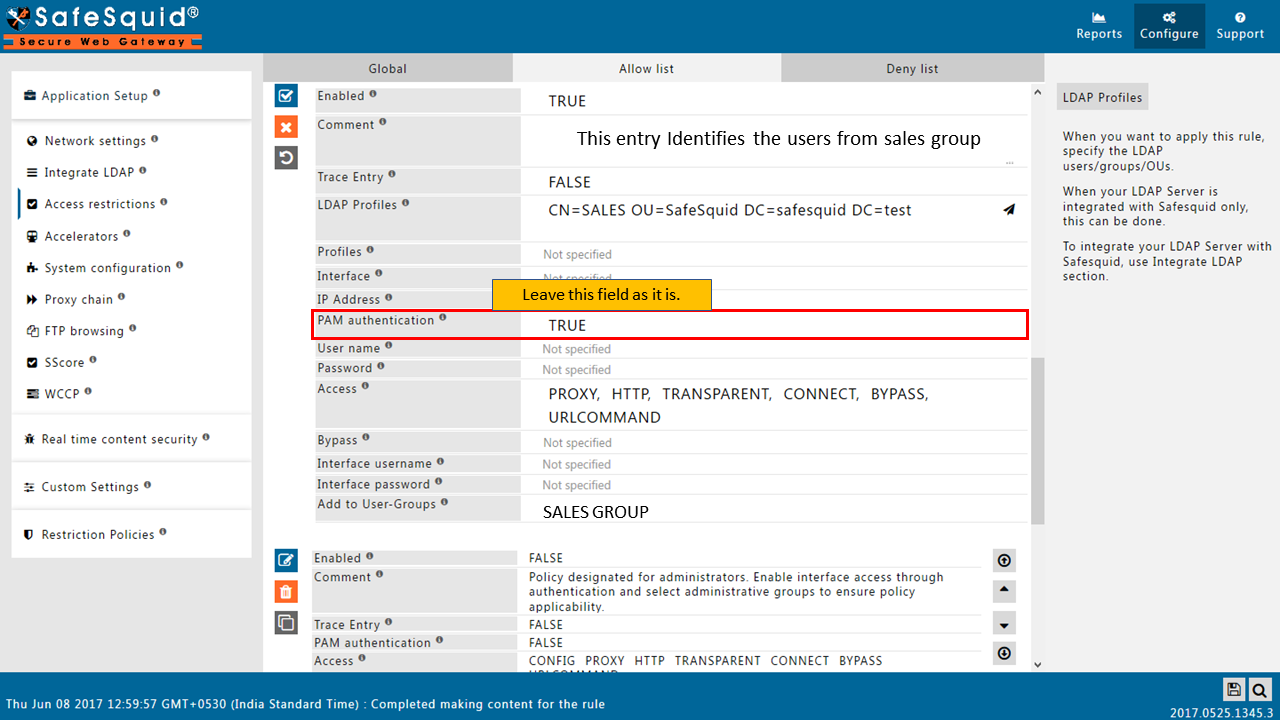

PAM Authentication for user

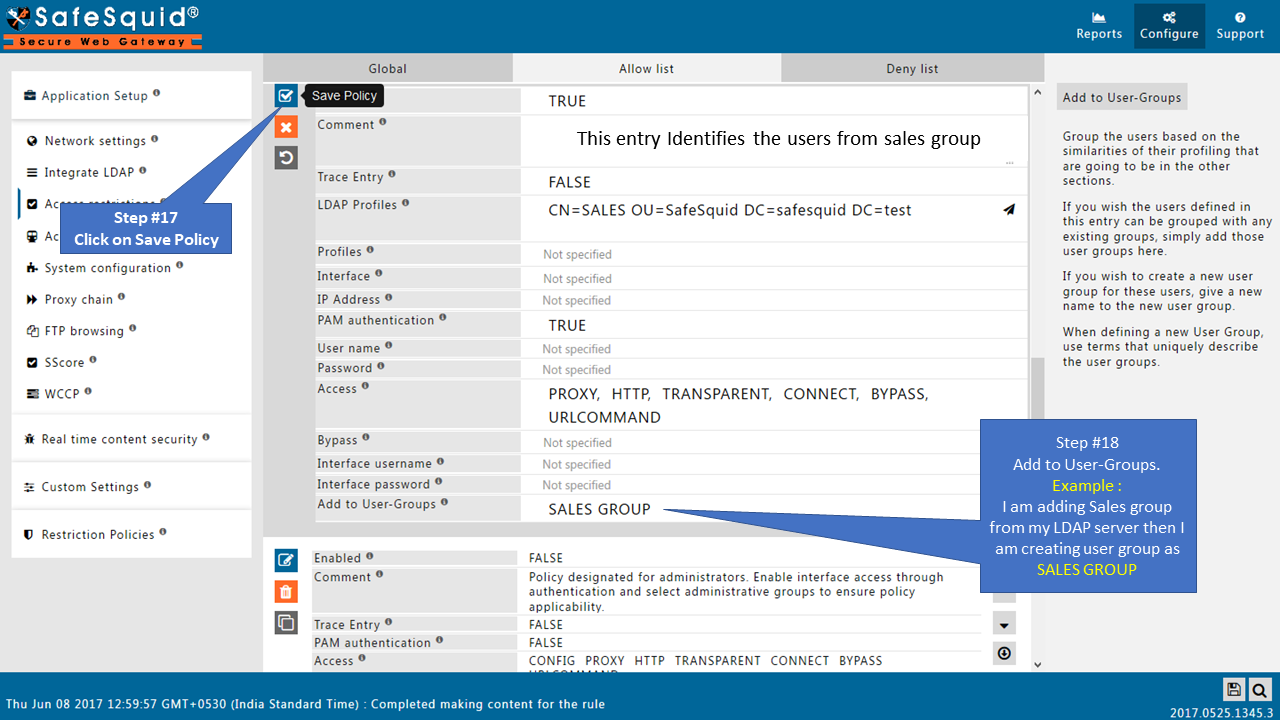

Create New user Group or select existing user group

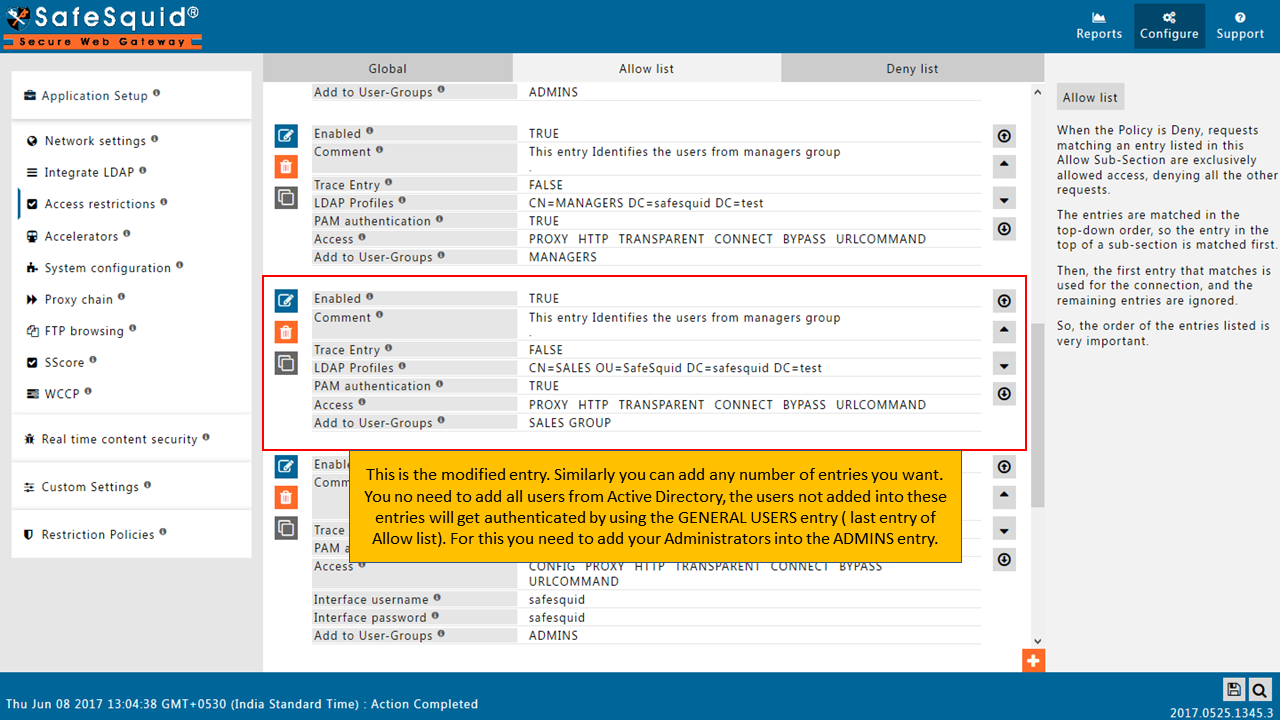

Modify Entry in allow list to define user group that correspond to role based groups in LDAP

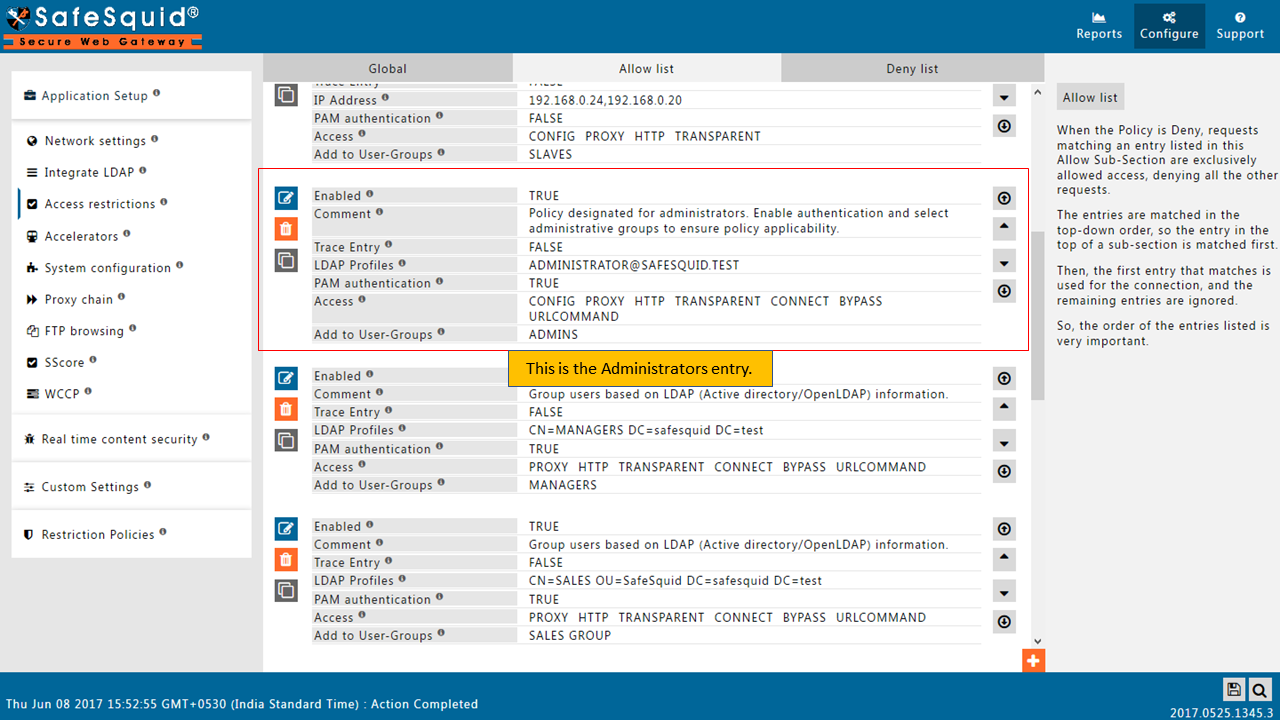

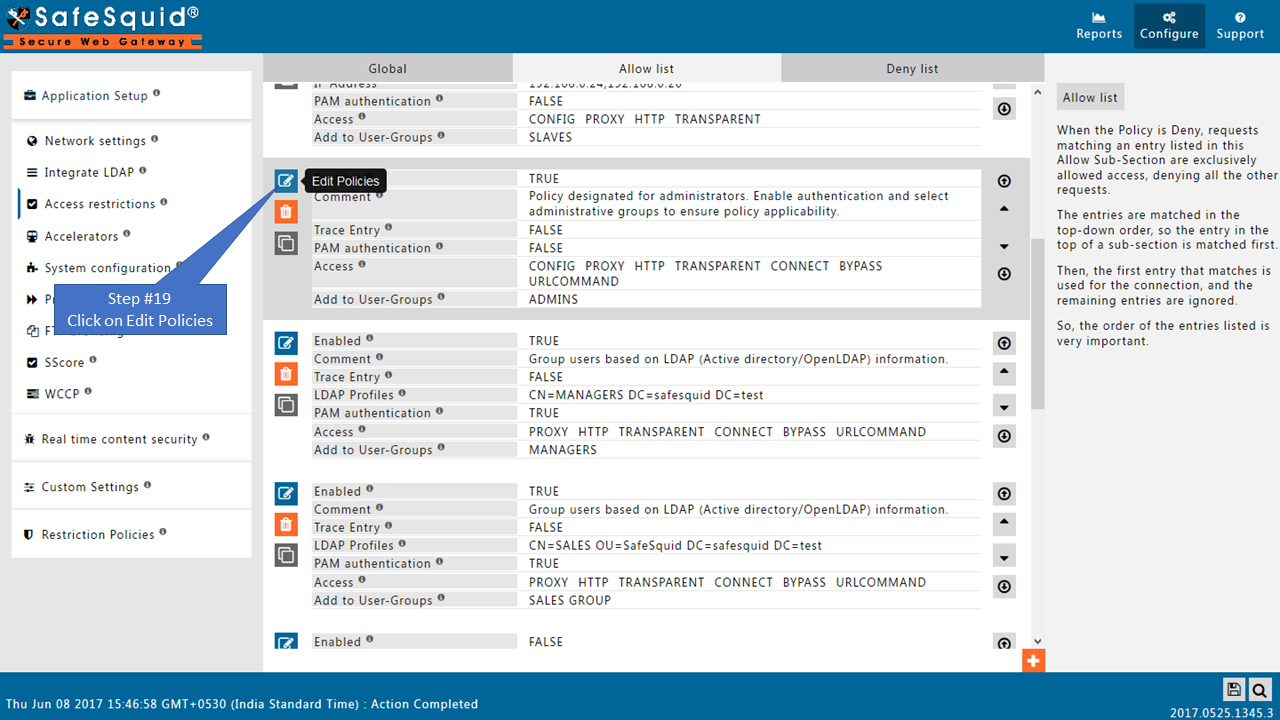

Adding Administrators in ADMINS entry

Adding Administrators in ADMINS entry
Here you should Add the logged in user with his Username and Password.
Example:
Now, I am accessing my SafeSquid interface from my Active Directory server with the following details
User: Administrator@safeSquid.test
Password: sarva@12345
Then I will add this user in the ADMINS entry.

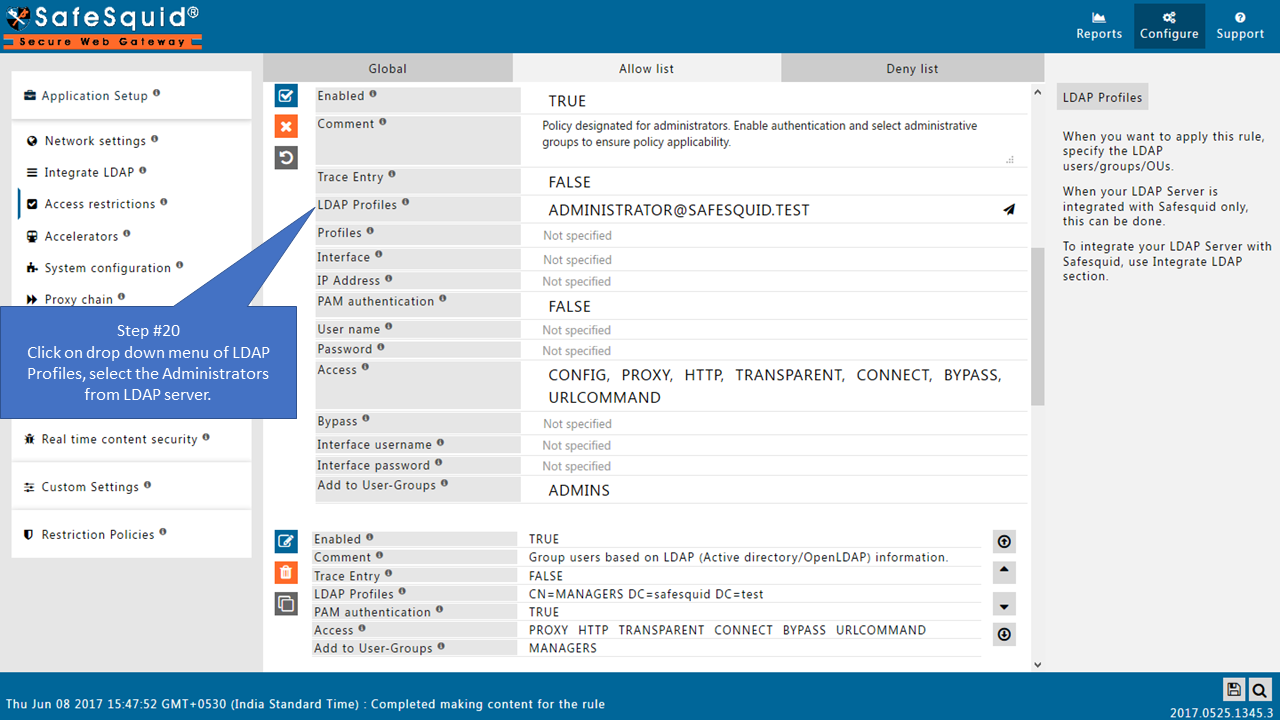

View Administrator from LDAP server in LDAP profile

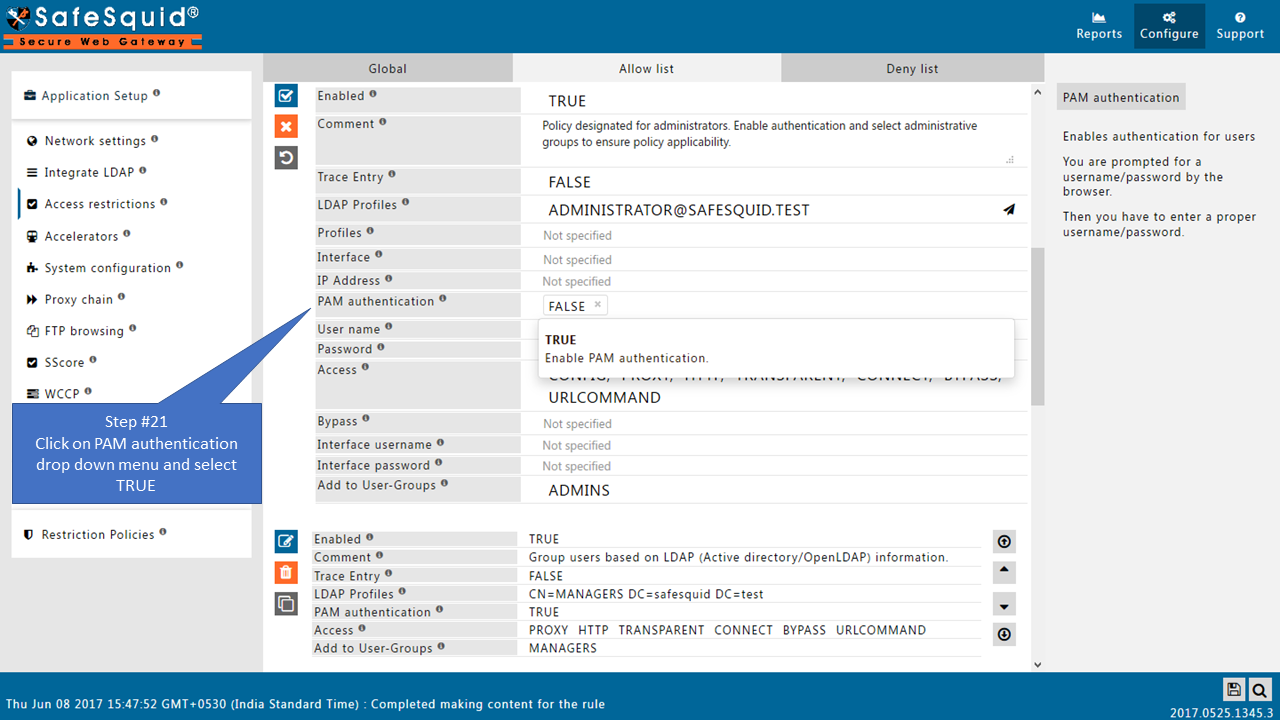

Select PAM authentication for Administrator from LDAP server in LDAP profile as true

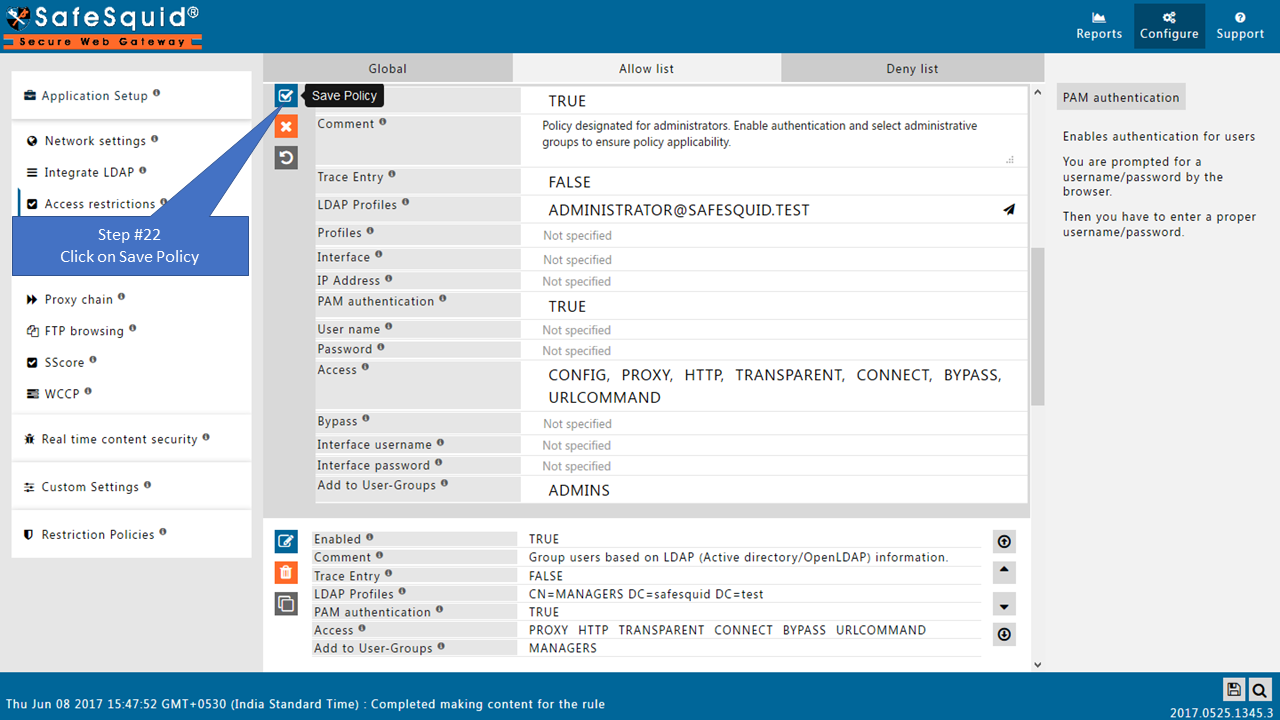

Save policy for with PAM authentication for Administrator from LDAP server in LDAP profile as true
After saving policy for with PAM authentication for Administrator from LDAP server in LDAP profile as true can be view in allow list

Check the Entry for General Users

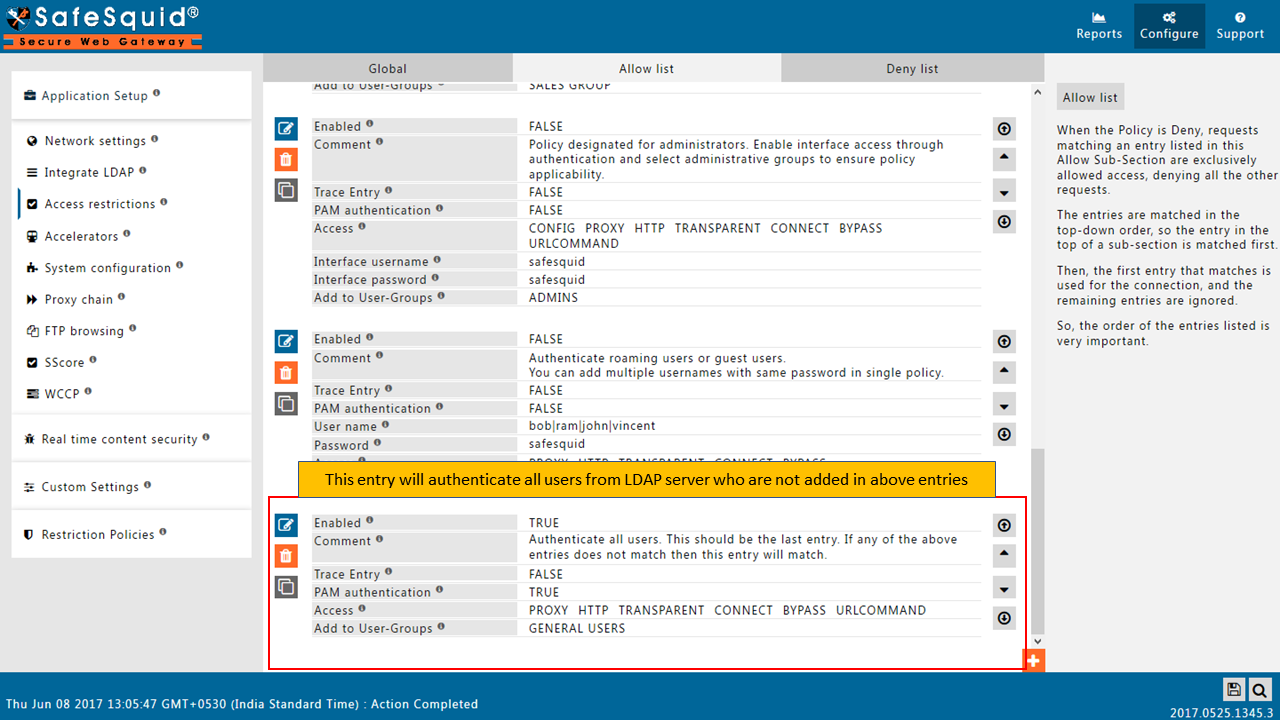

Check entry for general users in allow list
Testing User Authentication

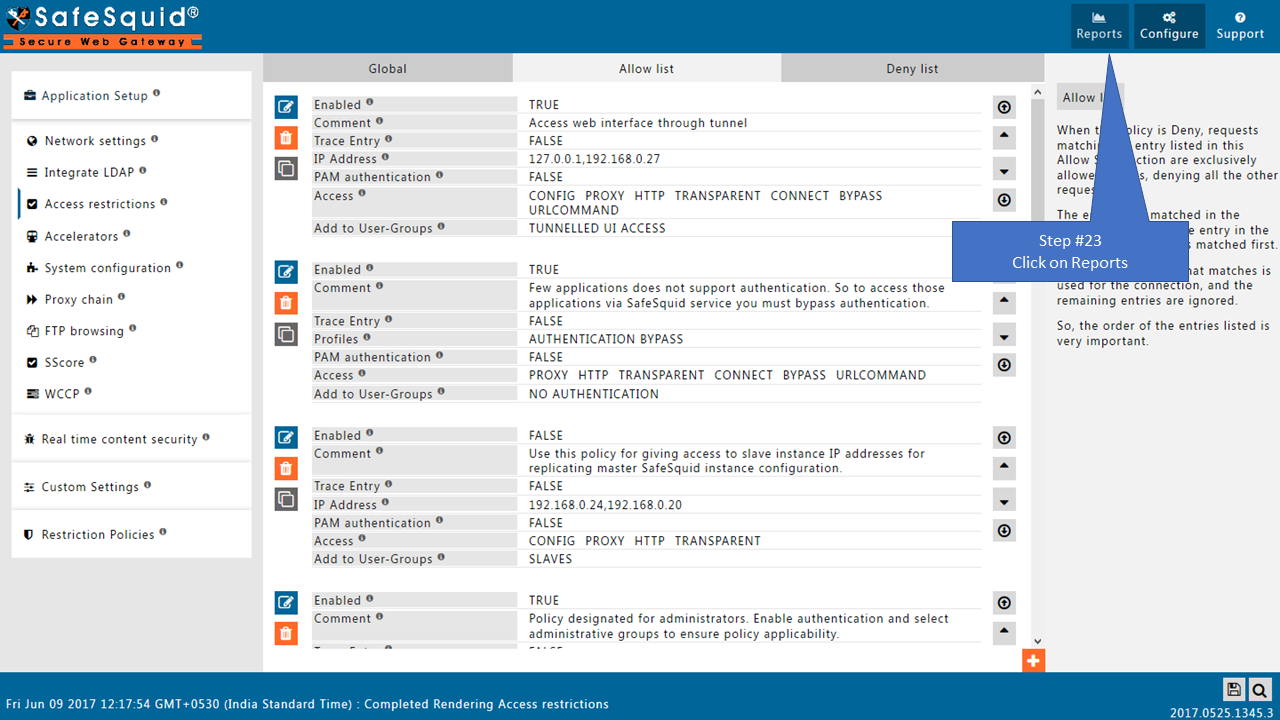

To view User Authentication click on reports

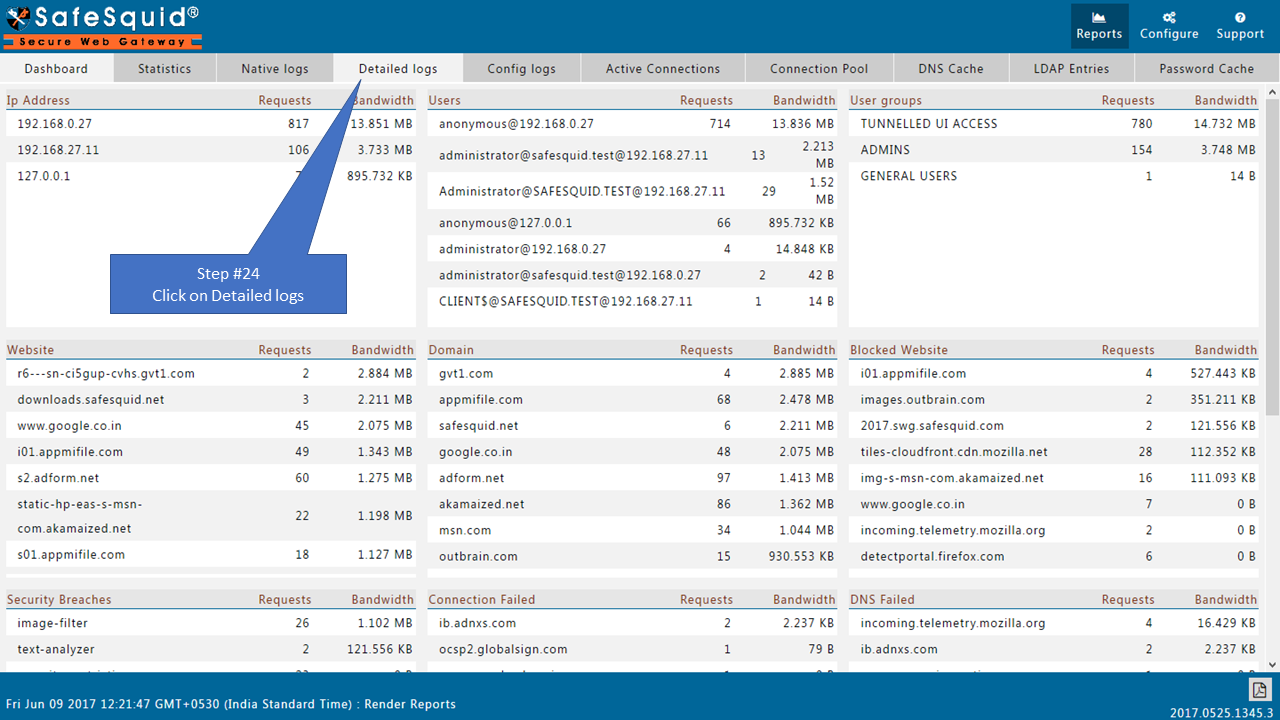

To view User Authentication click on detailed log

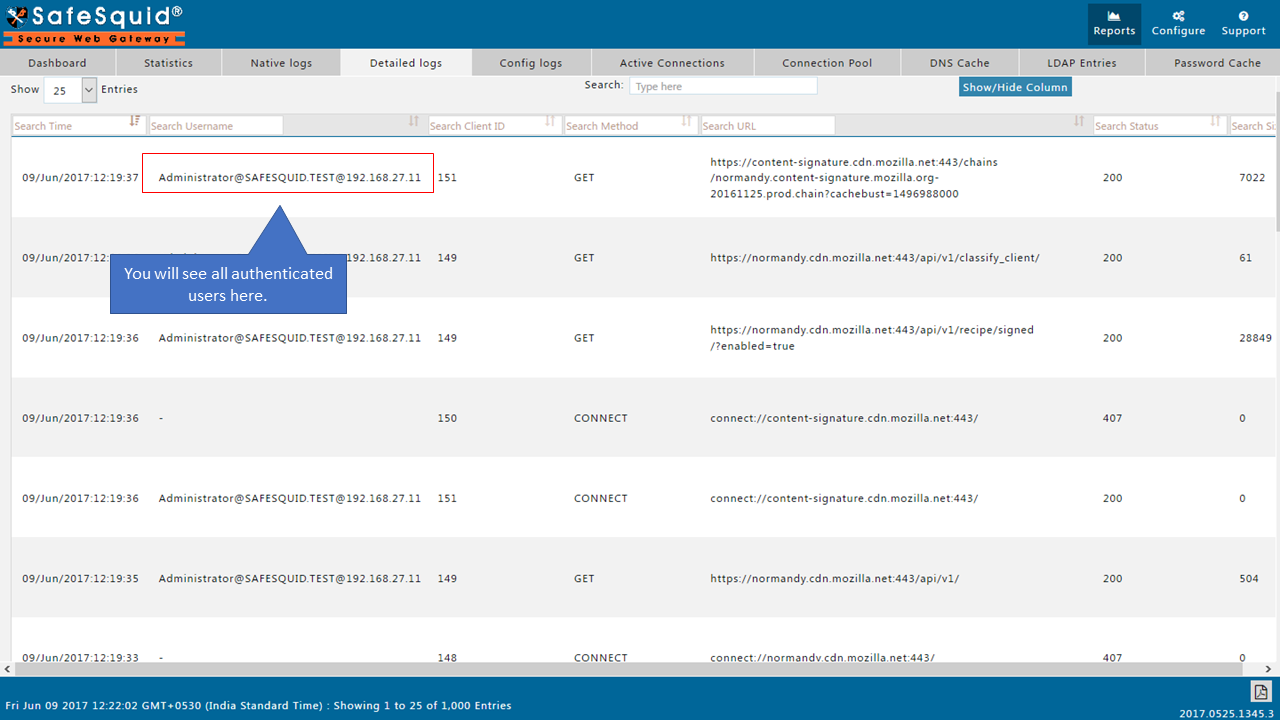

Authenticated user can be seen in detailed log section

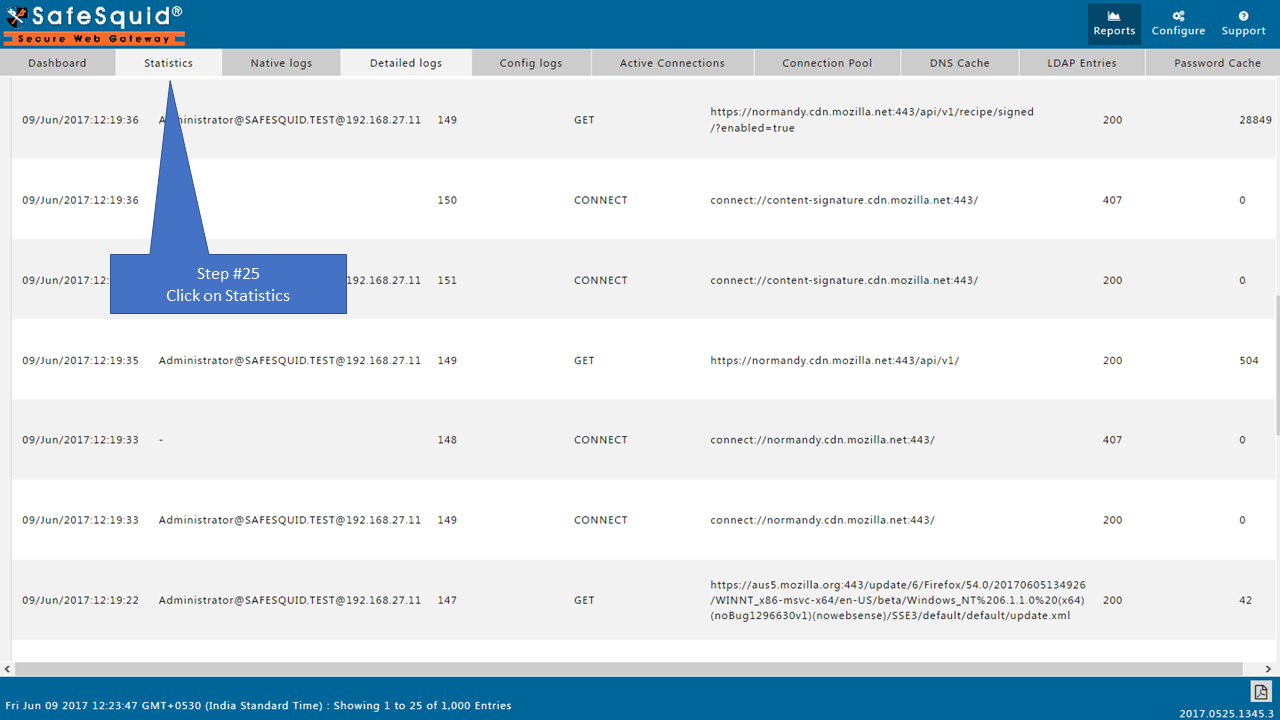

Click on statistics to view list of Authentication Failures

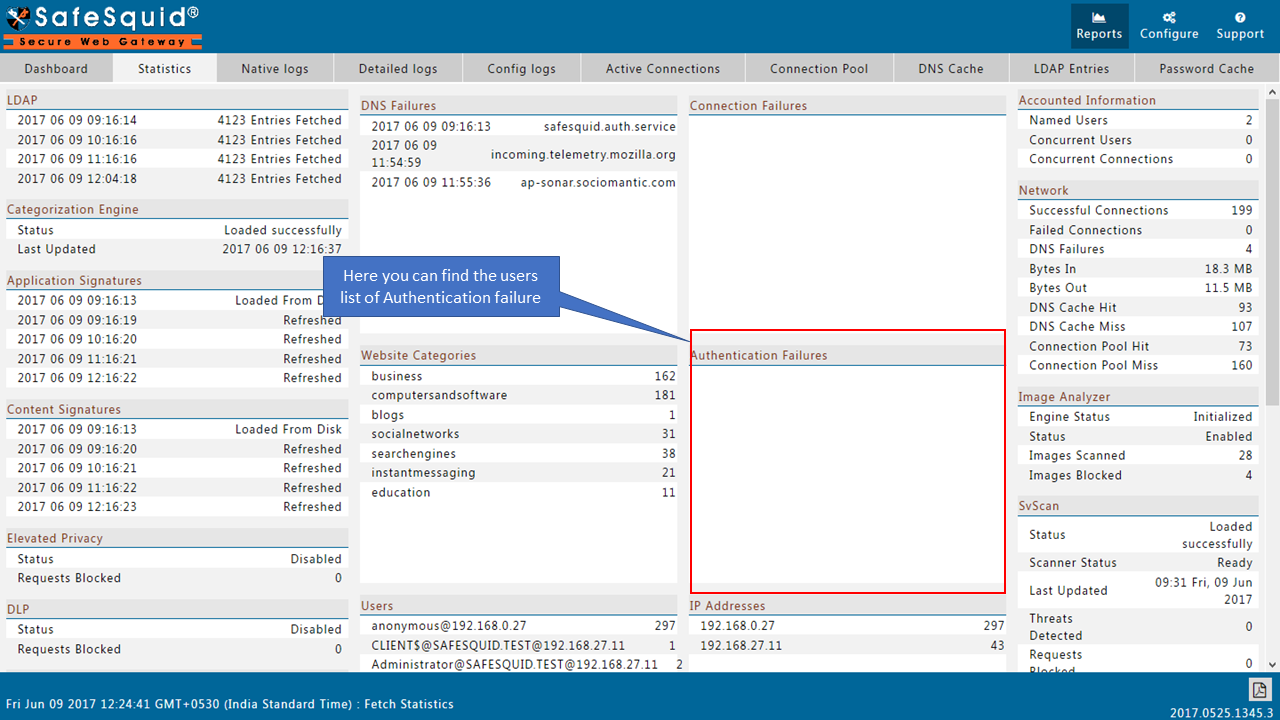

Check for Authentication Failures
Check for user list of Authentication Failures

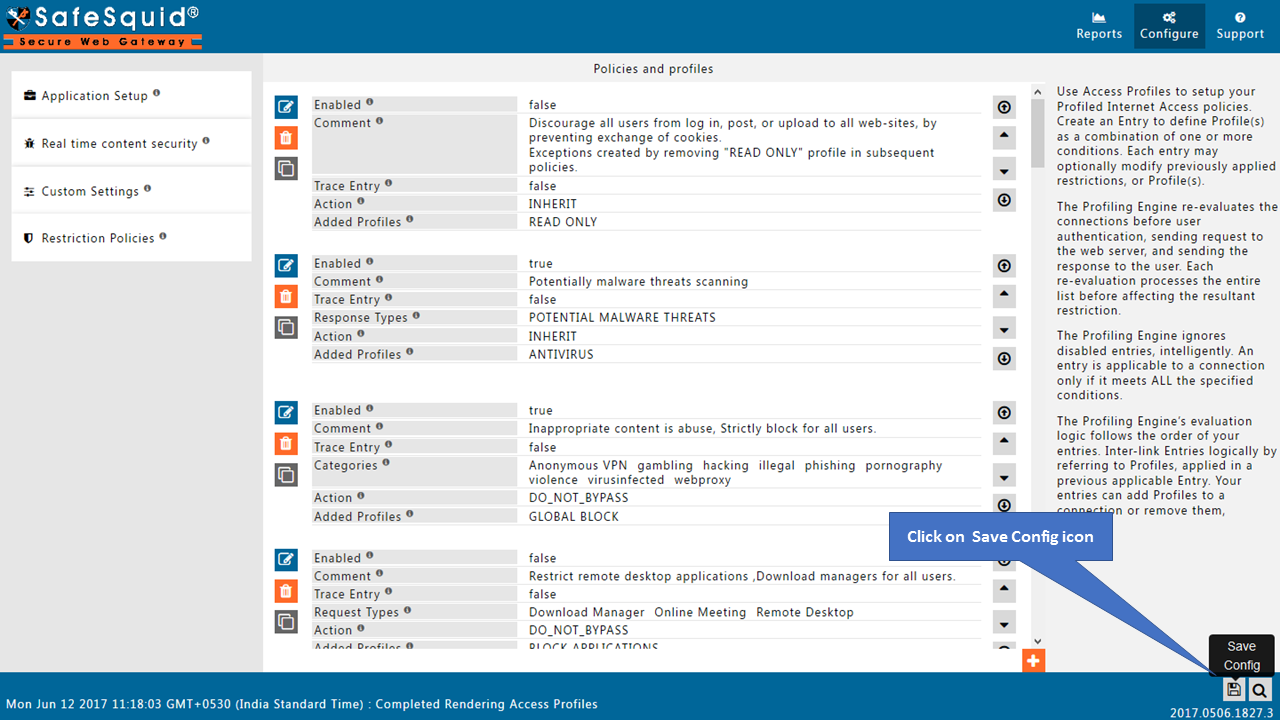

Save Configuration
When you click on Save config, it will give you a prompt for asking the confirmation to store your configuration into the cloud.
Select Yes only in below cases:
1) if you want to use this same configuration in other SafeSquid instances.
2) if your total configuration in all sections is completed and validated.
Otherwise select No and click on submit
Save configuration of policy that define user or user group
