Forwarding Logs to the Siem Server by Configuring the UDP Port

Forwarding Logs to the Siem Server by Configuring the UDP Port

How to configure?

  1. Go to SafeSquid Interface
  2. Click on Support in the right top corner.
  3. Click on the Startup Params menu.
EXTENDED_UDP_IP         : Syslog server IP or Siem IP
NATIVE_UDP_IP                : Syslog server IP or Siem IP
EXTENDED_UDP_PORT   : UDP Port (514)
NATIVE_UDP_PORT          :  UDP Port (514)

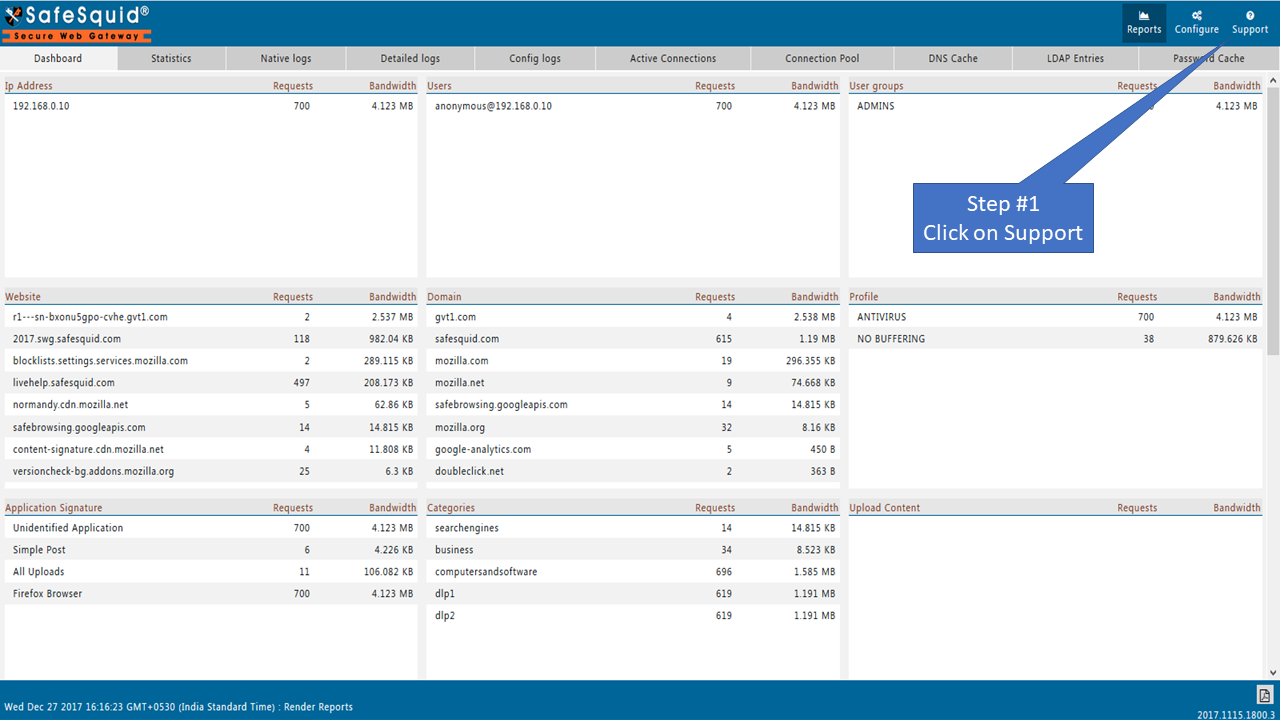

clicking on support in safesquid interface

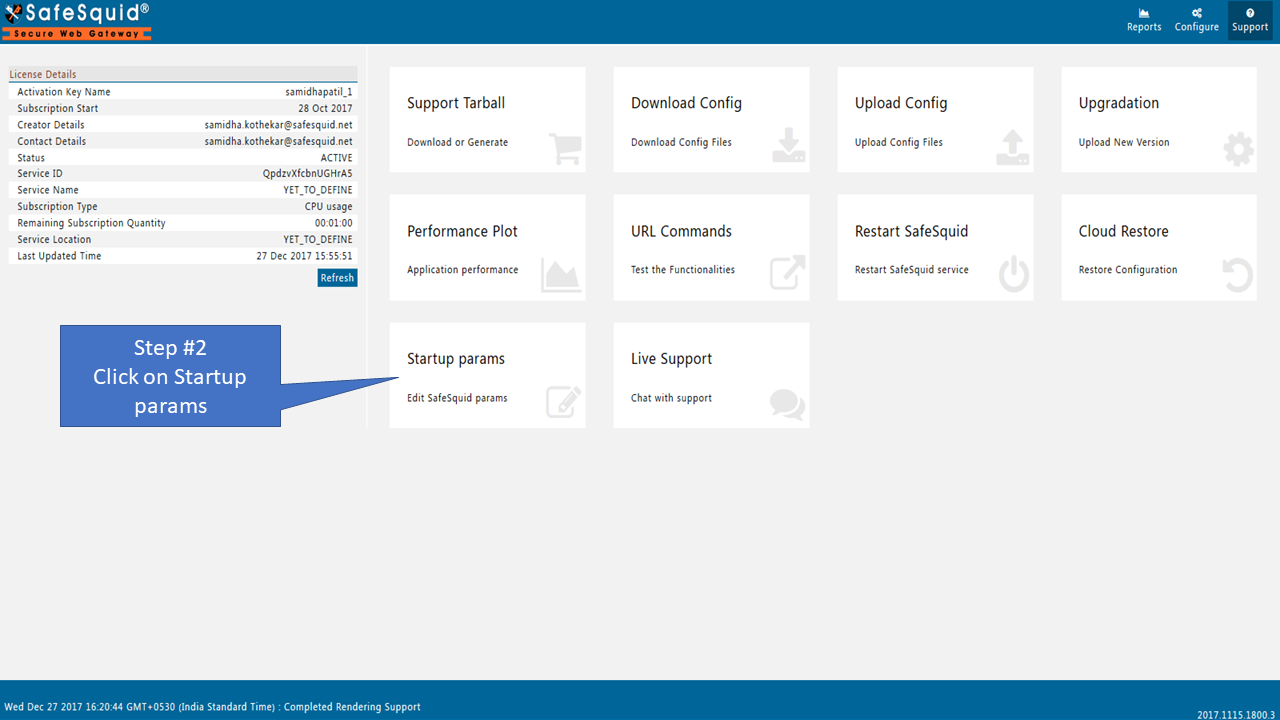

clicking on startup params

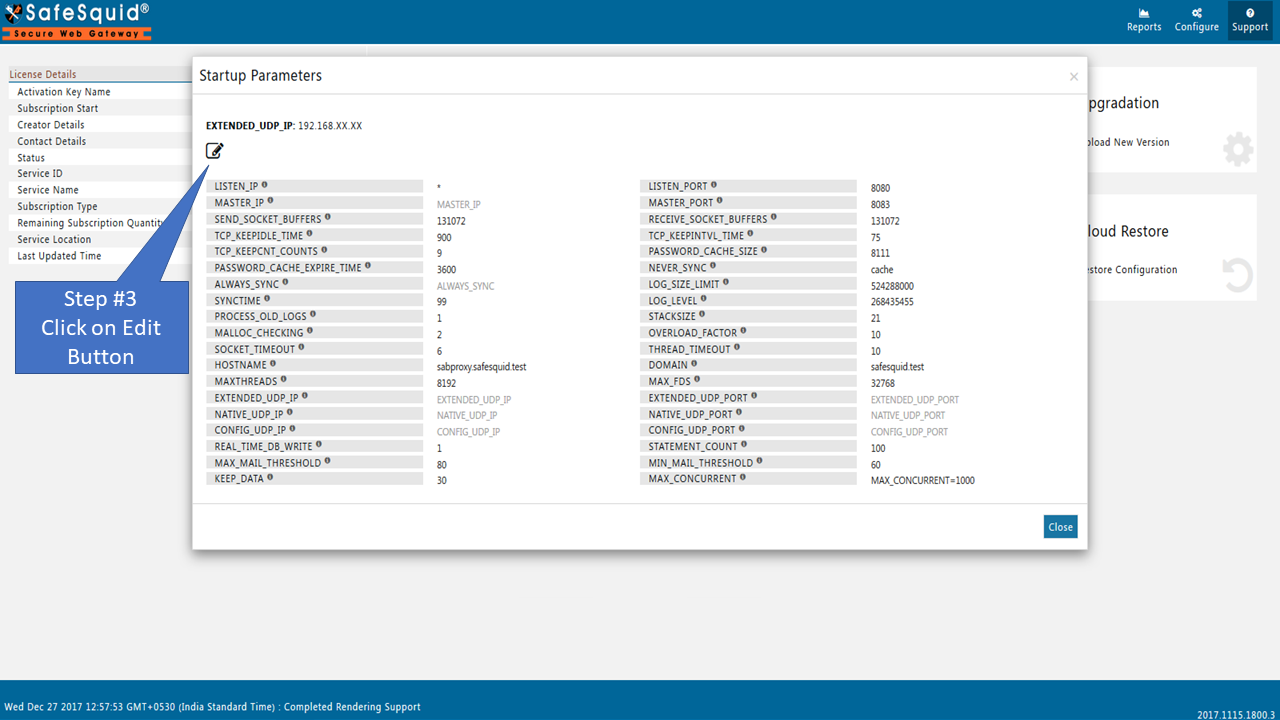

clicking on edit button

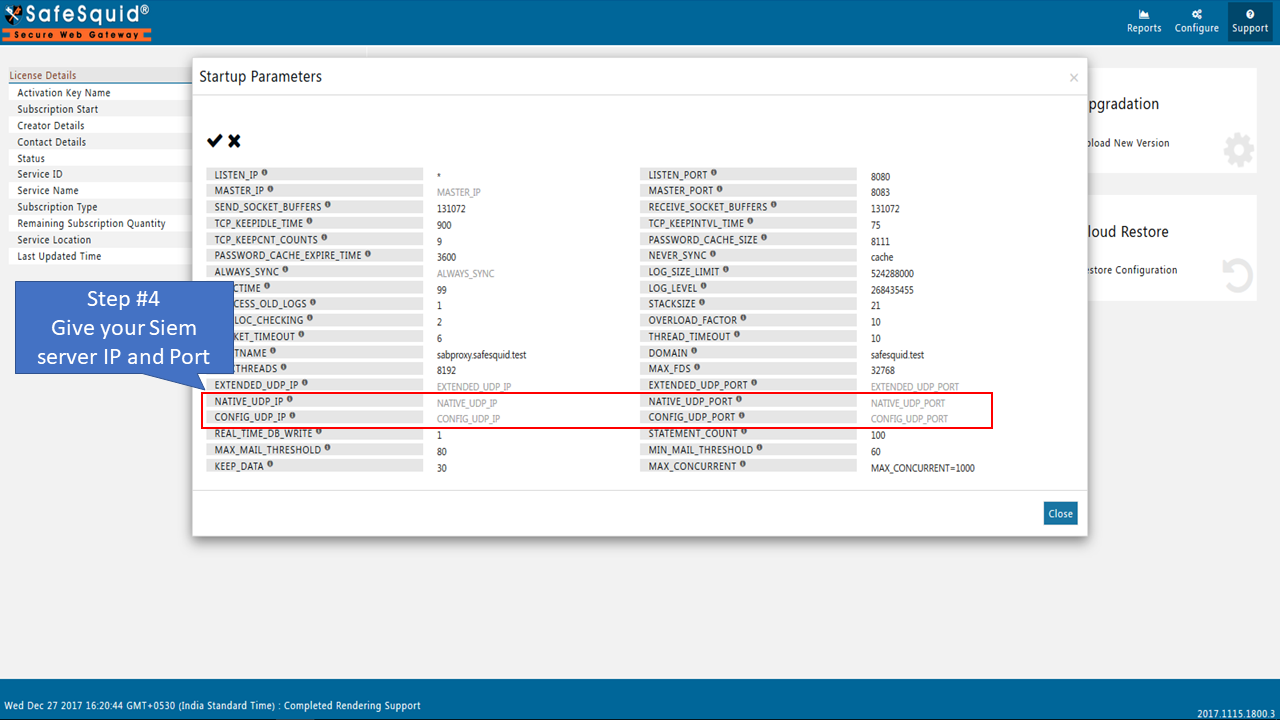

give your server IP and Port

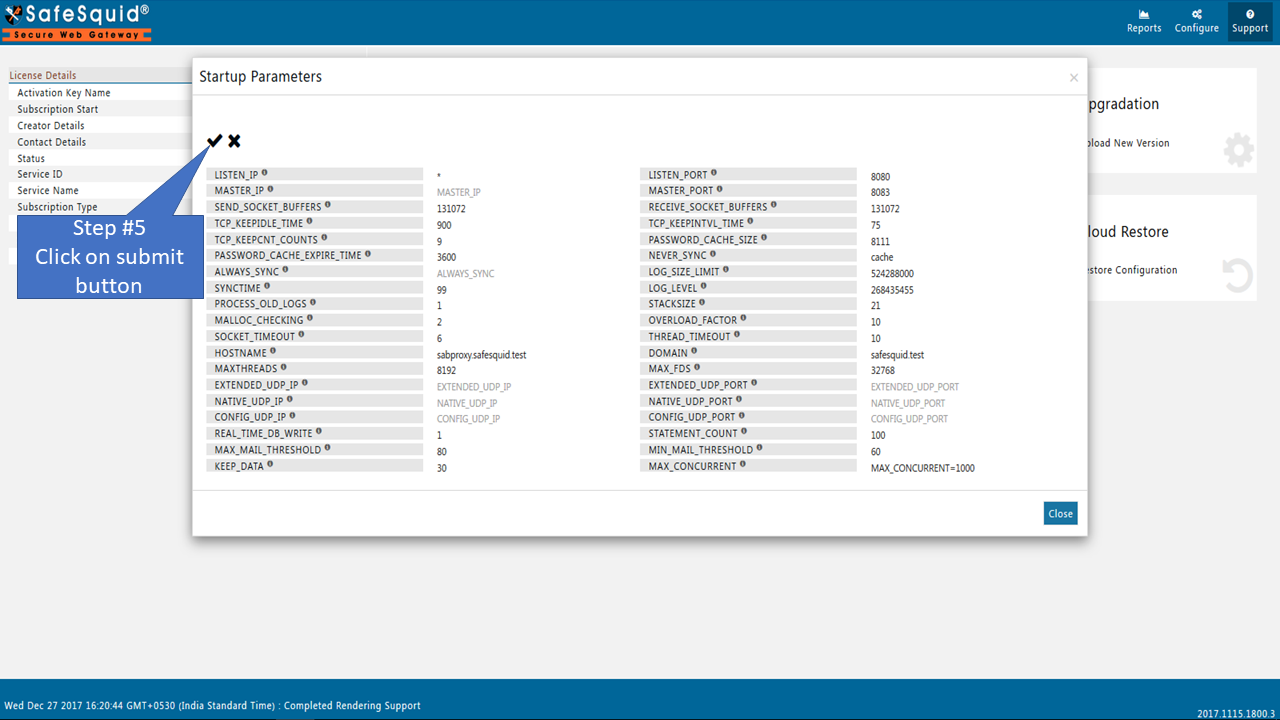

clicking on submit button

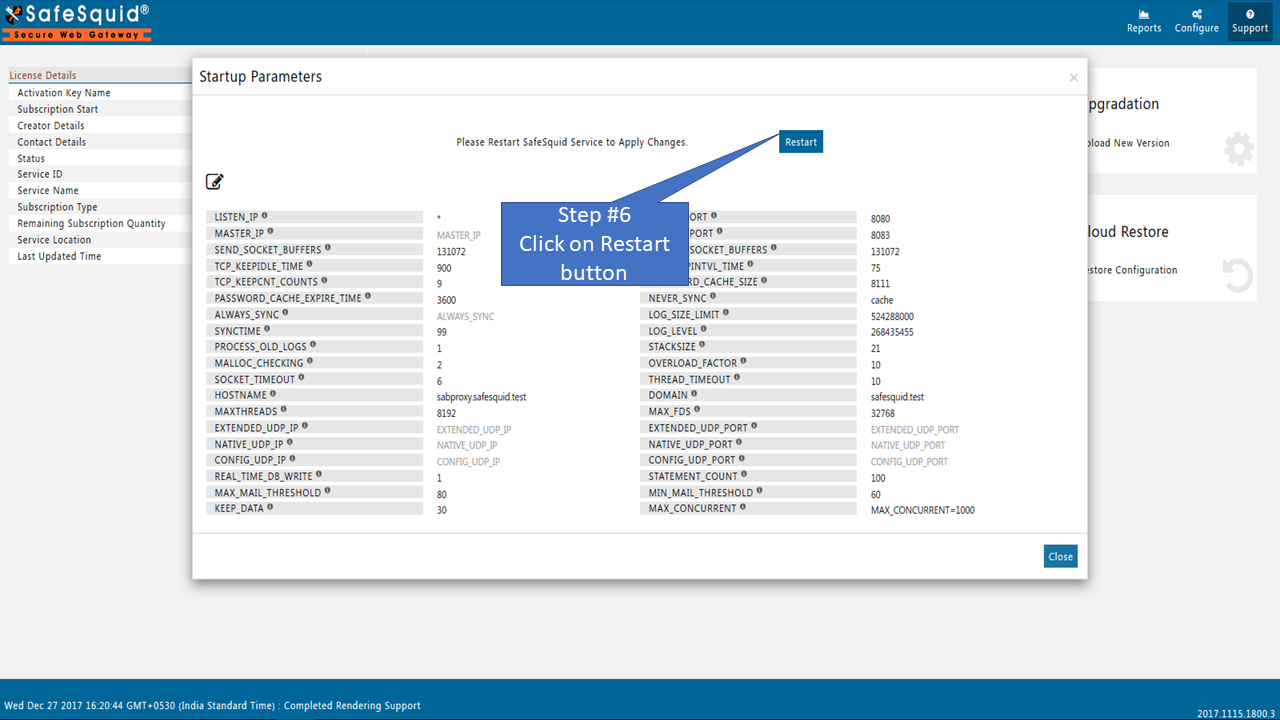

clicking on restart button
