Expert Installation

Expert Installation

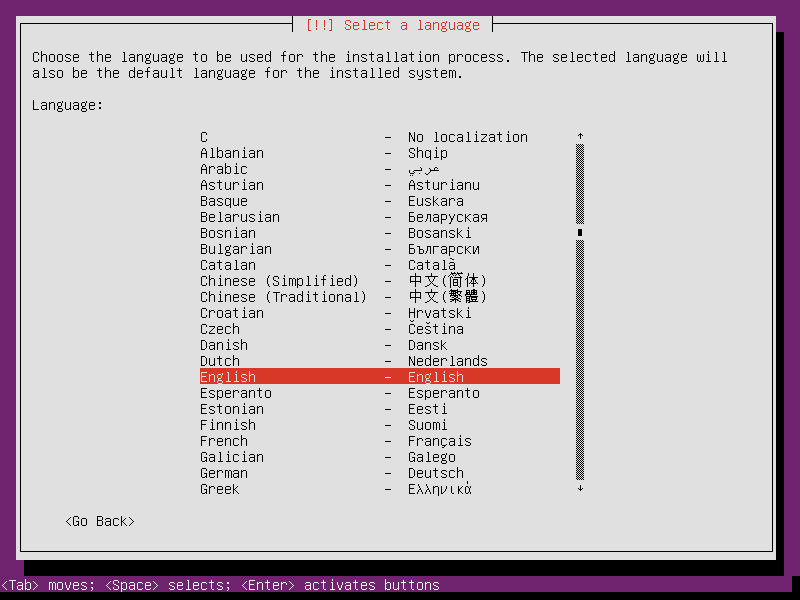

Language Selection

English is the default selected language. Change it only, if you are not very comfortable with English.
English is the default selected language. Change it only, if you are not very comfortable with English.

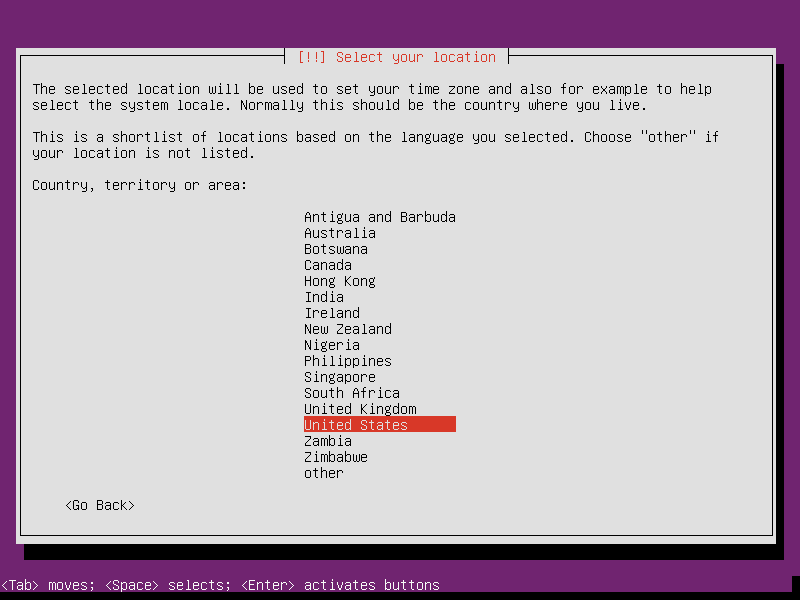

Country Selection

Select your country as the location. This selection is related to ensure correct time settings of the system.
Selecting your country as the location. This selection is related to ensure correct time settings of the system.

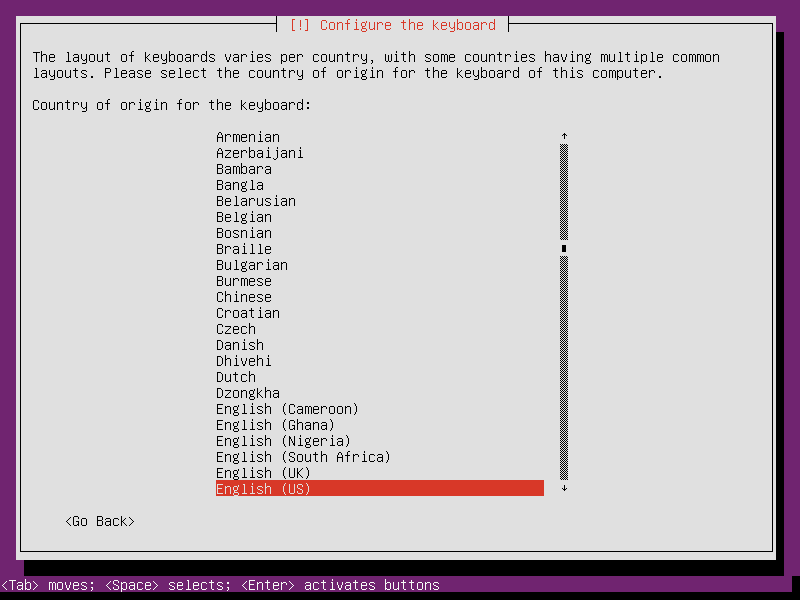

Keyboard layout Selection

Select the keyboard layout that matches the origin of the keyboard attached to the system.
Selecting the keyboard layout that matches the origin of the keyboard attached to the system.

Network Configuration

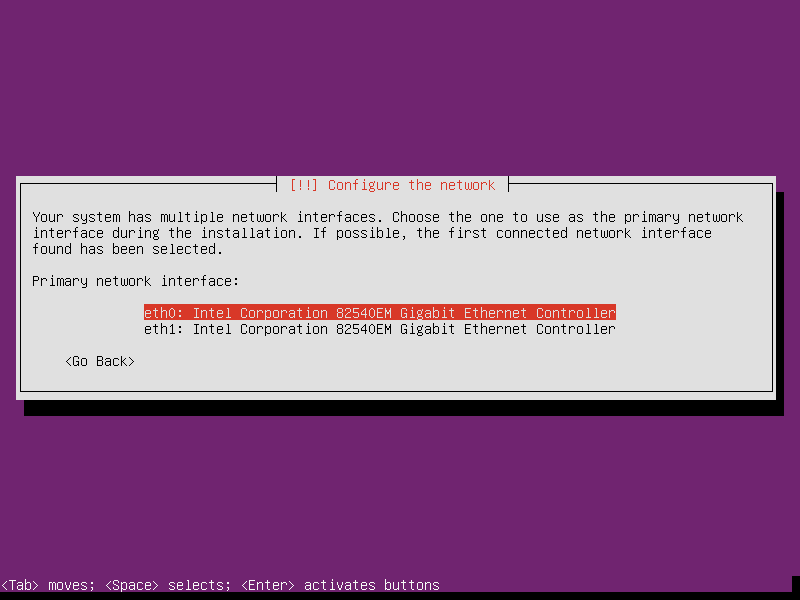

Network interface selection: This will show you the all-network interfaces present in your system. Select the interface that has Internet connectivity as the primary
Selecting the interface that has Internet connectivity as the primary

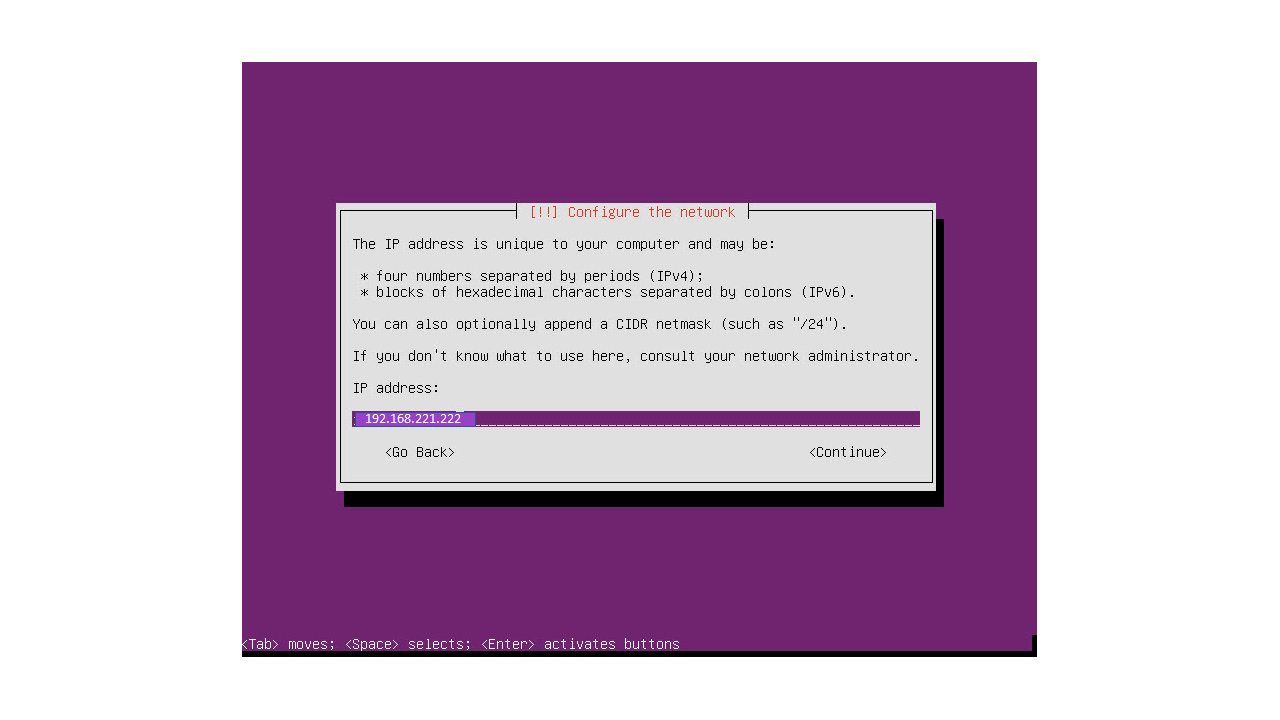

Assign IP address to the primary interface

Assigning IP address to the primary interface

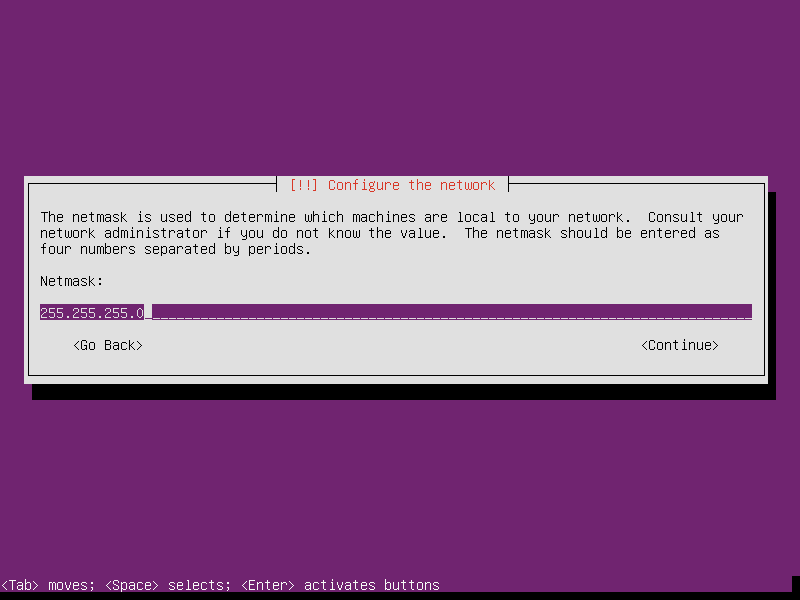

Setting up the Netmask

Setting up the Netmask

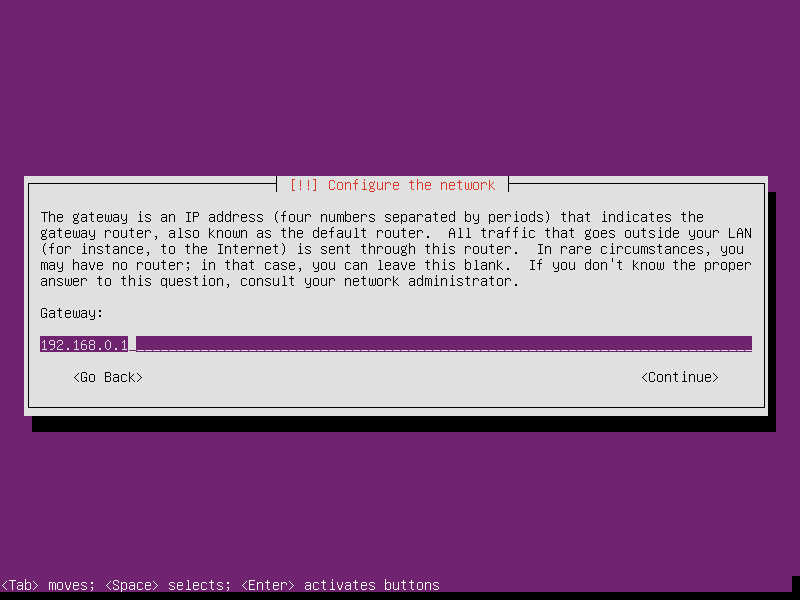

Gateway Setting

Mention your Gateway settings
Mentioning your Gateway settings

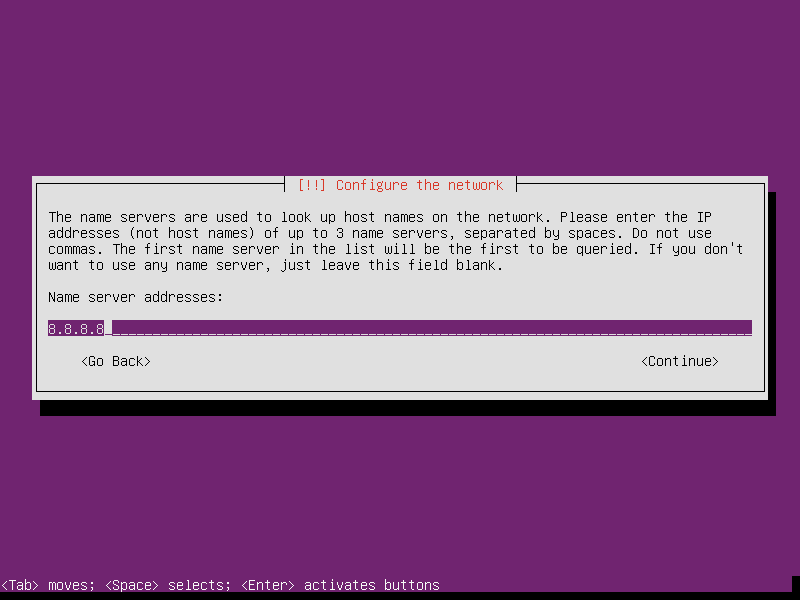

Mention DNS

Mention DNS server IP
Mentioning DNS server IP

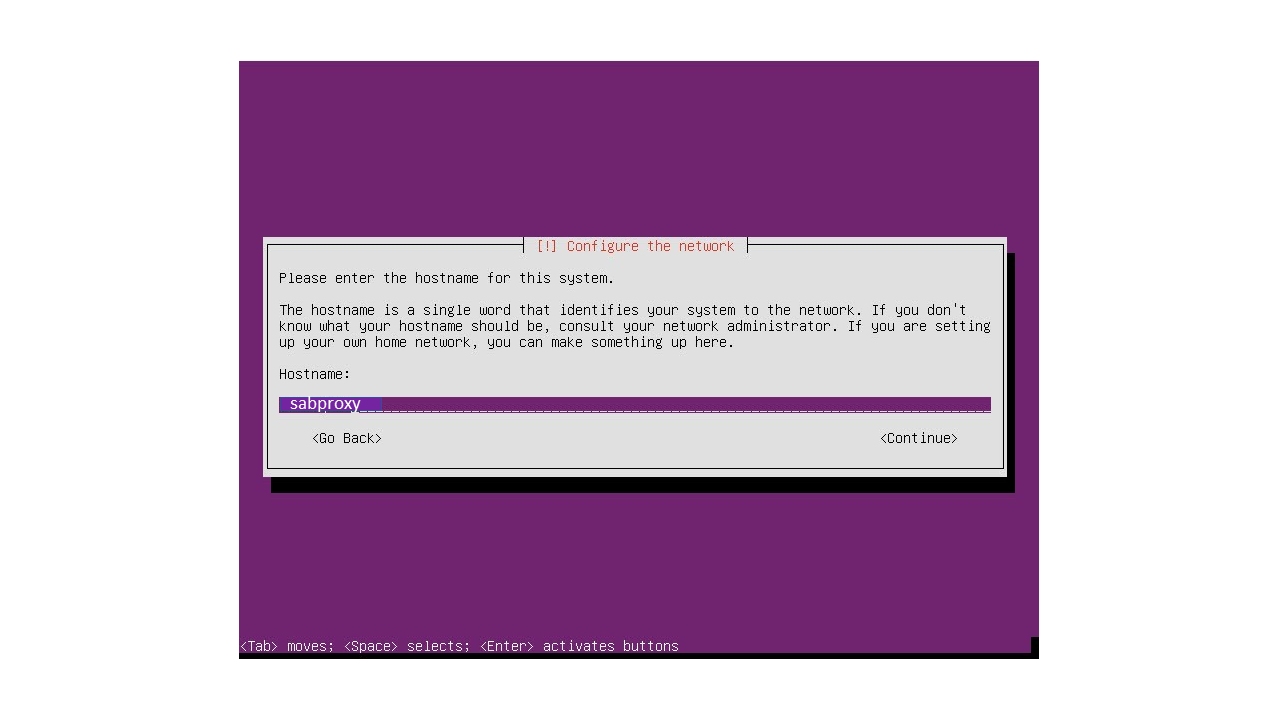

Hostname of Your Server

Setting the correct hostname of your gateway is very important, if you plan to integrate it with your active directory.
The default host name is SWG. You can give any hostname as per your choice other than safesquid.That means hostname never be safesquid.
Setting up the correct hostname of your gateway

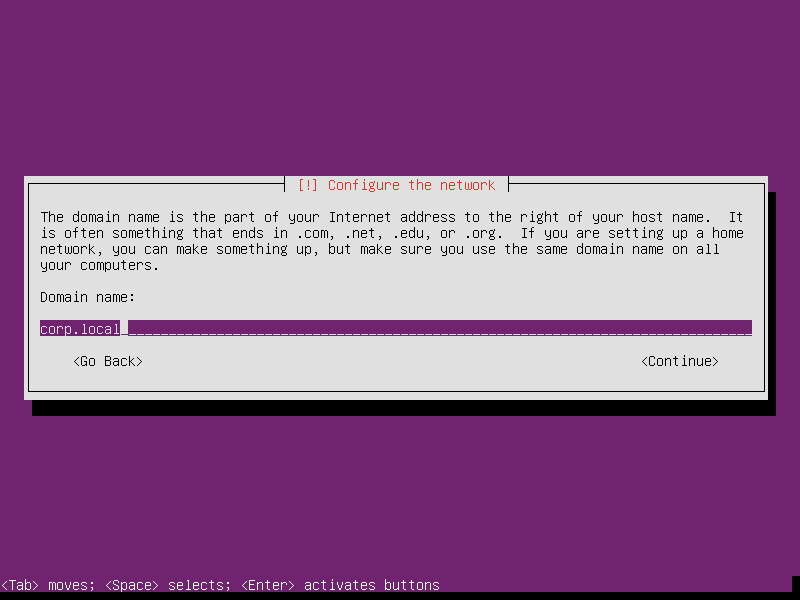

Domain name Setting

The domain name setting is also very important, if you plan to integrate it with your active directory.
setting up the domain name setting. its important if you are integrating it with your active directory

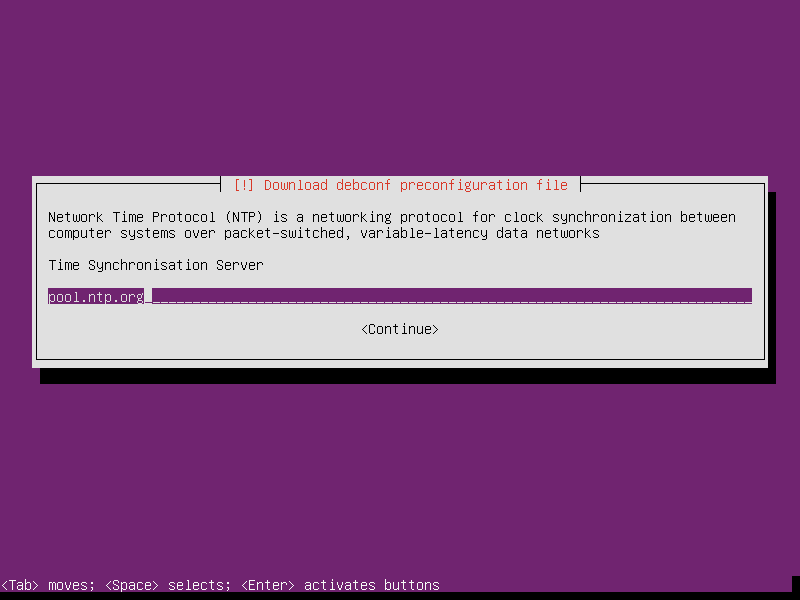

NTP server Configuration

By default, ntp server has been set to pool.ntp.org. If you have your own ntp server, then you may set to that address for clock synchronization between computer systems to sometime reference.
By default, ntp server has been set to pool.ntp.org. If you have your own ntp server, then you may set to that address for clock synchronization between computer systems to sometime reference

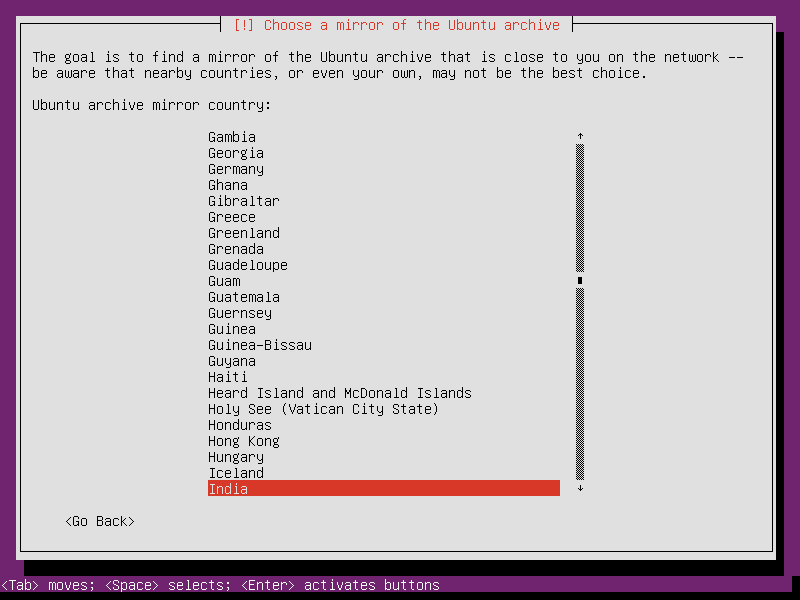

Choose a mirror of the Ubuntu archive

Select the country for ubuntu archive to download required packages
Choosing a mirror of the Ubuntu archive

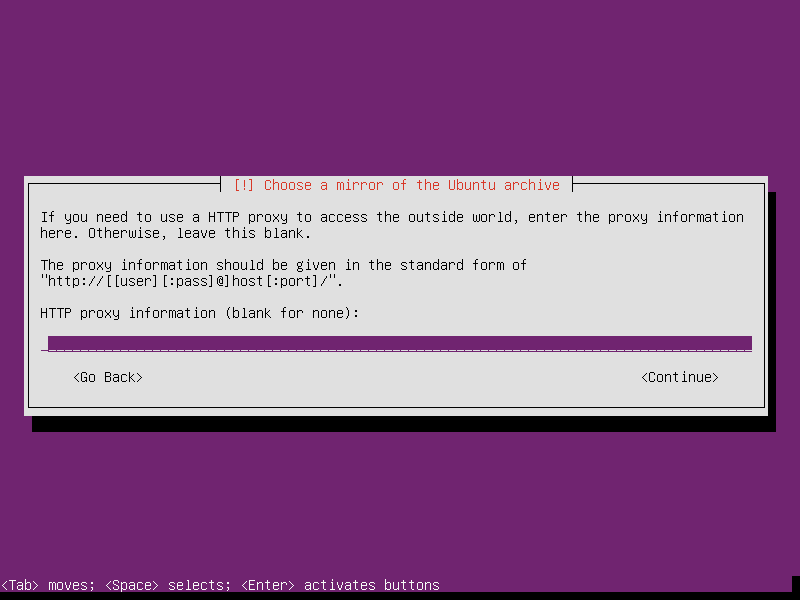

HTTP proxy Setup

This field should be blank
HTTP proxy information should be blank

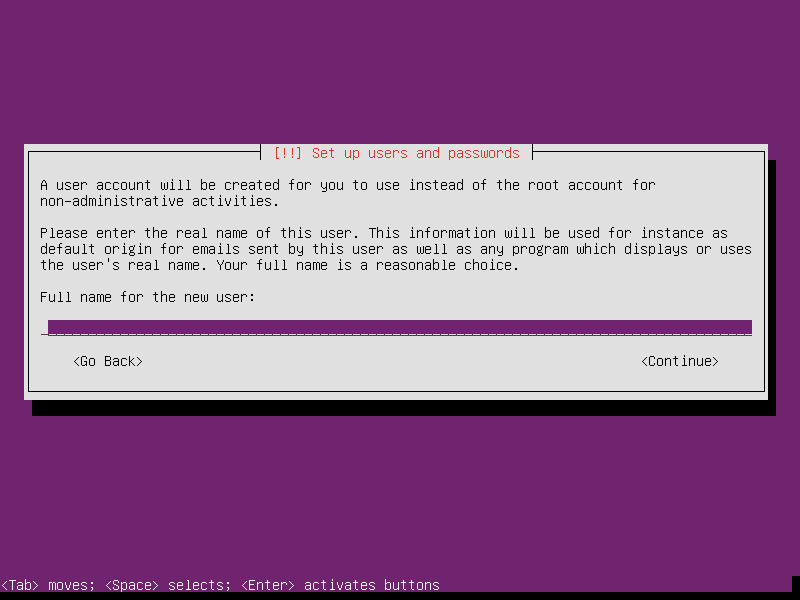

Set up users and passwords

Create a username and password. You will login with this username and password after the installation is complete.
Creating a username and password.

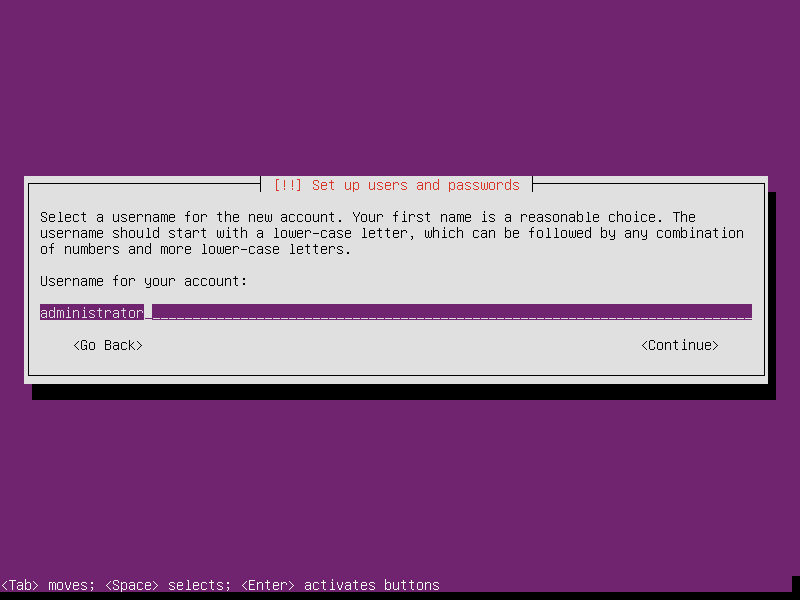

Username for your account

By default, the filed is empty, select the username for Login. Here I am given as administrator
setting up username for your account

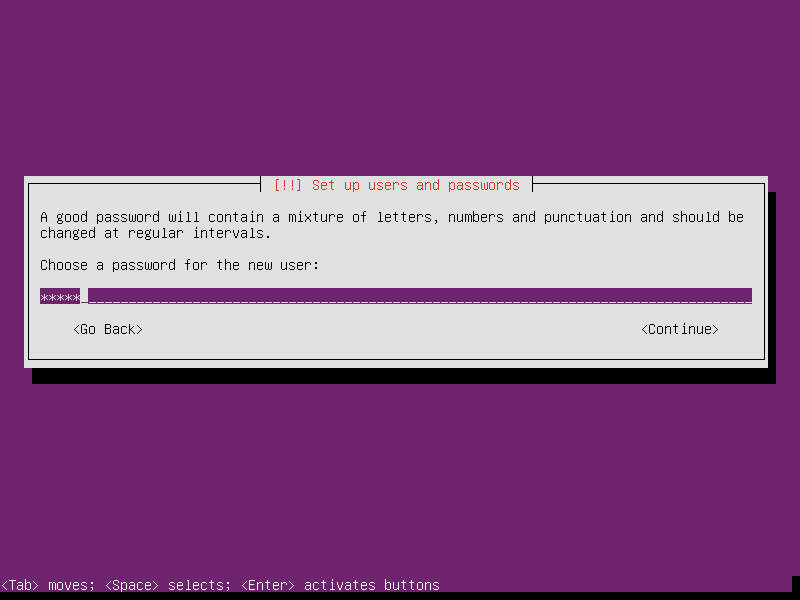

Choose password for new user

Choose the strong password the user
choosing password for the new user

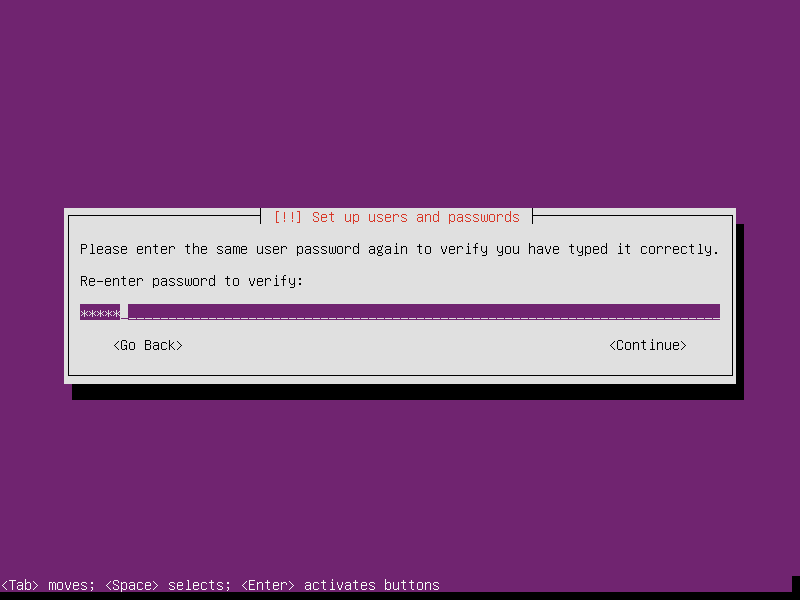

Re-enter password

confirm the password. It should match with the password given in previous step
re-entering the password

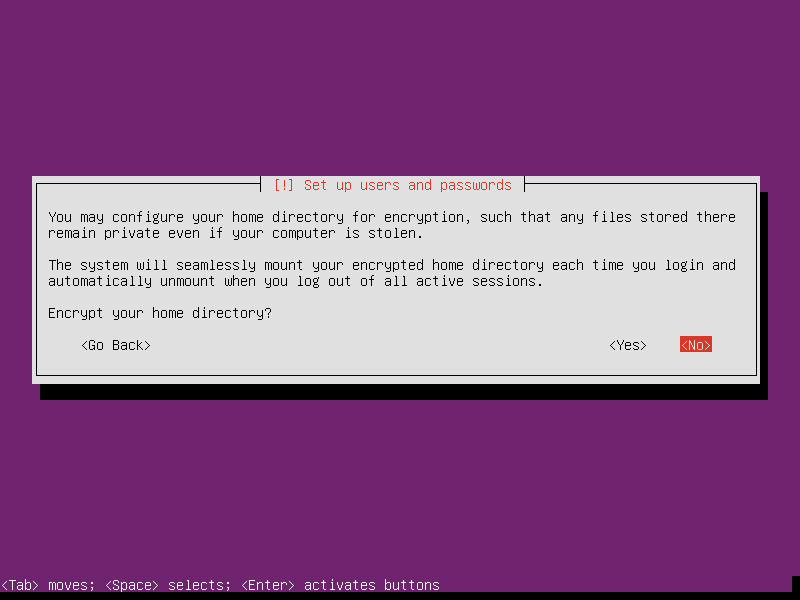

Encrypt your home directory

Select whether you want encrypt your home directory or not
Encrypting your home directory by selecting yes or no

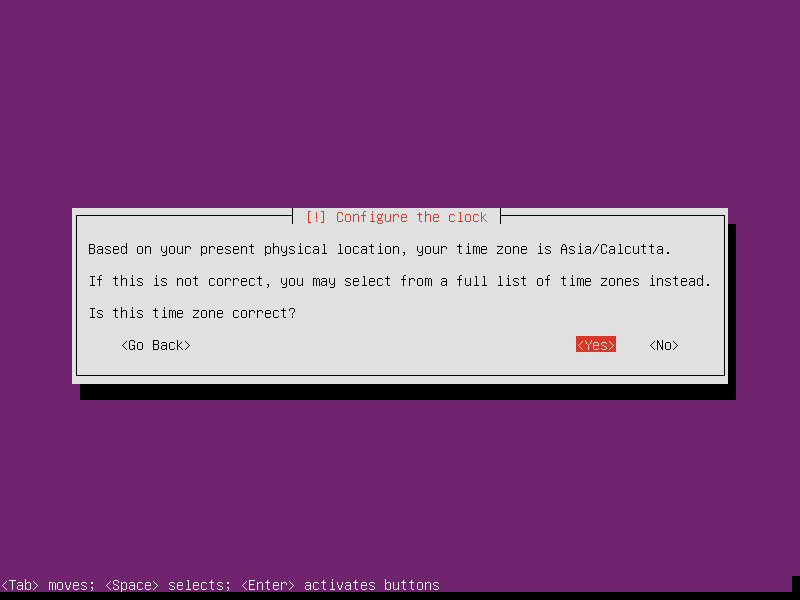

Configure the Clock

Select the clock based on the location
Configuring the Clock based on your location

Partition disks

select yes to manage partitions
Partitioning the disks

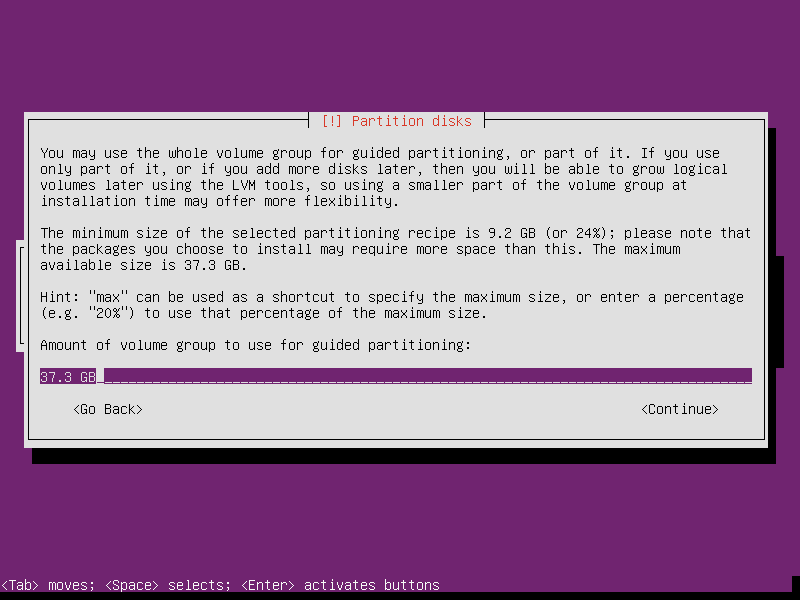

Size of Guided Partition

Specify the size of hard disk provided
creating the Size of Guided Partition

Select Method of Partition

Here you will five options
Guided partitioning
configure software raid
configure local volume manager
configure encrypted volumes
configure iscsi volumes

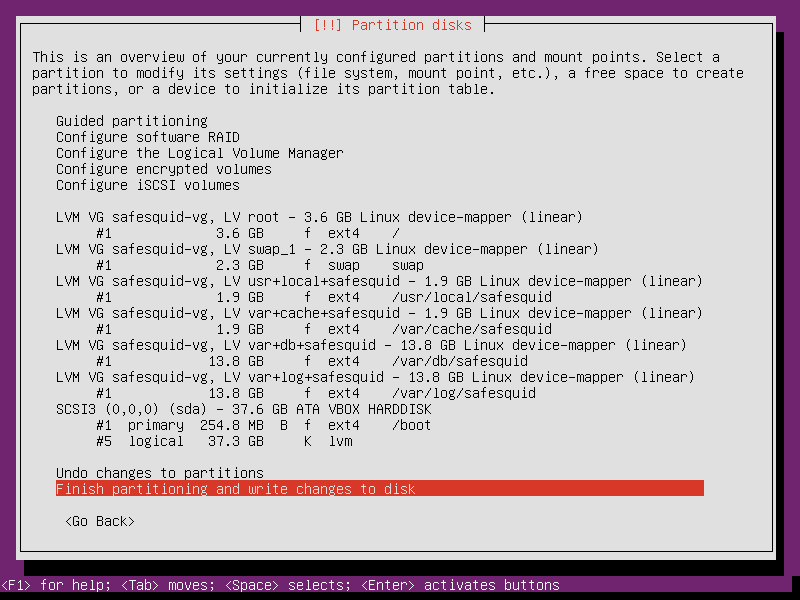

Select partition to modify its settings
If you don't want to modify default partitions then, select Finish Partitioning and write changes to the disk,
Selecting Method of Partition.If you don't want to modify default partitions then, select Finish Partitioning and write changes to the disk

List of Partitions

Here you can see list of all partitions
List of Partitions

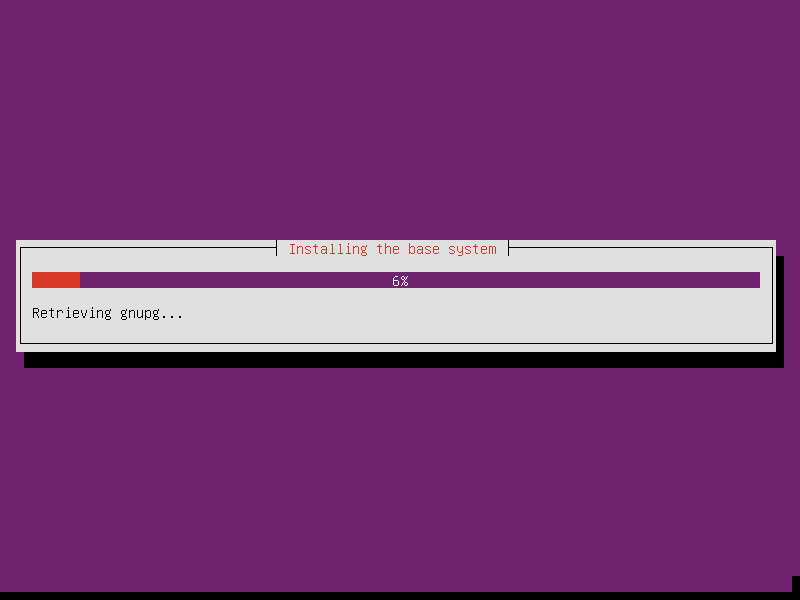

Installation of base system

It will automatically install the base system. It takes little bit of time to install completely.
Installation of base system

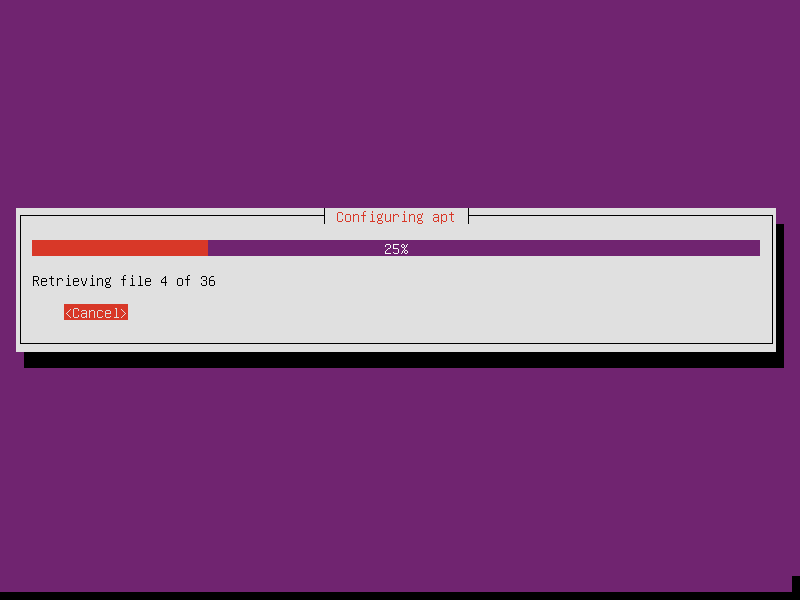

Configuring the apt

It will configure apt packages one after the other in this process.
It will configure apt packages one after the other in this process.

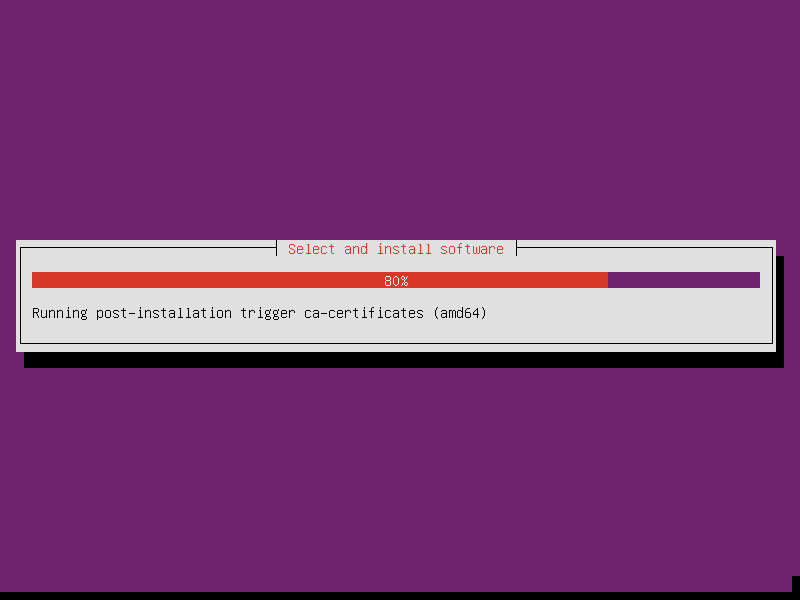

Select and install software

Here it installs the Operating System
Selecting and installing software

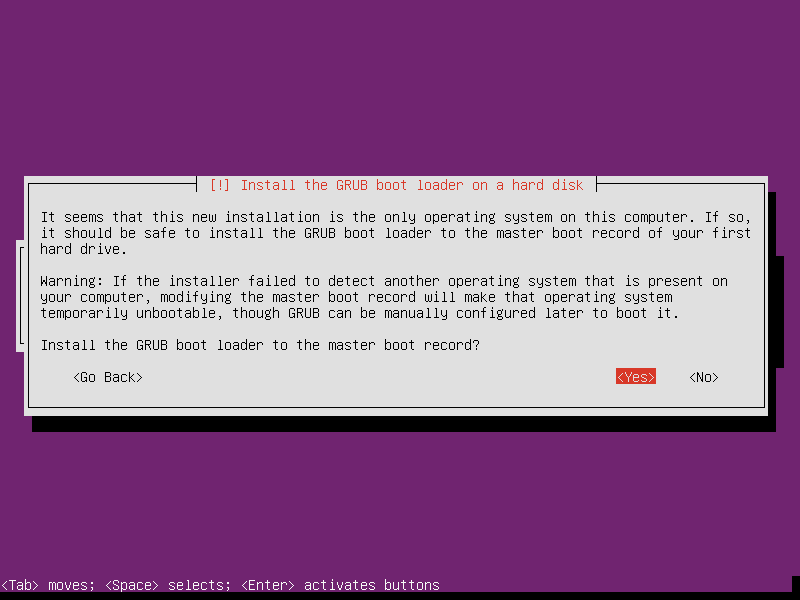

Install the GRUB boot loader

Select the Boot loader
Installing the GRUB boot loader

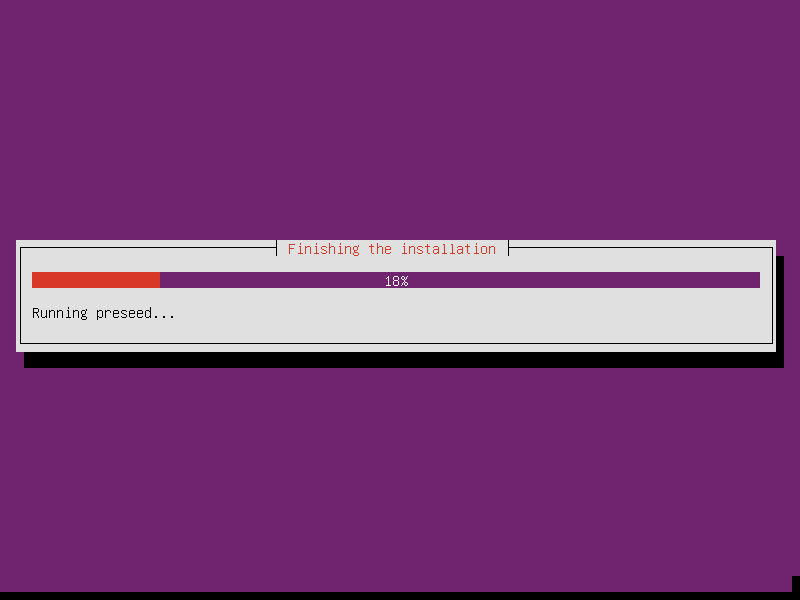

Finishing installation

Finishing the installation is the last step in installation.
Finishing the installation is the last step in installation.

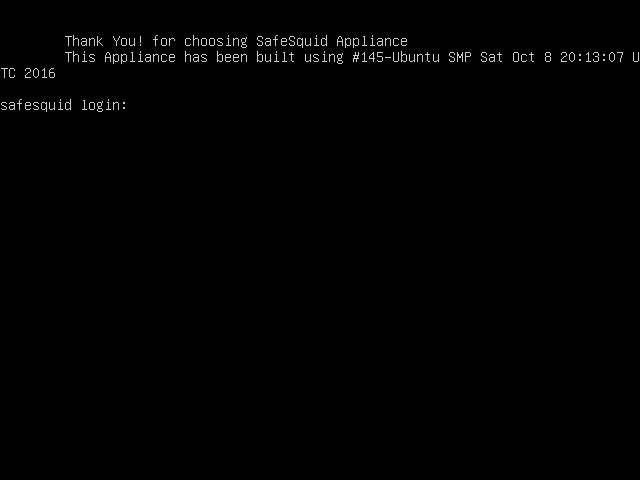

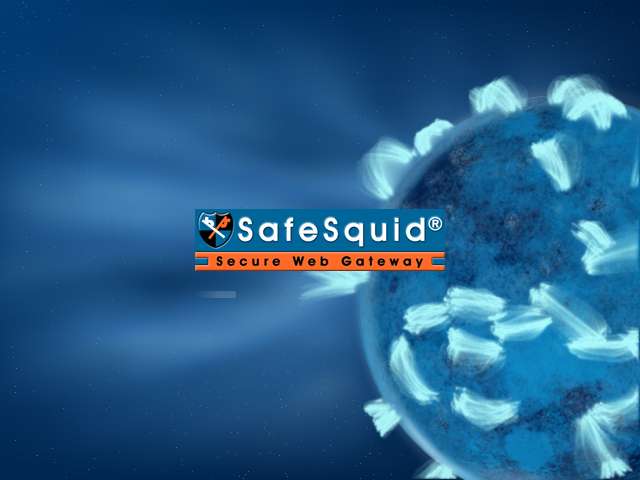

At last, the system reboots and goes through system initialization. Afterward, a welcome screen appears with Safesquid(Secure Web Gateway) screen.
safesquid Secure Web gateway screen

Login to the Server

Login to the server by using the username and password created in previous steps
Login to the server by using the username and password created in previous steps
